Shop Anchor W194/W195 Code 62 BSPP Threaded Flanges

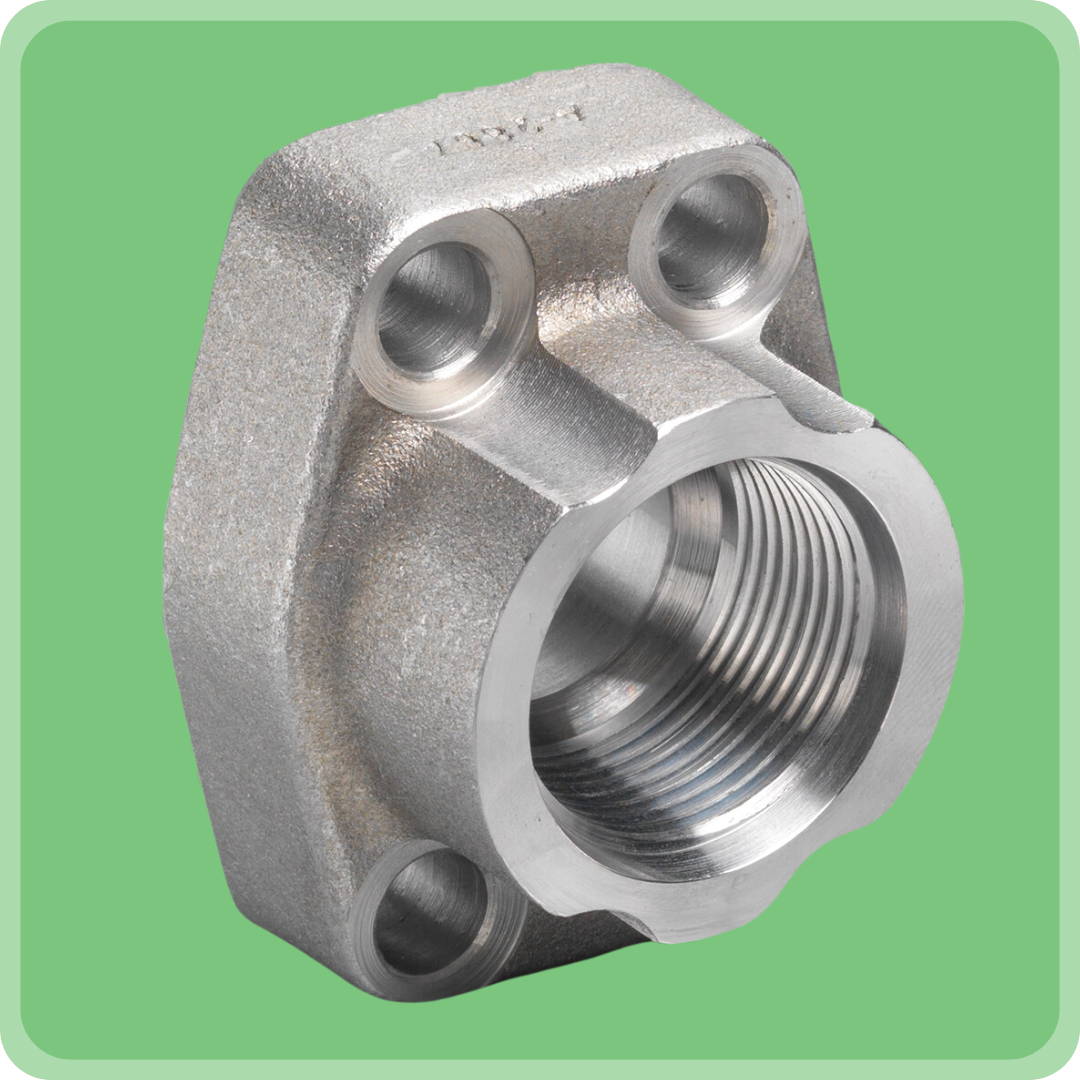

Anchor Fluid Power Series W194 and W195 BSPP Threaded Carbon Steel Flanges provide robust sealing solutions for hydraulic systems. The Series W194 features a Code 62 design with an O-ring groove, which ensures a leak-proof seal, while the Series W195 has a Code 62 smooth flat face for a reliable connection. Both flanges are made from high-quality carbon steel and are designed for use with British Standard Parallel Pipe (BSPP) threads, catering to high-pressure applications.
Style:
Port Size:
Body Material:
View the Catalog:
View the Collection:
Anchor W194/W195 Code 62 BSPP Threaded Flanges
Click on the model number in the chart below to view that item.
| Product SKU | Material | Flange Type | Pressure Rating | Flange Size | Female BSPP Size | Flange Face Style | Lead Time | Price |
|---|---|---|---|---|---|---|---|---|
| W194-8-8U | Carbon Steel | Code 62 | 6000 | 0.5 (1/2") | 0.5 (1/2") | With O-Ring Groove | 5 Days | $78.99 |
| W195-8-8 | Carbon Steel | Code 62 | 6000 | 0.5 (1/2") | 0.5 (1/2") | Smooth Flat Face | 5 Days | $71.99 |
| W194-12-12U | Carbon Steel | Code 62 | 6000 | 0.75 (3/4") | 0.75 (3/4") | With O-Ring Groove | 5 Days | $81.99 |
| W195-12-12 | Carbon Steel | Code 62 | 6000 | 0.75 (3/4") | 0.75 (3/4") | Smooth Flat Face | 5 Days | $73.99 |
| W194-16-16U | Carbon Steel | Code 62 | 6000 | 1" | 1" | With O-Ring Groove | 5 Days | $90.99 |
| W195-16-16 | Carbon Steel | Code 62 | 6000 | 1" | 1" | Smooth Flat Face | 5 Days | $78.99 |
| W194-20-20U | Carbon Steel | Code 62 | 6000 | 1.25 (1-1/4") | 1.25 (1-1/4") | With O-Ring Groove | 5 Days | $106.99 |
| W195-20-20 | Carbon Steel | Code 62 | 6000 | 1.25 (1-1/4") | 1.25 (1-1/4") | Smooth Flat Face | 5 Days | $92.99 |
| W194-24-24U | Carbon Steel | Code 62 | 6000 | 1.5 (1-1/2") | 1.5 (1-1/2") | With O-Ring Groove | 5 Days | $135.99 |
| W195-24-24 | Carbon Steel | Code 62 | 6000 | 1.5 (1-1/2") | 1.5 (1-1/2") | Smooth Flat Face | 5 Days | $114.99 |
| W194-32-32U | Carbon Steel | Code 62 | 6000 | 2" | 2" | With O-Ring Groove | 5 Days | $197.99 |
| W195-32-32 | Carbon Steel | Code 62 | 6000 | 2" | 2" | Smooth Flat Face | 5 Days | $158.99 |
Technical Specs
