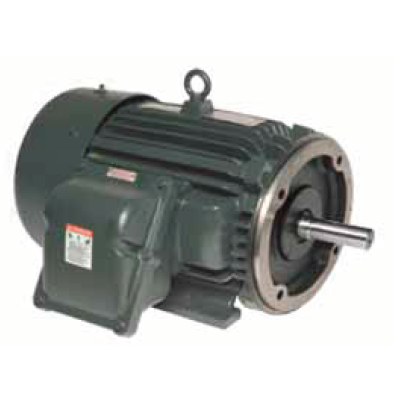

0204XPEA44A-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 20HP, 1800RPM, 230/460V, 256TC Frame
Roll over image to zoom in Click on image to zoom
0204XPEA44A-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 20HP, 1800RPM, 230/460V, 256TC Frame

0204XPEA44A-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 20HP, 1800RPM, 230/460V, 256TC Frame

Save $1,629.01
ToshibaSKU: 0204XPEA44A-P
1-3 Days
1
Price:
$2,439.99 $4,069.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 1
Factory Location Houston, Texas
Horsepower 20
Rpm 1800
Motor Voltage 230/460
Electric Motor Frame Size 256TC
Electric Motor Type EQP GLOBAL XP C-FACE FOOTLESS
Fl Amps 50/25
Nominal Fl Efficiency 93.3
Height 14.9
Length 25.1
Width 12.7
Weight 423

Description

Toshiba's EQP Global XP C-Face footed explosion proof motors are equipped to contain an explosion that may occur inside a motor, as well as prevent explosive gases and vapors from being released into the environment. Its robust construction meets the UL and CSA listed Hazardous Locations requirements. This product line is designed for use in Class I, Division 1, Group D, and Class II, Division 1, Groups E, F, and G and carries a temperature code rating of T3C (160°C). It is ideal for indoor and outdoor use and offers the performance and reliability the motor industry has come to expect from Toshiba, which makes the EQP Global® XP motor the clear choice for your toughest environments and applications.
