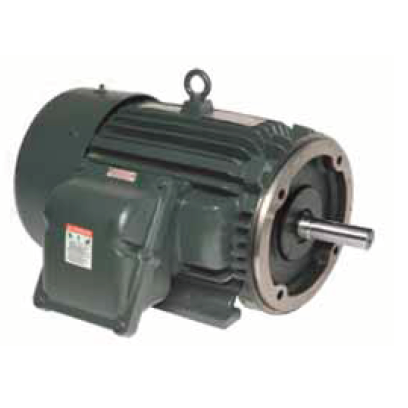

0252XPEA42B-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 25HP, 3600RPM, 230/460V, 284TSC Frame
Roll over image to zoom in Click on image to zoom
0252XPEA42B-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 25HP, 3600RPM, 230/460V, 284TSC Frame

0252XPEA42B-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 25HP, 3600RPM, 230/460V, 284TSC Frame

Save $1,862.01
ToshibaSKU: 0252XPEA42B-P
1-3 Days
11
Price:
$2,738.99 $4,601.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 11
Factory Location Houston, Texas
Horsepower 25
Rpm 3600
Motor Voltage 230/460
Electric Motor Frame Size 284TSC
Electric Motor Type EQP GLOBAL XP C-FACE FOOTED
Fl Amps 91.7
Nominal Fl Efficiency 91.7
Height 17.5
Length 27
Width 15.4
Weight 560

Description

Toshiba's EQP Global XP C-Face footed explosion proof motors are equipped to contain an explosion that may occur inside a motor, as well as prevent explosive gases and vapors from being released into the environment. Its robust construction meets the UL and CSA listed Hazardous Locations requirements. This product line is designed for use in Class I, Division 1, Group D, and Class II, Division 1, Groups E, F, and G and carries a temperature code rating of T3C (160°C). It is ideal for indoor and outdoor use and offers the performance and reliability the motor industry has come to expect from Toshiba, which makes the EQP Global® XP motor the clear choice for your toughest environments and applications.
