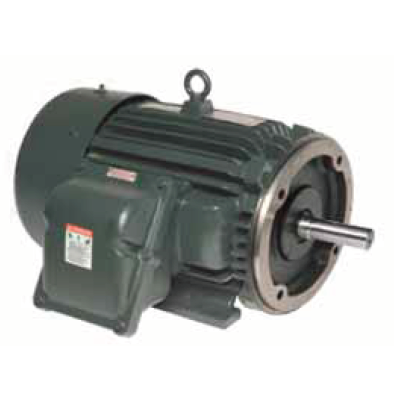

0254XPEA42A-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 25HP, 1800RPM, 230/460V, 284TC Frame
Roll over image to zoom in Click on image to zoom
0254XPEA42A-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 25HP, 1800RPM, 230/460V, 284TC Frame

0254XPEA42A-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 25HP, 1800RPM, 230/460V, 284TC Frame

Save $2,286.01
ToshibaSKU: 0254XPEA42A-P
1-3 Days
17
Price:
$2,870.99 $5,157.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 17
Factory Location Houston, Texas
Horsepower 25
Rpm 1800
Motor Voltage 230/460
Electric Motor Frame Size 284TC
Electric Motor Type EQP GLOBAL XP C-FACE FOOTED
Fl Amps 62/31
Nominal Fl Efficiency 93.8
Height 16.5
Length 28.4
Width 15.4
Weight 604

Description

Toshiba's EQP Global XP C-Face footed explosion proof motors are equipped to contain an explosion that may occur inside a motor, as well as prevent explosive gases and vapors from being released into the environment. Its robust construction meets the UL and CSA listed Hazardous Locations requirements. This product line is designed for use in Class I, Division 1, Group D, and Class II, Division 1, Groups E, F, and G and carries a temperature code rating of T3C (160°C). It is ideal for indoor and outdoor use and offers the performance and reliability the motor industry has come to expect from Toshiba, which makes the EQP Global® XP motor the clear choice for your toughest environments and applications.
