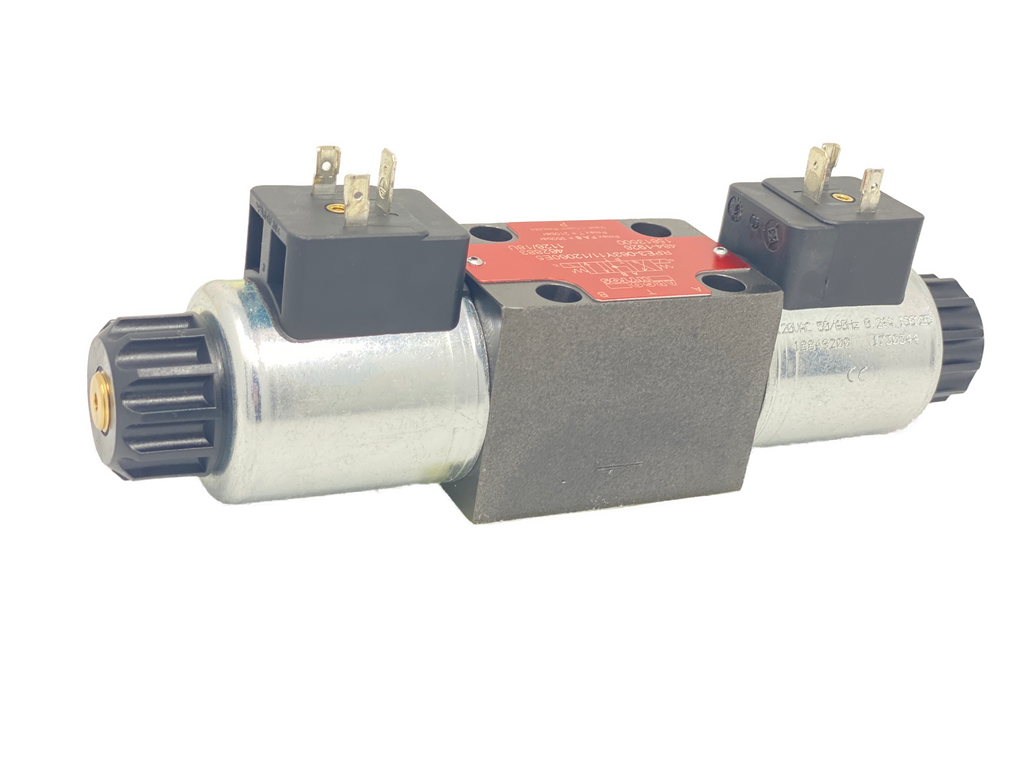

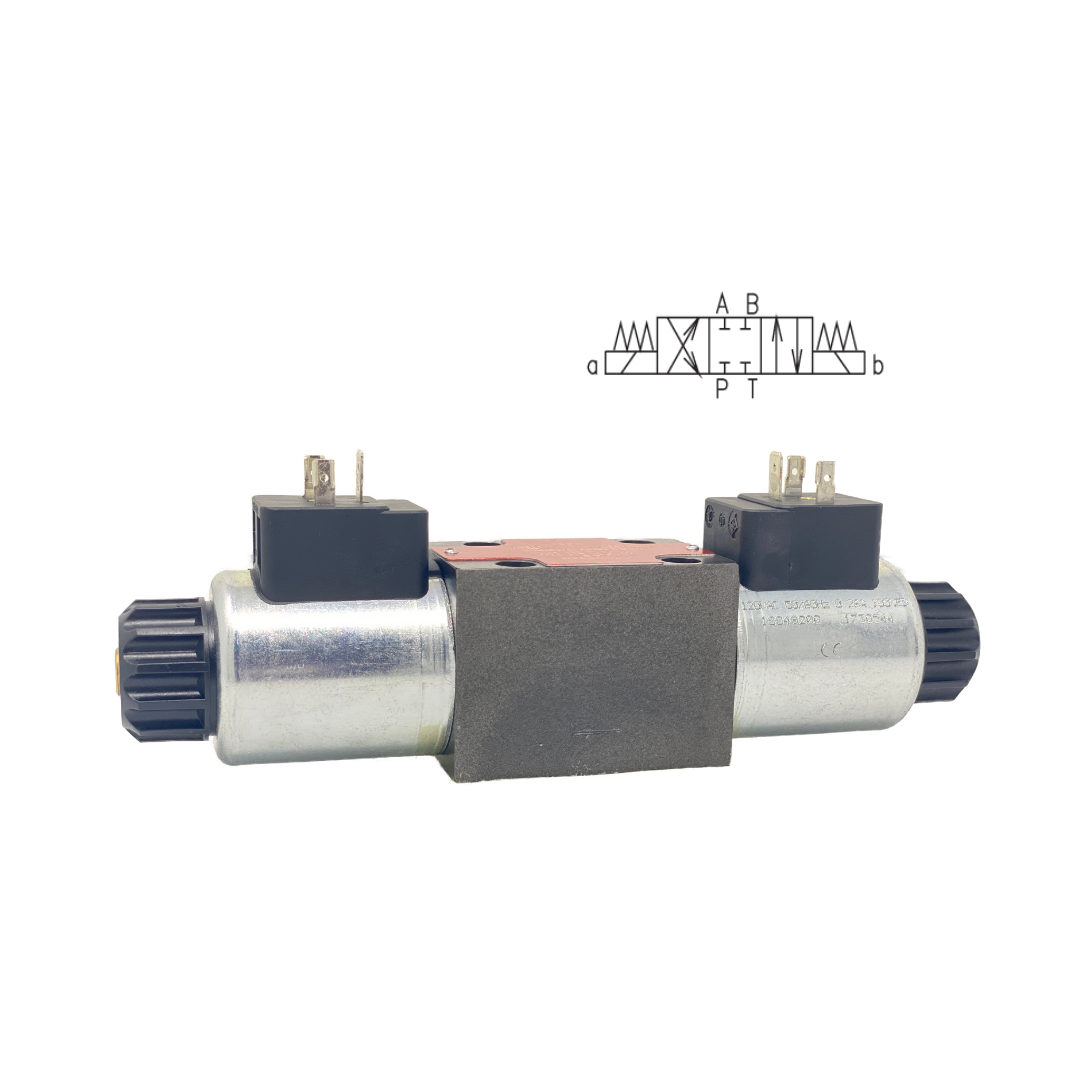

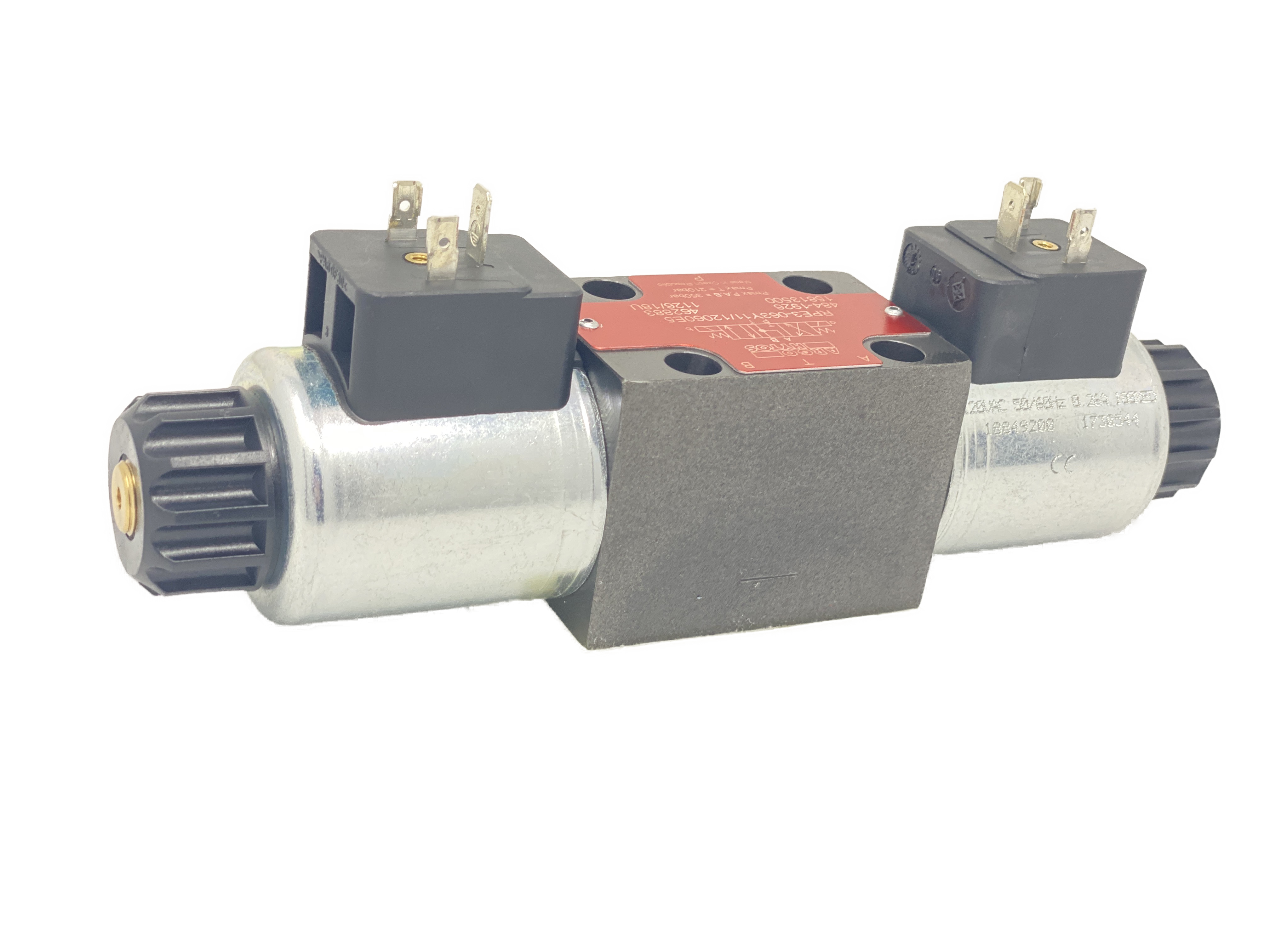

RPE3-063Z11/12060E5 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 120 VAC, DIN, Spring Return, Cylinder Spool
RPE3-063Z11/12060E5 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 120 VAC, DIN, Spring Return, Cylinder Spool
RPE3-063Z11/12060E5 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 120 VAC, DIN, Spring Return, Cylinder Spool
Roll over image to zoom in Click on image to zoom
RPE3-063Z11/12060E5 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 120 VAC, DIN, Spring Return, Cylinder SpoolRPE3-063Z11/12060E5 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 120 VAC, DIN, Spring Return, Cylinder SpoolRPE3-063Z11/12060E5 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 120 VAC, DIN, Spring Return, Cylinder Spool

RPE3-063Z11/12060E5 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 120 VAC, DIN, Spring Return, Cylinder Spool

Save $16.51
Argo-HytosSKU: 15813700
Same Day
30
0
Price:
$173.99 $190.50

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D03 (NG6)
Flow Rating 21
Pressure Rating 5100
Voltage 120 VAC
Actuation Type Solenoid Operated
Solenoid Electrical Connection DIN Connector EN 175301-803-A
Spool Configuration Cylinder Spool, All Ports Blocked in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Czech Republic
Height 5.94
Length 10.66
Width 1.79
Weight 4.85

Description

Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03). High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop. Five chamber housing design with reduced hydraulic power dependence on fluid viscosity. The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge. Wide range of solenoid electrical terminal versions, interchangeable spools and manual overrides available. The coil is fastened to the core tube with a retaining nut and can be rotated by 360-degrees to suit the available space. In the standard version, the valve housing is phosphated.
