Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock |
| Factory Stock | 0 |
| Factory Location | Bowling Green, Ohio |
| Valve Type | Modular (Stacking) Valve |
| Adjustment Type | Allen Key Screw |
| Valve Interface | D03 (NG6) |
| Flow Rating | 11 |
| Pressure Rating | 4600 |
| Way | 3-Way |
| Height | 1.77 |
| Length | 4.86 |
| Width | 1.57 |
| Weight | 2.2 |
Description

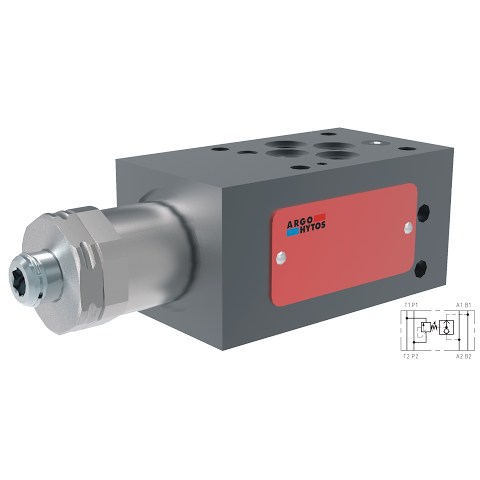

The Argo-Hytos TV2-063/M is a normally closed, direct-acting, spring loaded 3-way pressure compensator valve in the form of a sandwich plate. It consists of a body, a 3-way screw-in cartridge compensator TV2-063/S, and a load shuttle valve. Ports A & B are always connected through the load shuttle valve with the spring chamber of the pressure compensator cartridge valve. Typically, 3-way pressure compensators are used as meter-in regulators in parallel with flow restrictor valves when raising or lowering variable loads at the same velocity is required. The pressure compensator valve then keeps the pressure difference between its pressure inlet and the pressure at the outlet port of the regulated flow valve nearly constant. When pressure exceeds the pre-set value, the pressure compensator opens, and releases excessive flow from the main circuit to Port B. If there is no flow demand from the consumer, the compensator allows the oil to flow back to tank and therefore vents the whole system. This prevents the hydraulic pump from overheating in load sensing circuits with a fixed displacement pump.
