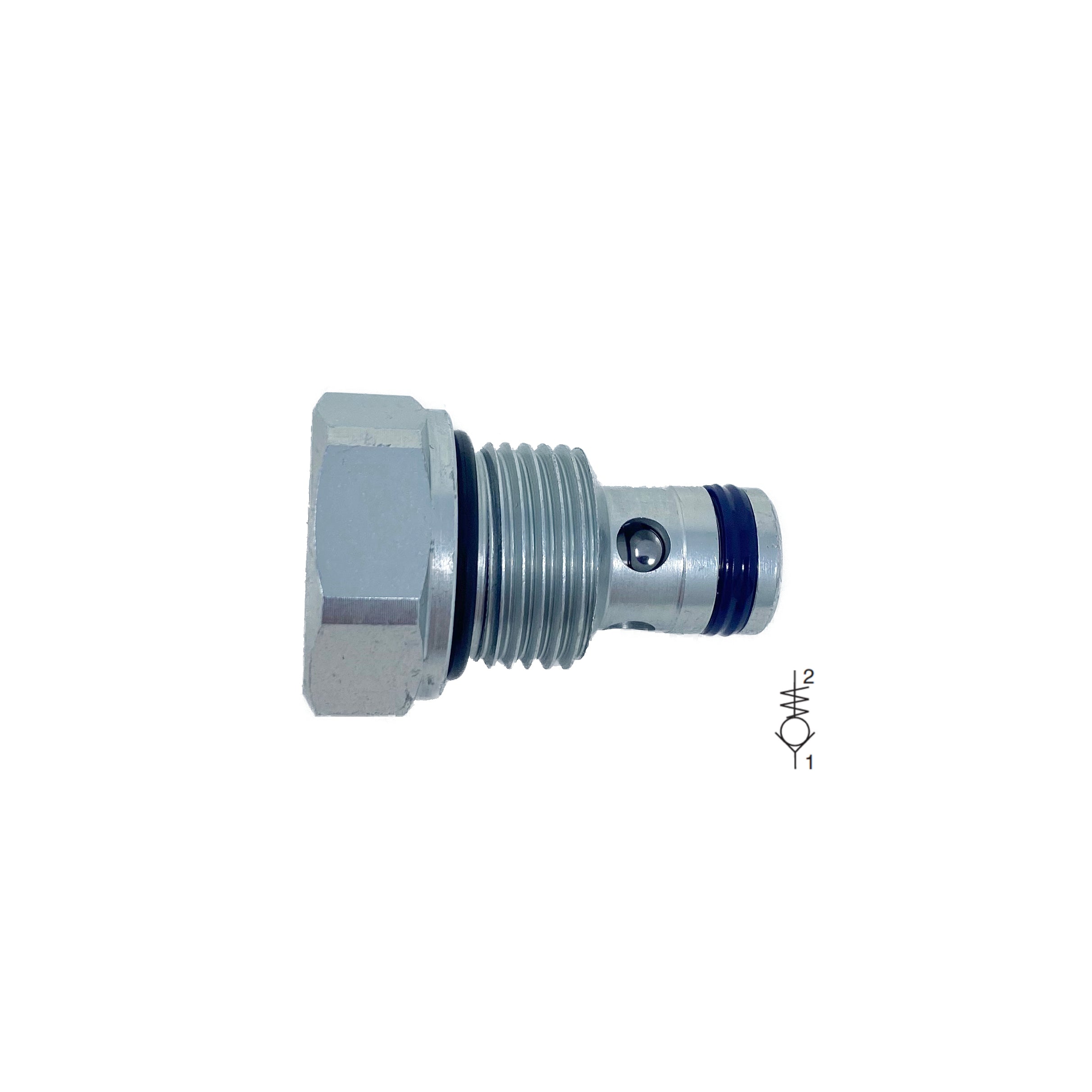

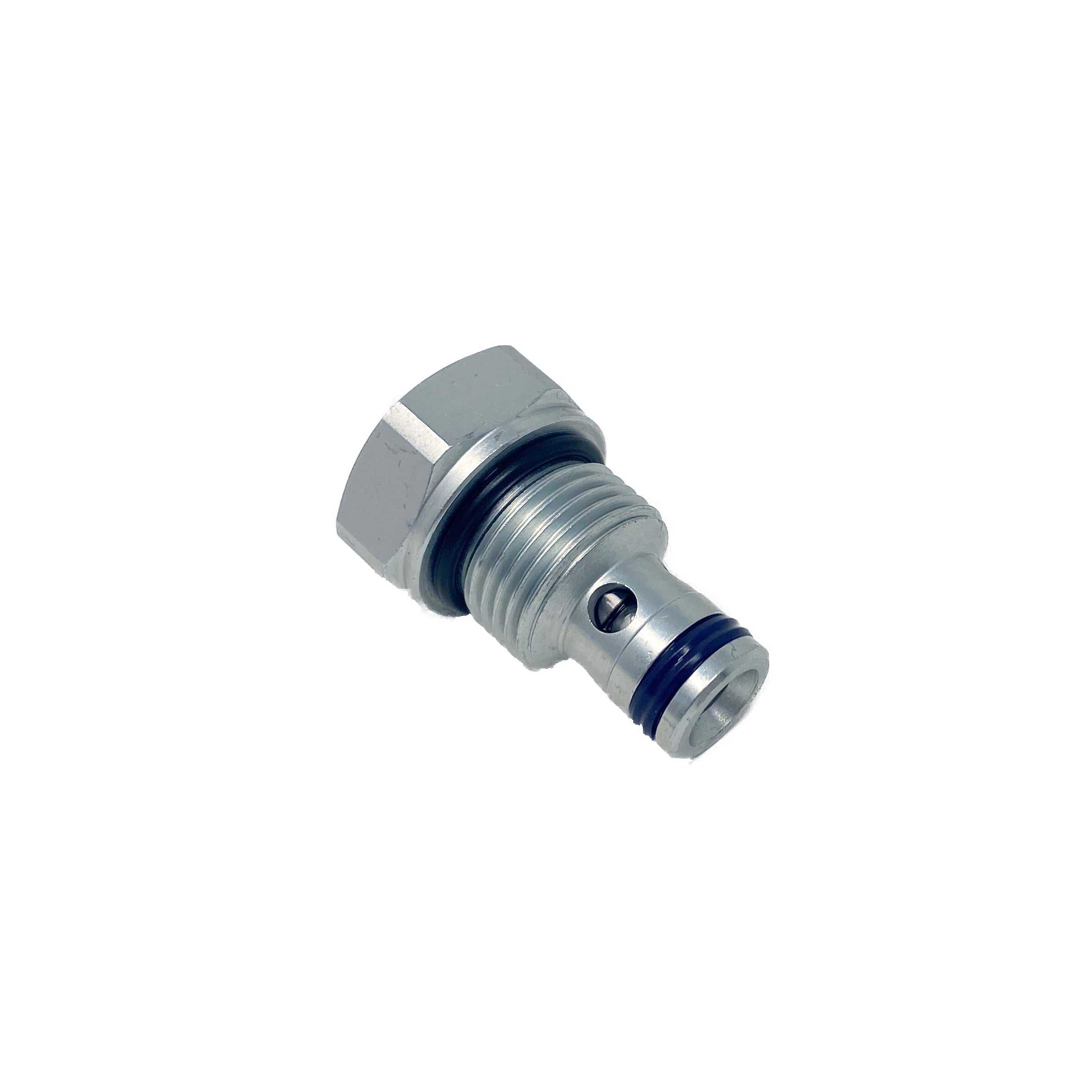

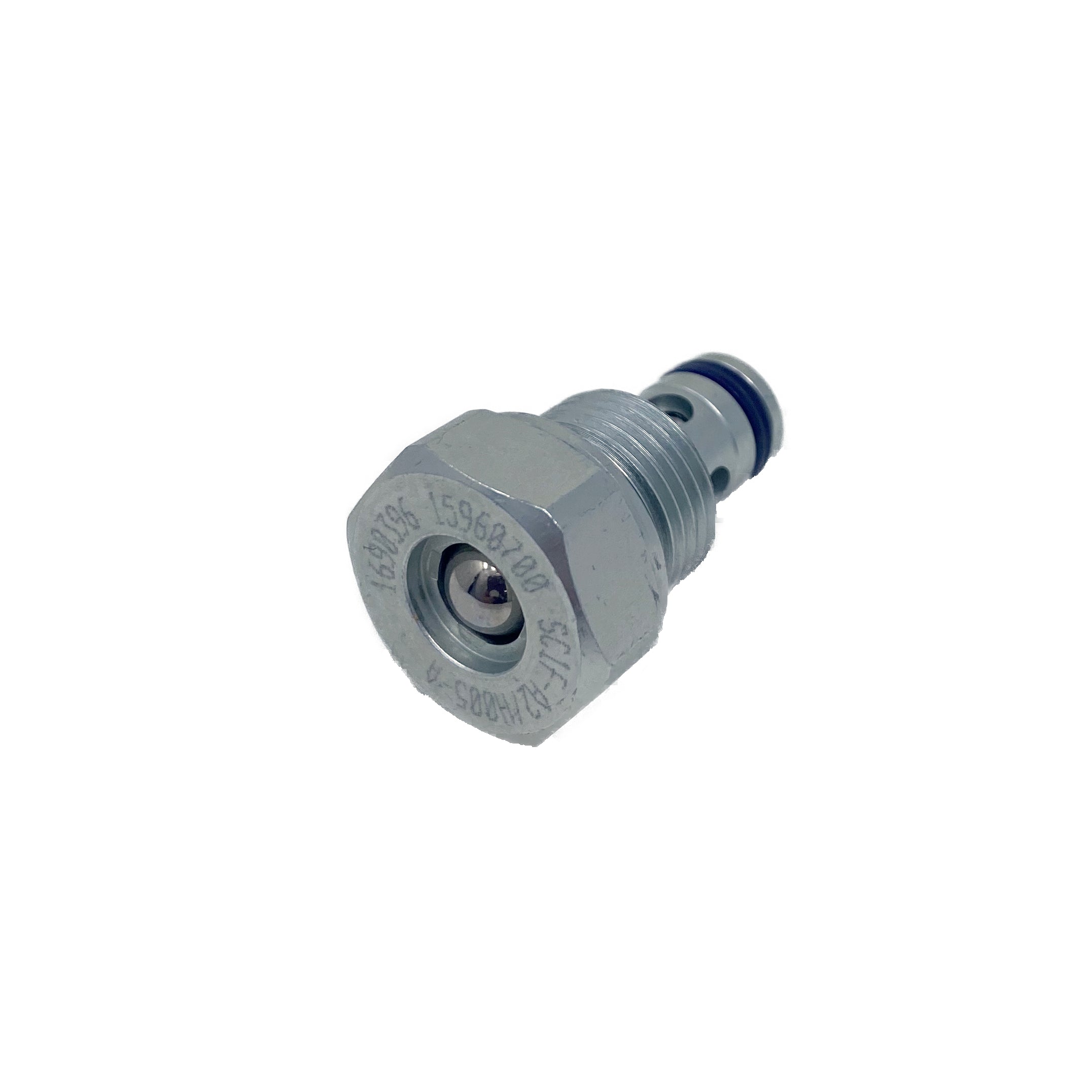

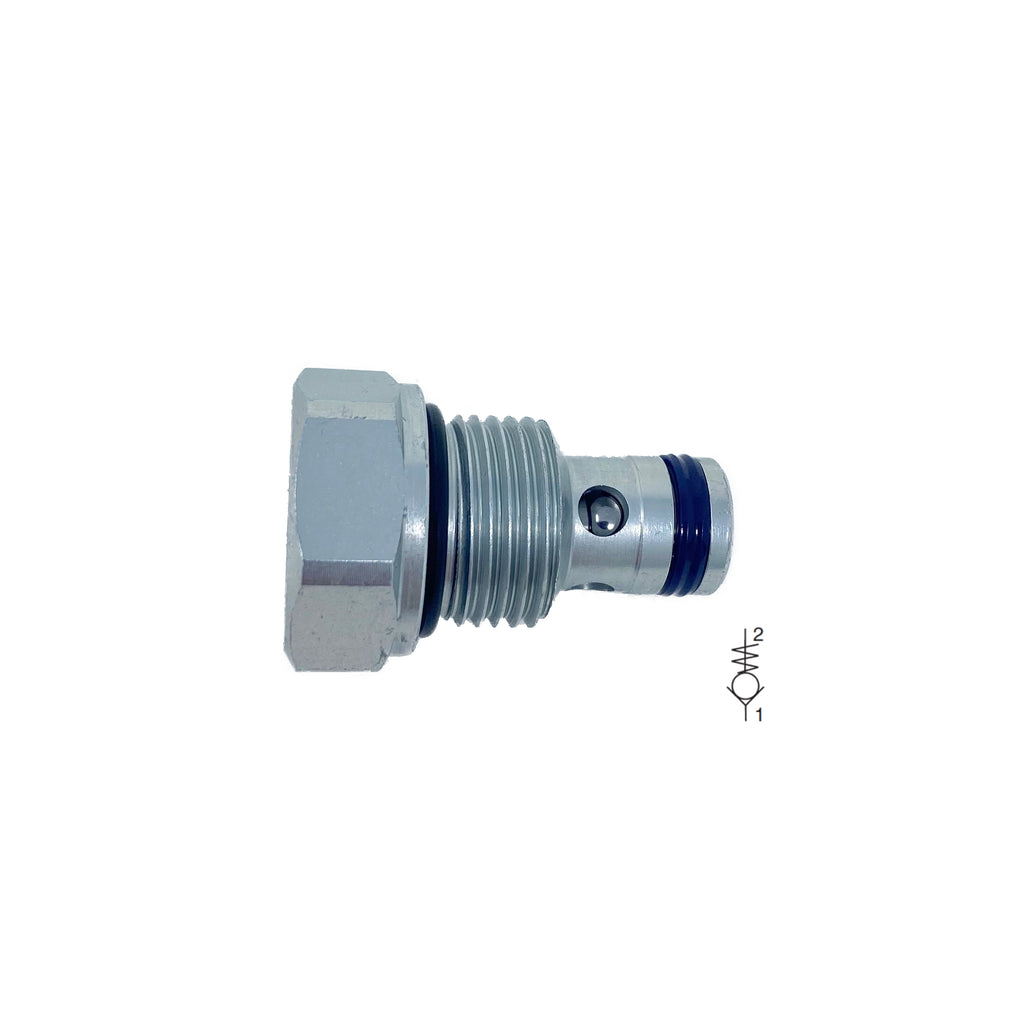

SC1F-A2/H005-B : Argo Check Valve Cartridge, Ball Type, 11 GPM, 6100psi, 7.3psi Cracking
SC1F-A2/H005-B : Argo Check Valve Cartridge, Ball Type, 11 GPM, 6100psi, 7.3psi Cracking
SC1F-A2/H005-B : Argo Check Valve Cartridge, Ball Type, 11 GPM, 6100psi, 7.3psi Cracking
Roll over image to zoom in Click on image to zoom
SC1F-A2/H005-B : Argo Check Valve Cartridge, Ball Type, 11 GPM, 6100psi, 7.3psi CrackingSC1F-A2/H005-B : Argo Check Valve Cartridge, Ball Type, 11 GPM, 6100psi, 7.3psi CrackingSC1F-A2/H005-B : Argo Check Valve Cartridge, Ball Type, 11 GPM, 6100psi, 7.3psi Cracking

SC1F-A2/H005-B : Argo Check Valve Cartridge, Ball Type, 11 GPM, 6100psi, 7.3psi Cracking

Save $1.50
Argo-HytosSKU: 15960700
Same Day
1
207
Price:
$24.99 $26.49

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 207
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 11
Pressure Rating 6100
Cracking Pressure 7.3
Check Valve Type Direct-Acting
Cartridge Cavity C-8-2
Height 1.06
Length 1.52
Width 1.06
Weight 0.5lbs

Description

The Argo-Hytos SC1F-A2 cartridge-style check valve can be used as a blocking or load-holding device. The cartridge has a ball check which is closed by a spring until sufficient pressure is applied at Port 1 to open flow to Port 2.
