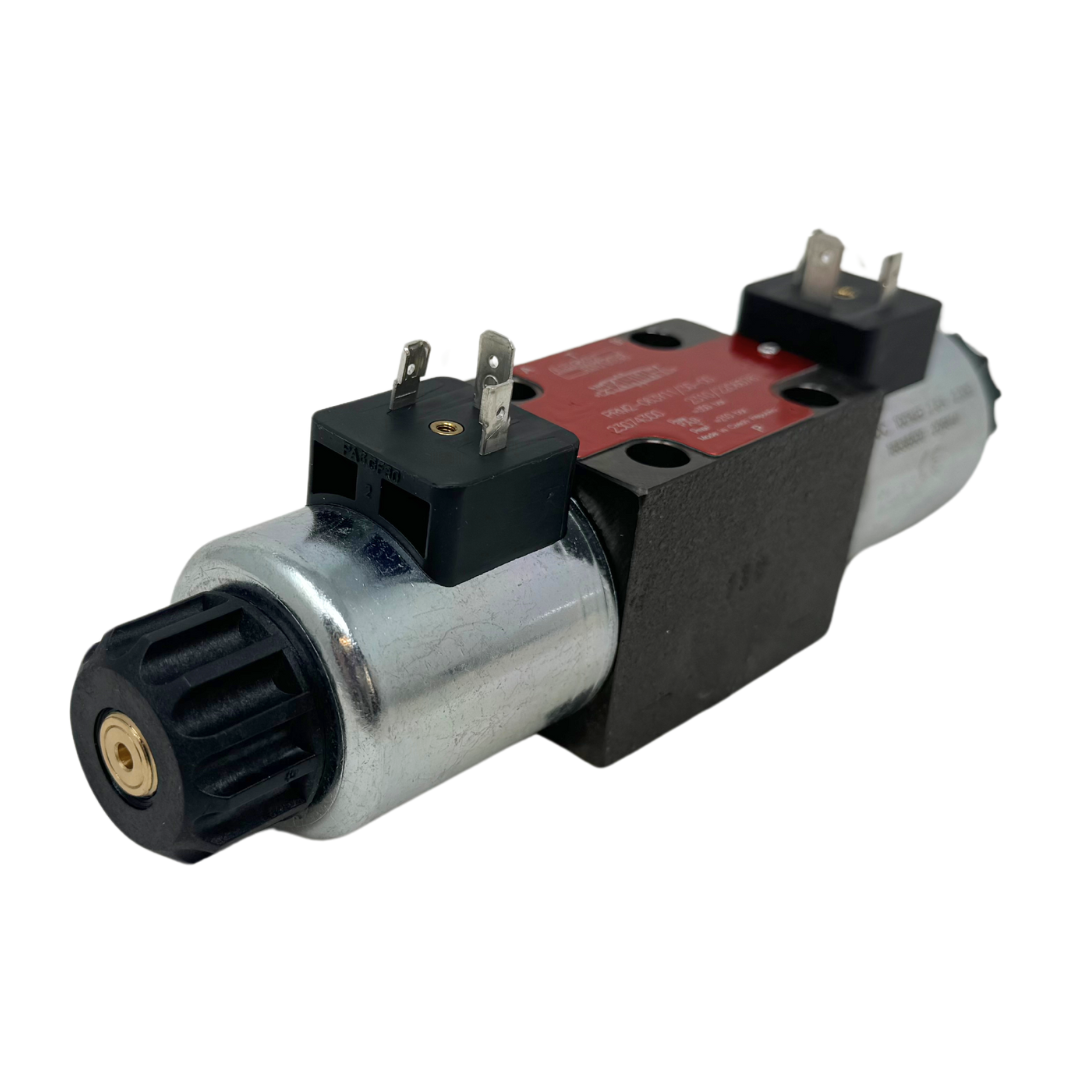

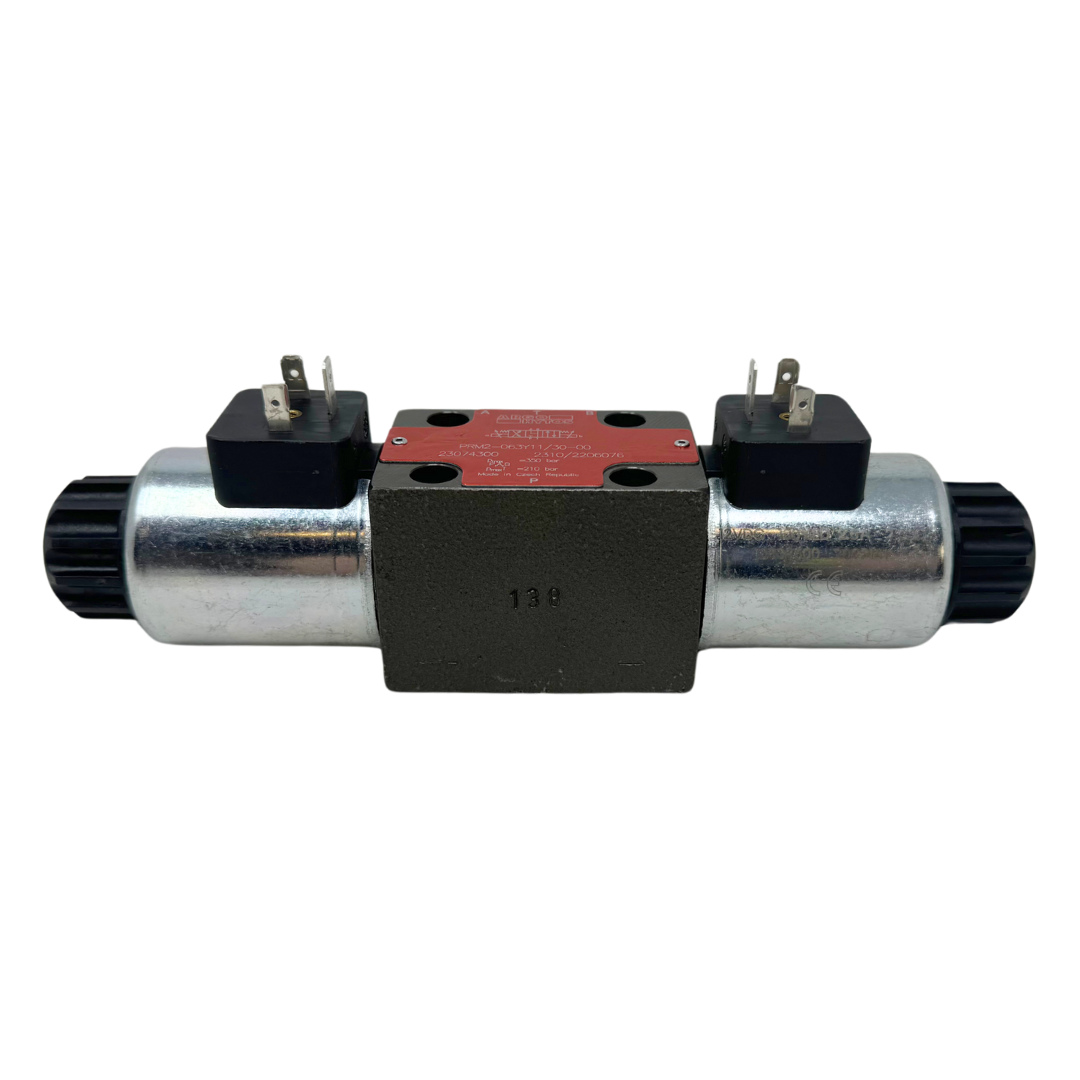

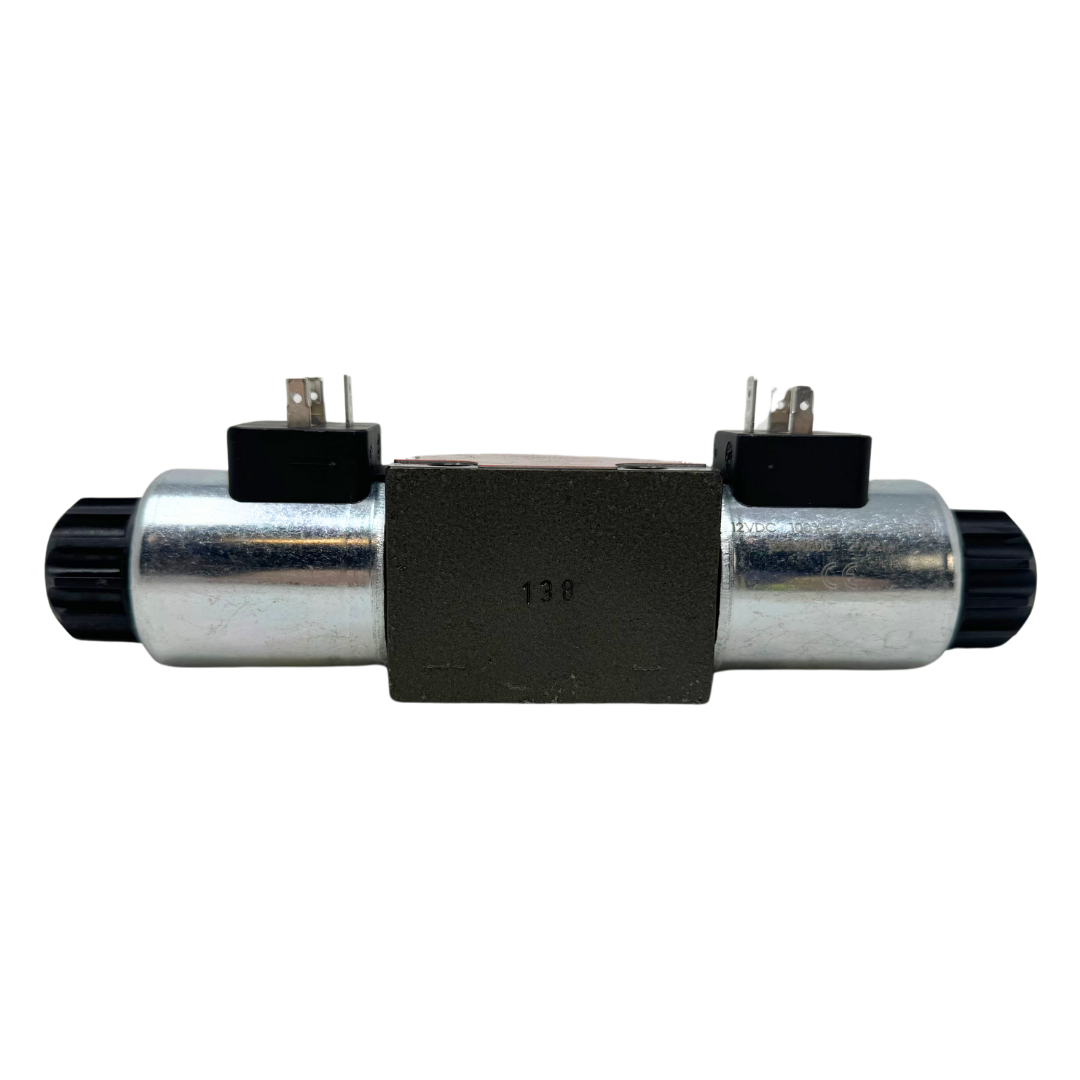

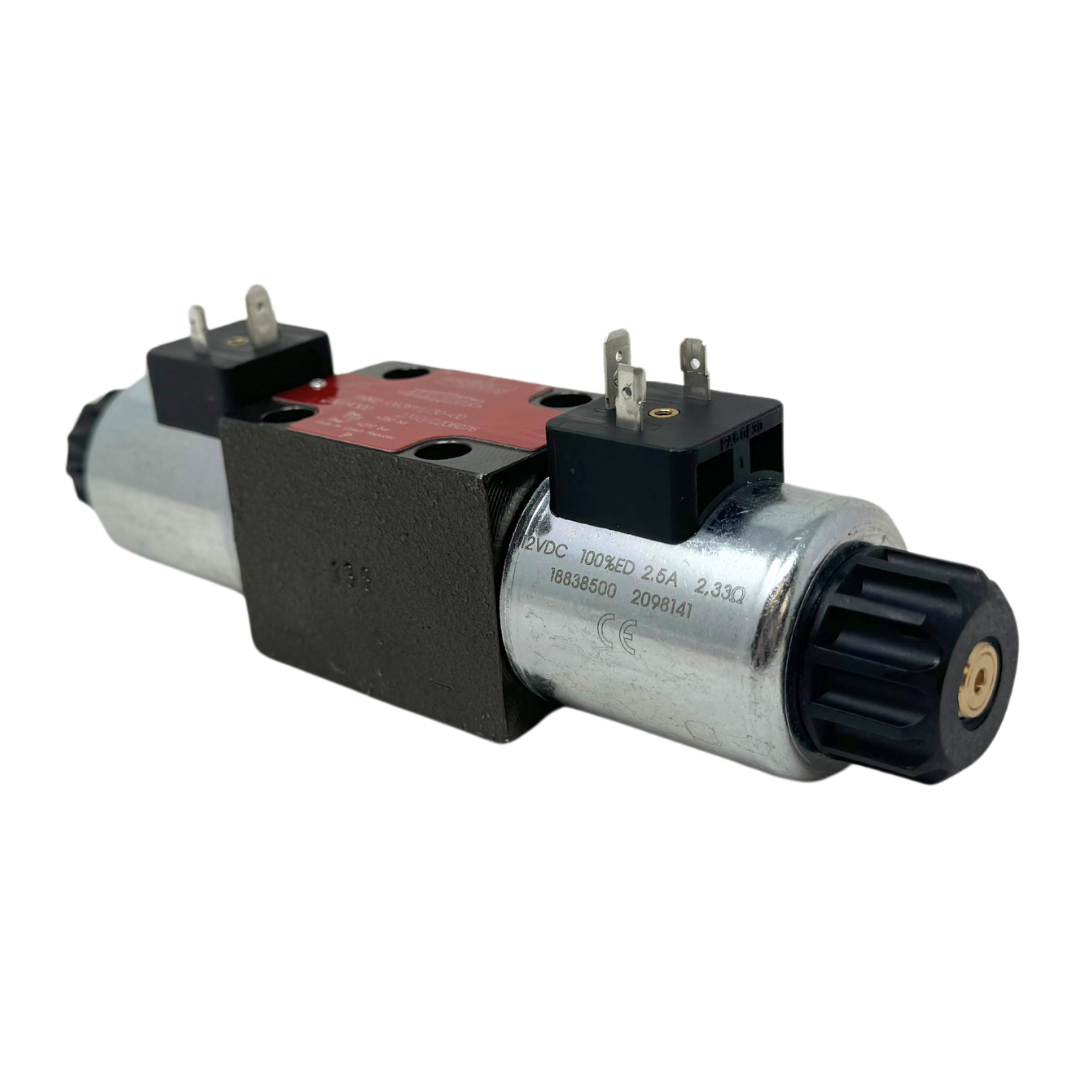

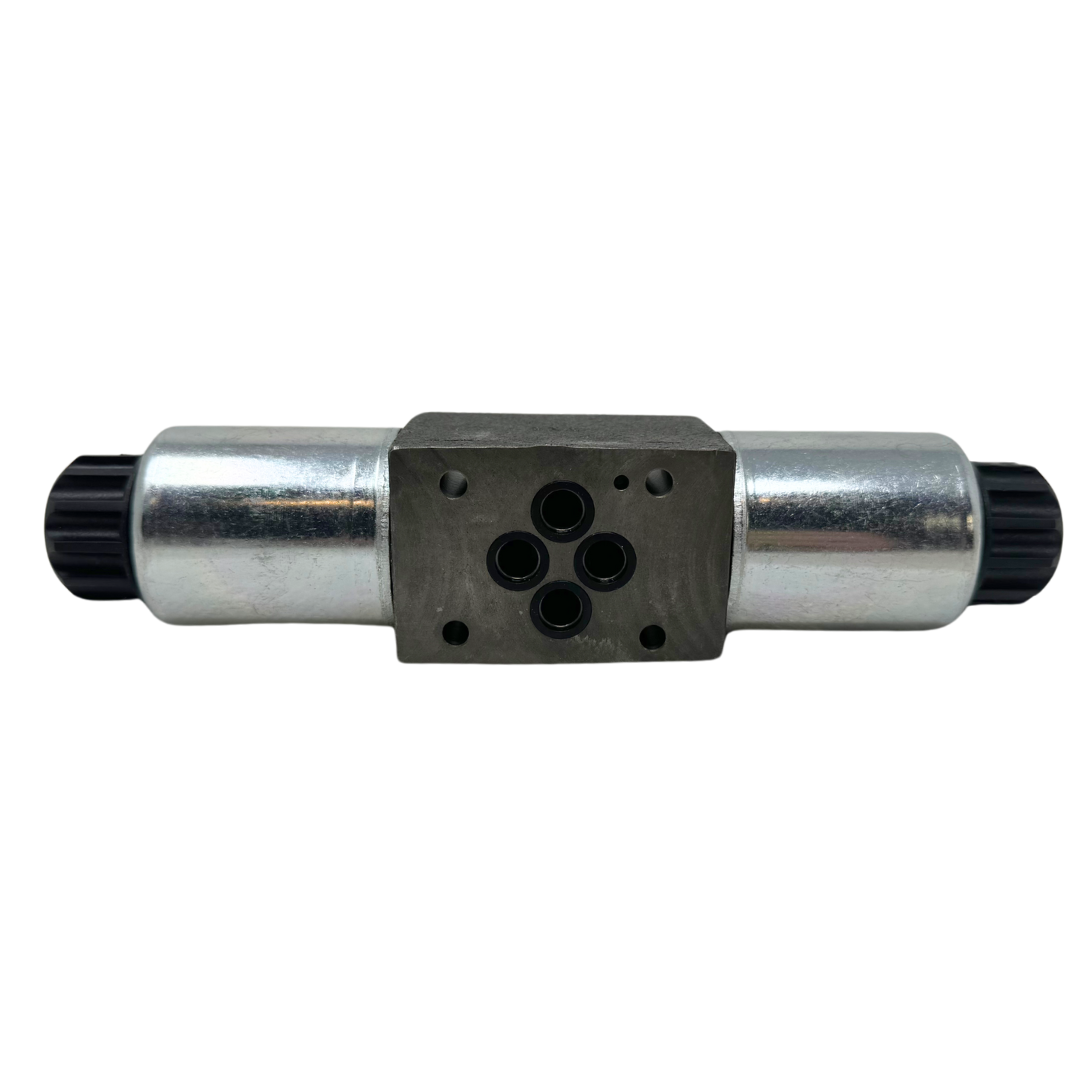

PRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard Electronics
PRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard Electronics
PRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard Electronics
PRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard Electronics
PRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard Electronics
Roll over image to zoom in Click on image to zoom
PRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard ElectronicsPRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard ElectronicsPRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard ElectronicsPRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard ElectronicsPRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard Electronics

PRM2-063Z11/15-24E1K1 : Argo Hytos D03 Proportional Directional Valve, 4GPM Nominal Flow, 5100psi, 3P4W, 24VDC DIN Coils, All Ports Blocked, No Onboard Electronics

Save $36.71
Argo-HytosSKU: 16014100
Same Day
5
0
Price:
$375.99 $412.70

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D03 (NG6)
Flow Rating 4
Pressure Rating 5100
Voltage 24 VDC
Solenoid Electrical Connection DIN, No On-Board Electronics
Spool Configuration All Ports Blocked in Center Position, Cylinder Spool
Positions 3-Position
Way 4-Way
Height 4.8
Length 5.9
Weight 5.3

Description

The Argo-Hytos PRM2-06 is a direct acting proportional control valve with optional integrated analog electronics (OBE) with a D03 subplate mounting interface. This valve is used for directional and speed control of hydraulic actuators. The valve opening and resulting flow rate can be modulated continuously in proportion to the reference signal, and can be controlled directly by a current control supply unit. The analog converter card allows for fine control of the valve spool position, reducing hysteresis and response time, and optimizing valve performance. The optional control box, which comprises one or two electronic control cards depending upon the number of controlled solenoids, can be mounted onto either solenoid. For models with two solenoids, the solenoid mounted opposite of the control box is connected to the box by a DIN connector, a two-lead cable, and a bushing. The connection of the control box with the supply source and with the control signal is implemented by a 4-pin connector of type M12x1. The electric control unit supplies the solenoid with current, which varies with the control signal.
