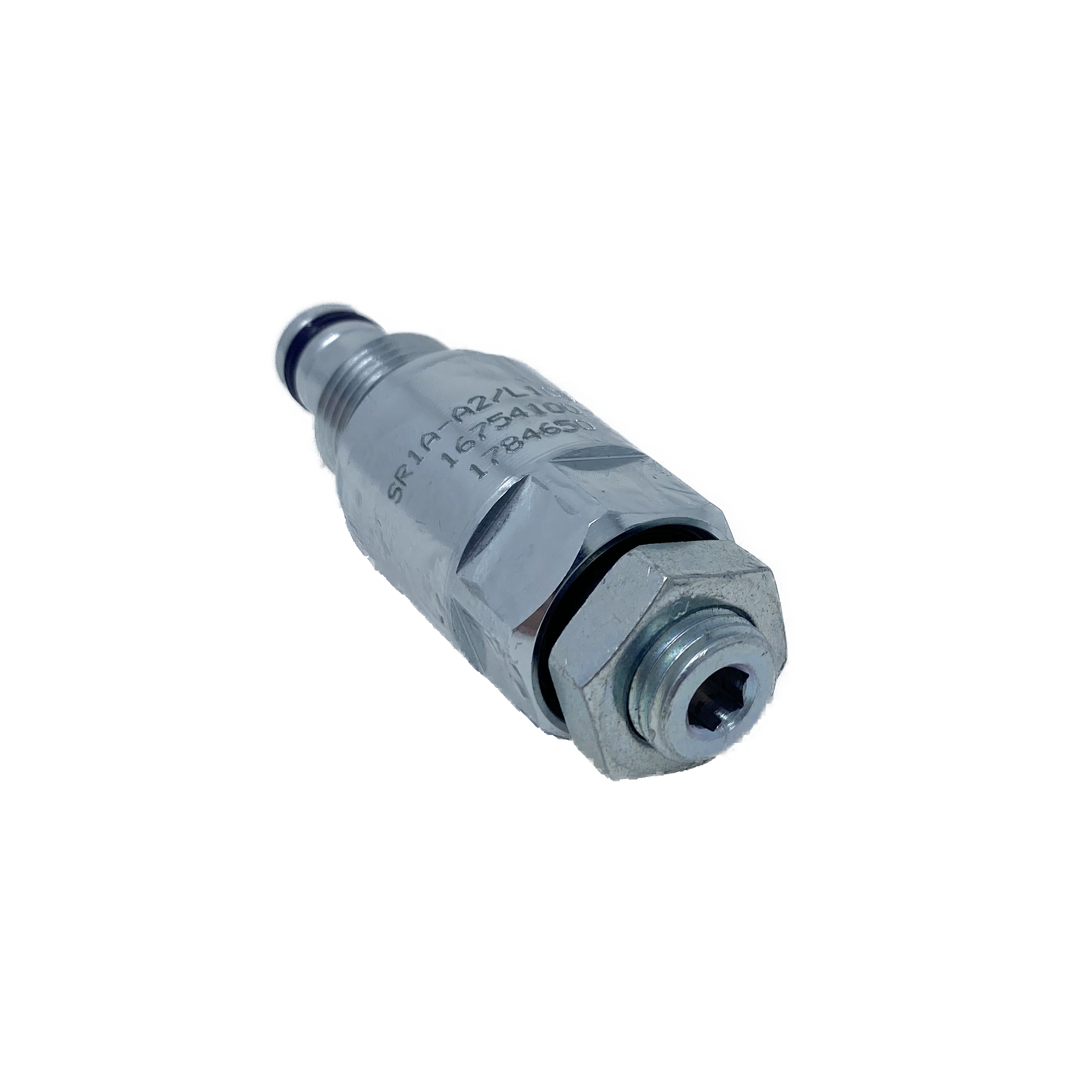

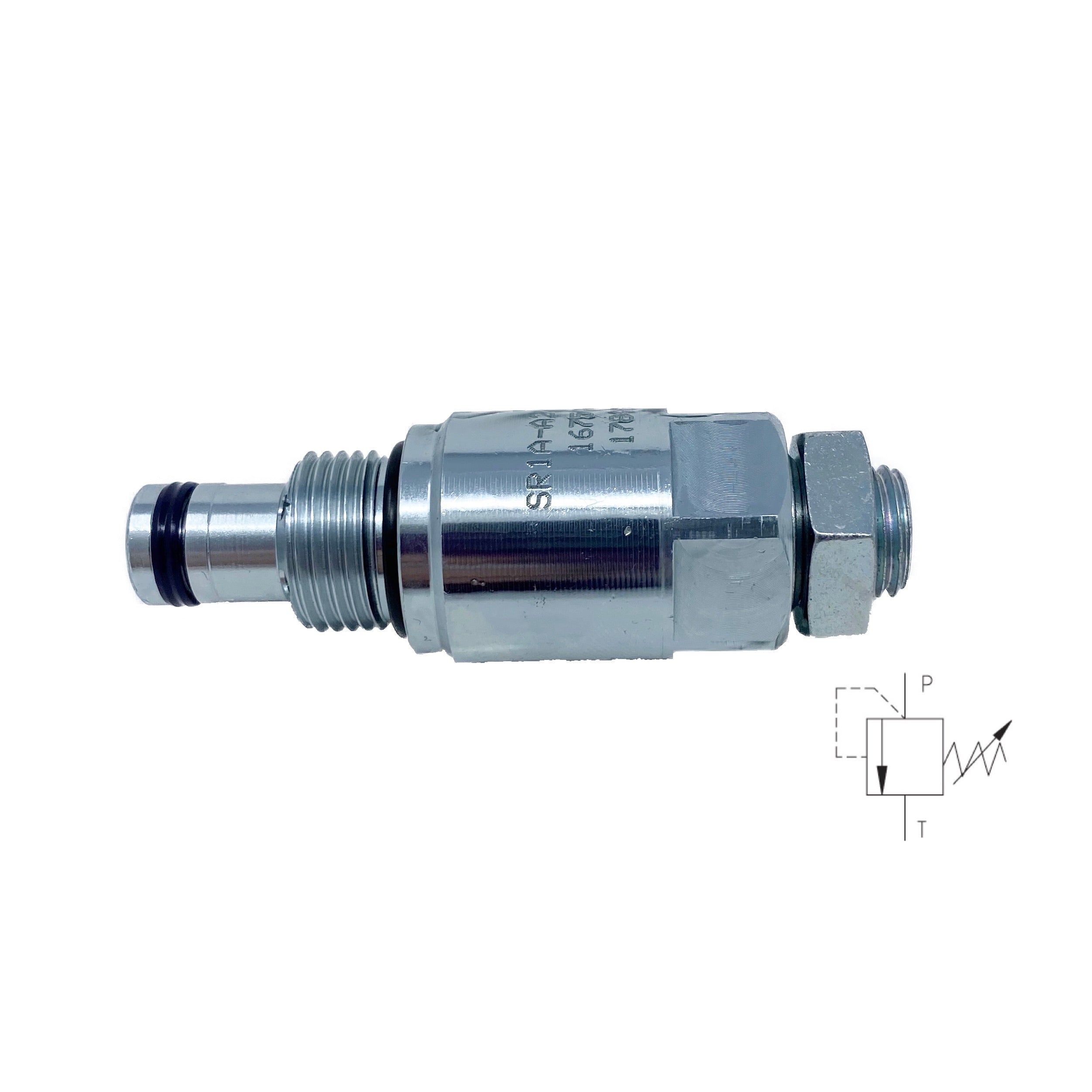

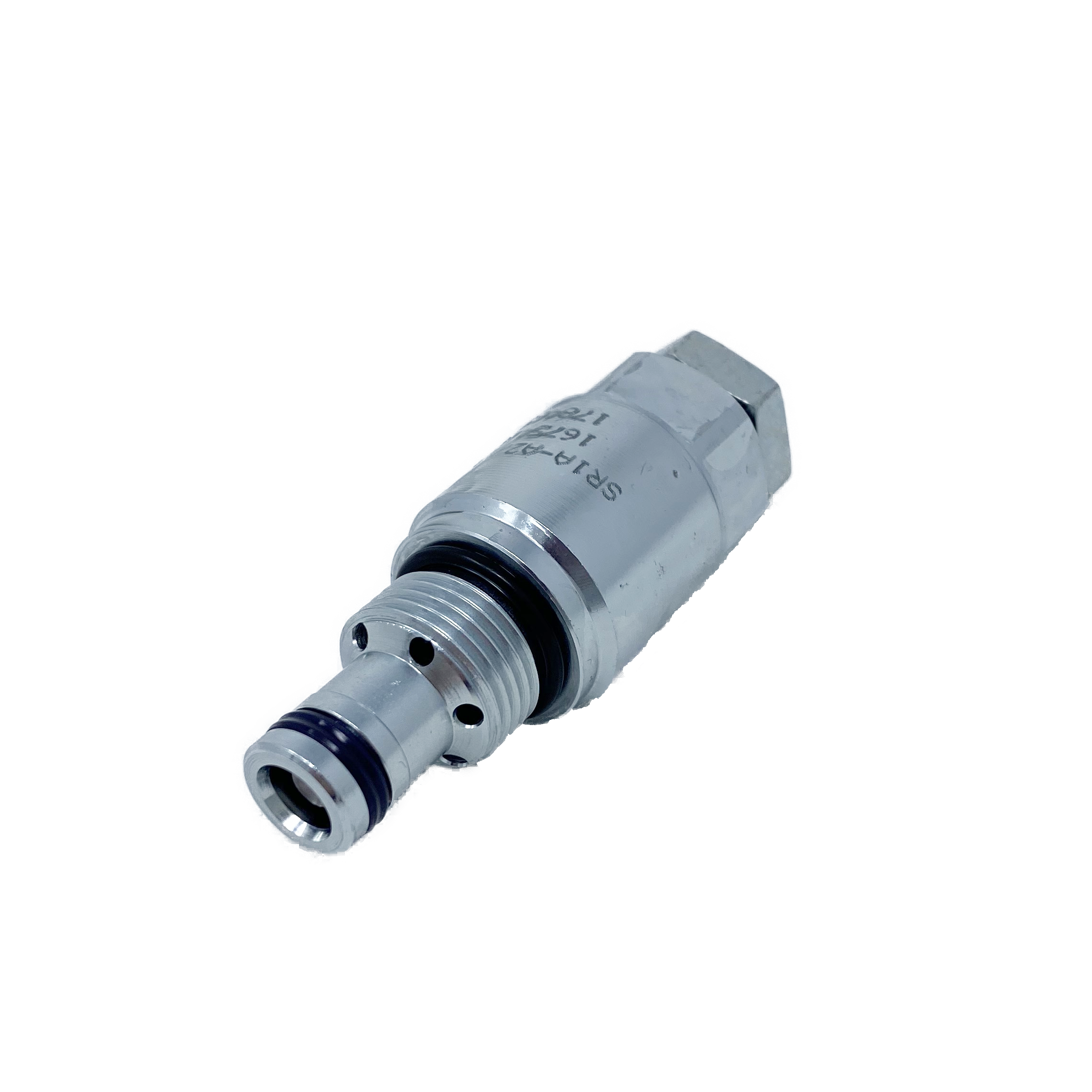

SR1A-A2/L10S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 1450psi, C-8-2 Cavity
SR1A-A2/L10S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 1450psi, C-8-2 Cavity
SR1A-A2/L10S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 1450psi, C-8-2 Cavity
Roll over image to zoom in Click on image to zoom
SR1A-A2/L10S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 1450psi, C-8-2 CavitySR1A-A2/L10S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 1450psi, C-8-2 CavitySR1A-A2/L10S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 1450psi, C-8-2 Cavity

SR1A-A2/L10S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 1450psi, C-8-2 Cavity

Save $3.22
Argo-HytosSKU: 16754100
Same Day
11
51
Price:
$41.99 $45.21

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 51
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Operation Direct-Acting
Valve Type Cartridge
Adjustment Type Allen Key Screw
Flow Rating 7.9
Pressure Rating 5080
Pressure Range Up to 1450psi
Cartridge Cavity C-8-2
Height 1.04
Length 3.05
Width 1.04
Weight 0.5

Description

The Argo-Hytos SR1A-A2 cartridge is a poppet-type, direct-acting, relief valve intended for use as a pressure limiting device for common hydraulic circuit protection. The spring acts on the poppet and presses it onto the valve seat. If the hydraulic pressure is below the pre-set value, the valve opens and flow passes to the tank port until the system pressure falls below the spring pre-set value and the valve closes again.
