Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock |
| Factory Stock | 0 |
| Factory Location | Bowling Green, Ohio |
| Solid Model | Click here to download |
| Valve Type | Modular (Stacking) Valve |
| Adjustment Type | Fixed Setting, Not Adjustable |
| Valve Interface | D03 (NG6) |
| Flow Rating | 9 |
| Pressure Rating | 5100 |
| Way | 2-Way |
| Height | 2.5 |
| Length | 5.31 |
| Width | 1.62 |
| Weight | 2.2 |
Description

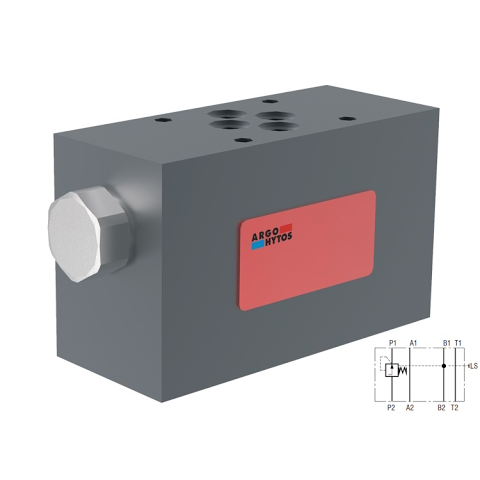

The Argo-Hytos TV2-062/M is a normally open, direct-acting, spring-loaded, 2-way pressure compensator in the form of a sandwich plate. The 2-way meter-in pressure compensators will maintain a constant pressure difference across the metering edge of the proportional directional valve. In this case, the pressure variations due to load changes as well as pump pressure changes, are compensated. Any increase in pump pressure does not affect flow. The meter-in compensators may only be used with positive load direction. They are designed for load compensation in inlet port P.
