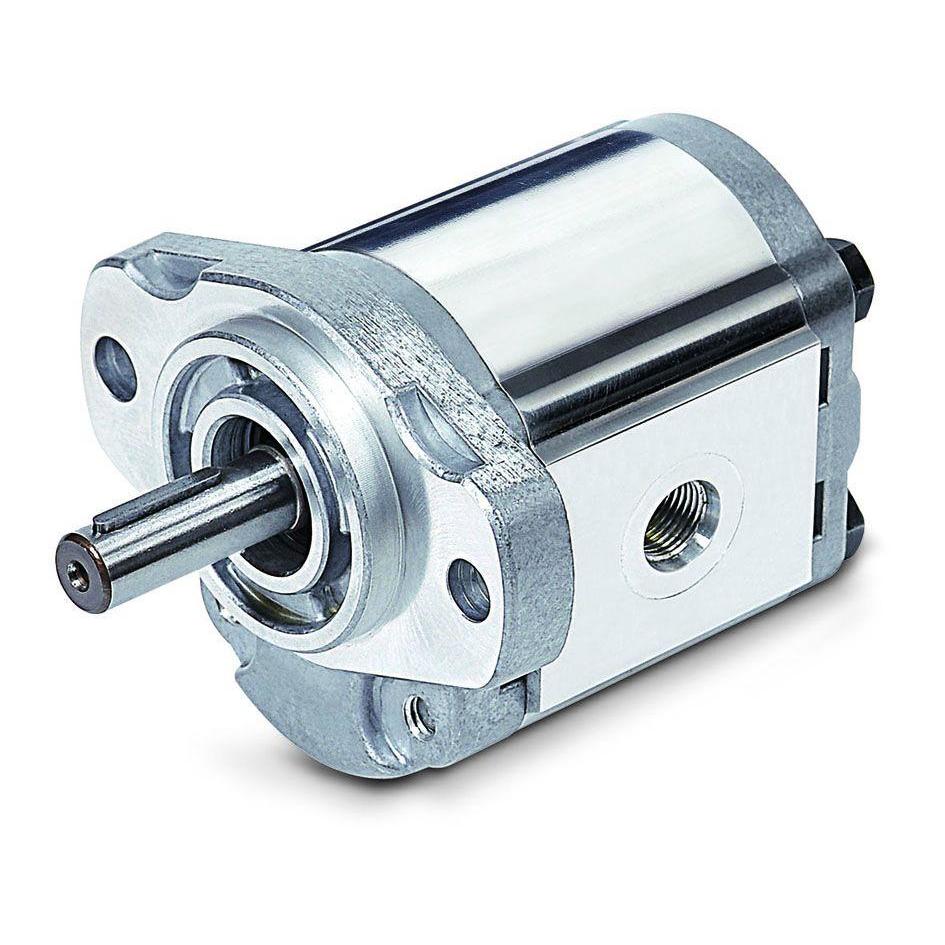

1AG3U13R : Honor Gear Pump, CW Rotation, 13.5cc (0.82in3), 6.42 GPM, 2300psi, 2500 RPM, SAE ORB-10 In (7/8"), SAE ORB-8 Out (3/4"), 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
1AG3U13R : Honor Gear Pump, CW Rotation, 13.5cc (0.82in3), 6.42 GPM, 2300psi, 2500 RPM, SAE ORB-10 In (7/8"), SAE ORB-8 Out (3/4"), 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount

1AG3U13R : Honor Gear Pump, CW Rotation, 13.5cc (0.82in3), 6.42 GPM, 2300psi, 2500 RPM, SAE ORB-10 In (7/8"), SAE ORB-8 Out (3/4"), 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount

HonorSKU: 1AG3U13R
1-3 Days
Price:
$188.29

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Corpus Christi, Texas
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 1/2" Bore x 1/8" Key
Shaft Type Keyed
Port Location Side Ported
Pressure Rating 2300
Rotation Clockwise
Displacement 13.5
Gpm At 1800 Rpm 6.42
Max Speed 2500 RPM
Inlet Port SAE ORB-10 In (7/8")
Outlet Port SAE ORB-8 Out (3/4")
Mount SAE AA 2-Bolt
Country of Manufacture Taiwan
Height 3.307
Length 4.591
Width 4.016
Weight 3.72

Description

The Honor Gear Pump Group 1 Pumps are defined by the mounting flange and shaft end. Mounting flanges are available in SAE AA 2-bolt, US 4F-17 four-bolt, four-bolt European mounting flanges, and the 'thru bolt' front manifold discharge DC power pack design pump. Shaft ends can be keyed, spline, or tang, depending on your requirements. Displacements are available from 0.04 to 0.82 in3. Side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
