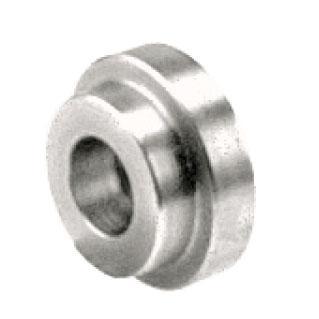

24T-24SFN : AFP Tube Flange Head Fitting, Steel, 1.5" Tube x 1.5" C61, with Flat Face
Roll over image to zoom in Click on image to zoom
24T-24SFN : AFP Tube Flange Head Fitting, Steel, 1.5" Tube x 1.5" C61, with Flat Face

24T-24SFN : AFP Tube Flange Head Fitting, Steel, 1.5" Tube x 1.5" C61, with Flat Face

Anchor Fluid PowerSKU: 24T-24SFN
5 Days
Price:
$10.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Material Carbon Steel
Flange Code Code 61 Tube
Flange Size 1.5 (1-1/2")
Pressure Rating 3000
Sae Connector Flange Type Tube Flange Head Fitting
Fitting Angle Straight
Face Style Flat Face
Country of Manufacture China
Height 0.62
Length 2.375
Width 0.62
Side 1 Size 1.5 (1-1/2")
Side 1 Type Tube

Description

Anchor's broad range of hydraulic flange configurations provides design engineers and shop assembly personnel with total flexibility in the plumbing of hydraulic systems. Their wide variety of standard configurations are available OFF-THE-SHELF to meet today’s reduced lead time requirements. Please note that adapting the flange to other connections such as braze tube, welded pipe, or threaded ports or stud ends could reduce maximum working pressure.
