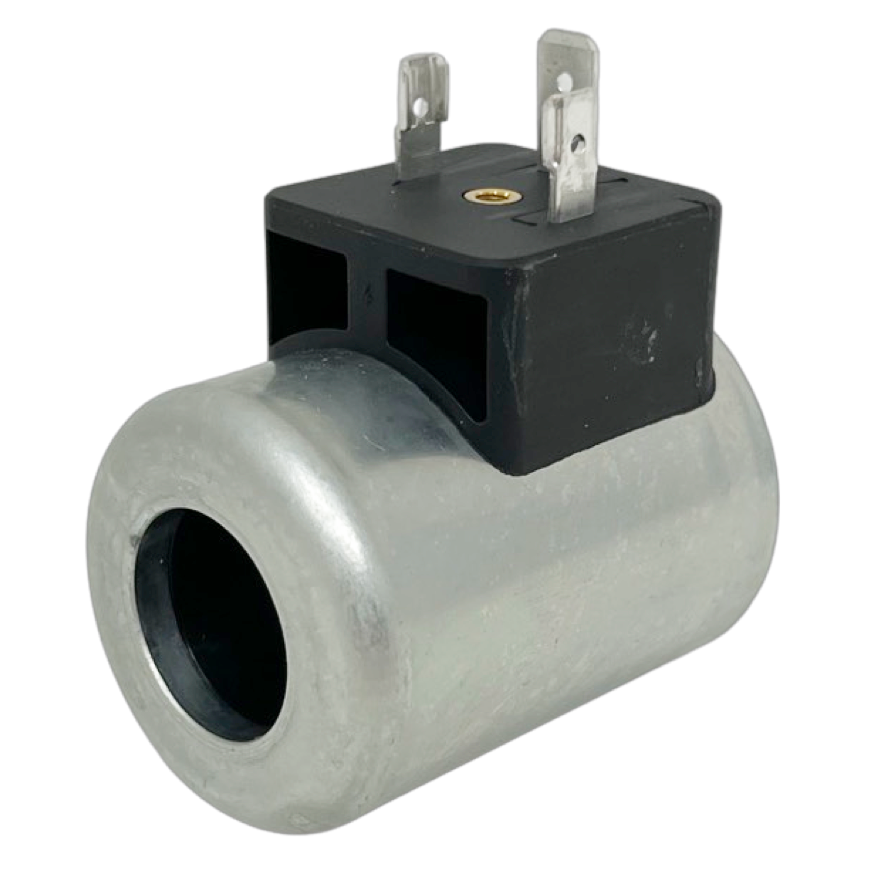

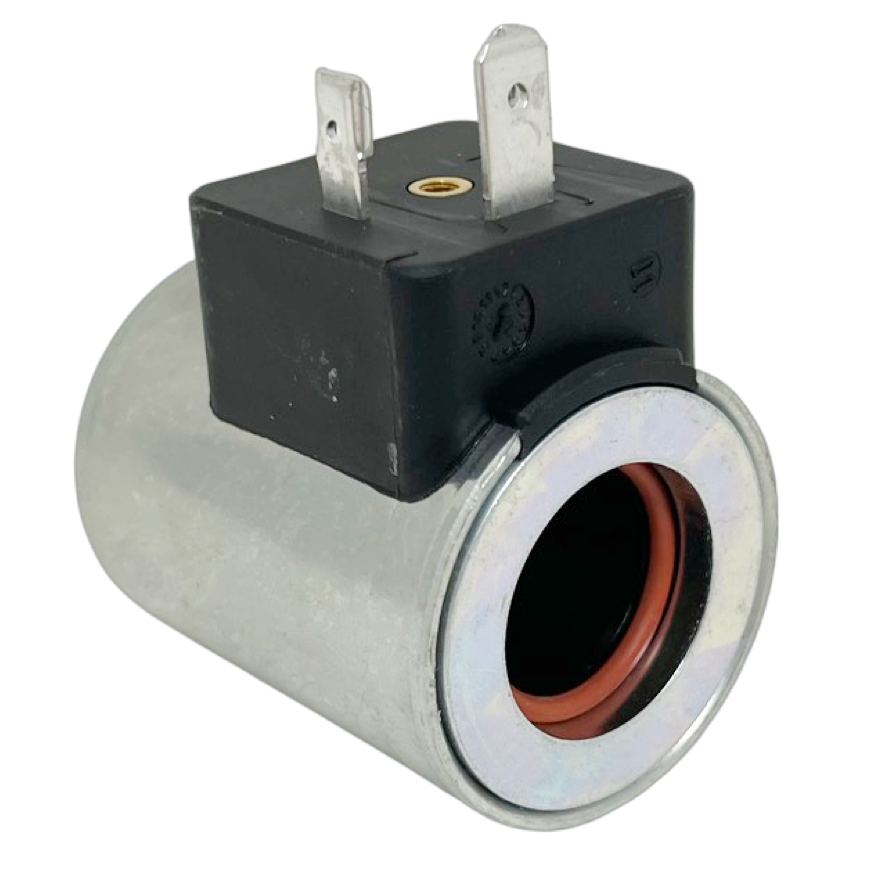

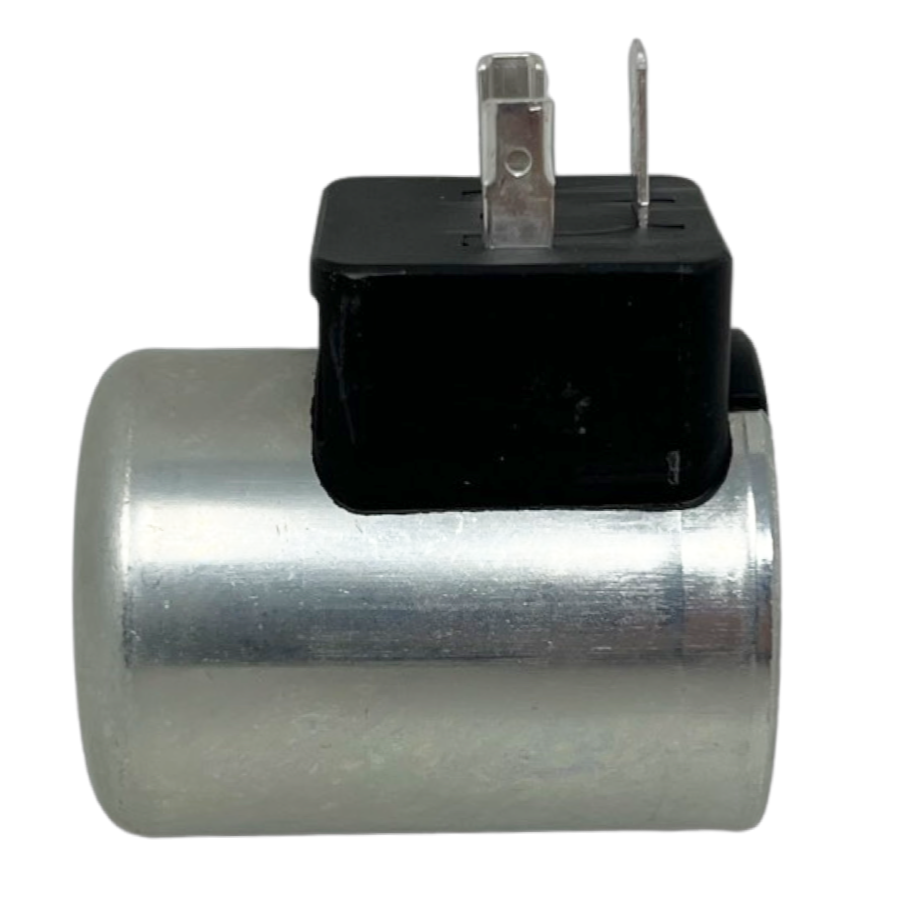

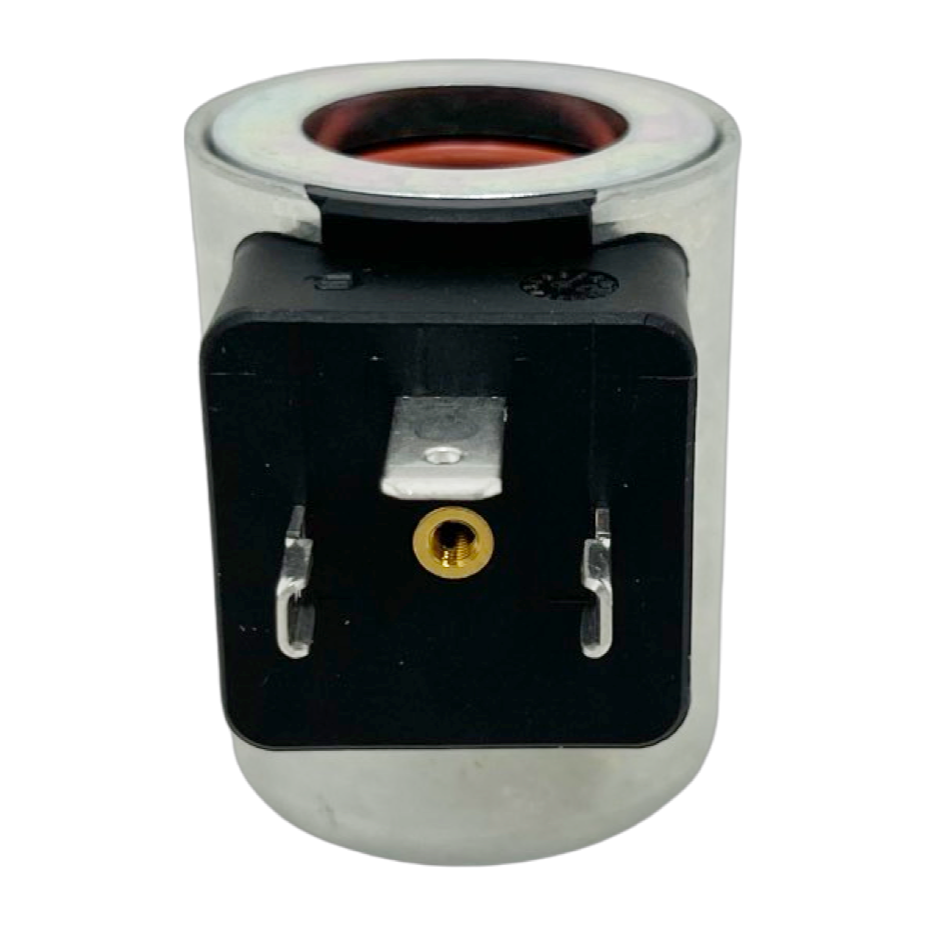

C19B-12060E5-527NA : Argo Valve Coil, 120VAC, 60Hz, DIN (EN 175301-803-A + Rectifier) Connector Type

Save $6.26
Argo-HytosSKU: 27668500
Same Day
15
0

Price:
Sale price$39.99 Regular price$46.25

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
For Use With RPE2-04, RPE3-04, SR4E2-B2, SD2E-Ax/H, SD3E-A2/H, SD1e-A2, SD1E-A3, PRM2-04, PRM7-04, SR1P2-A2, SRN1P1-A2, SR4P2-B2, SRN4P1-B2, SP4P2,B3, SPN4P1-B3, PVRM1-063
Voltage 120 VAC, 60Hz
Electrical Connector DIN (EN 175301-803-A + Rectifier)
Coil Size C19
Valve Size Dn 04
Coil Inner Diameter 0.75"
Country of Manufacture Czech Republic

Description

Valves designed for a change of fluid direction, such as directional control valves and poppet-type valves, are often solenoid operated. Proportional valves are another large group controlling continuously parameters in the circuit within the defined interval. Electric current flowing through the coil winding creates a magnetic field. This field acts on the armature of the solenoid part and allows its shift which is then transferred to the valve control element, usually a spool or poppet. The excitation winding made of copper wire placed on a plastic core is the basis. The coil is inserted into the steel housing amplifying the magnetic field and to protect it against mechanical damage. Moreover, the coil is molded into the housing by plastic material. The connector part coupled with the coil is also made of the same plastic. A silicone seal protects the coil space against moisture and dust.
