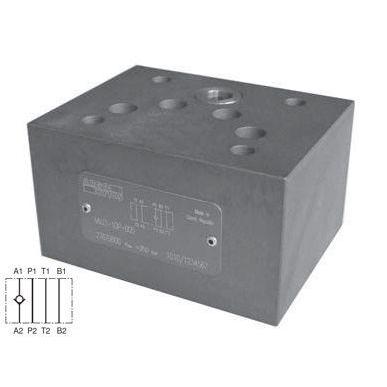

MVJ3-10A-005 : Argo D05 Modular Check Valve, Poppet Type, 26 GPM, 5100psi, Check in A
Roll over image to zoom in Click on image to zoom
MVJ3-10A-005 : Argo D05 Modular Check Valve, Poppet Type, 26 GPM, 5100psi, Check in A

MVJ3-10A-005 : Argo D05 Modular Check Valve, Poppet Type, 26 GPM, 5100psi, Check in A

Save $12.45
Argo-HytosSKU: 27680500
3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
Price:
$130.99 $143.44

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Modular (Stacking) Valve
Valve Interface D05 (NG10)
Flow Rating 26
Pressure Rating 5100
Check Valve Position Check Valve in Line A
Cracking Pressure 7.3
Check Valve Type Direct-Acting
Height 2.76
Length 3.58
Width 1.97
Weight 4.96 lbs

Description

The Argo-Hytos MVJ3-10 is check valve with a sandwich plate design for use in vertical valve stacking assemblies. These check valves in a sandwich plate design allow flow in one direction and prevent flow in the other direction. The sandwich design enables vertical stacking with other components of the same size.
