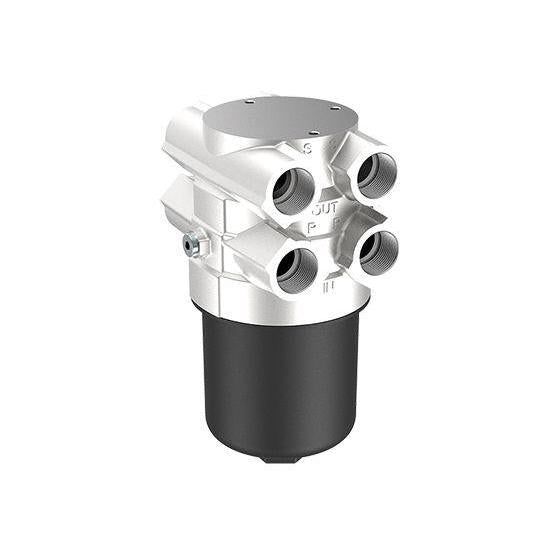

E 258-766 : Argo Return-Suction Filters, 145psi, 66GPM, 10 Micron, #24SAE, No Ind., No Bypass
Roll over image to zoom in Click on image to zoom
E 258-766 : Argo Return-Suction Filters, 145psi, 66GPM, 10 Micron, #24SAE, No Ind., No Bypass

E 258-766 : Argo Return-Suction Filters, 145psi, 66GPM, 10 Micron, #24SAE, No Ind., No Bypass

Save $26.20
Argo-HytosSKU: 33073700
3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
0
Price:
$271.99 $298.19

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
Factory Stock 0
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Material Aluminum
Port Size #16 SAE (1")
Flow Rating 66
Micron 10 Micron
Replacement Elements K3.1030-56
Valve Options Without Bypass
Pressure Rating 145
Country of Manufacture Germany
Height 6.3
Length 14.88
Width 6.3

Description

The Argo Hytos E Series Return-Suction filters are for operation in mobile units with hydrostatic drives, wahen the return flow is under all operating conditions higher than the oil flow of the feed pump. The hydraulic oil returning from the circuit passes the filter element, is pressurized by a 7.3 psi check valve and supplied to the feed pump. The surplus oil flows filtered over the integral check valve into the reservoir. As the feed pump is always fed with pressurized oil, the risk of cavitation is minimized and full performance is available even during the critical cold start phase. An integral by-pass valve in the filter prevents too high back pressure - cold start, contaminates. A by-pass valve with a 200-micron protection strainer guarantees that only filtered oil can get into the feed pump.
