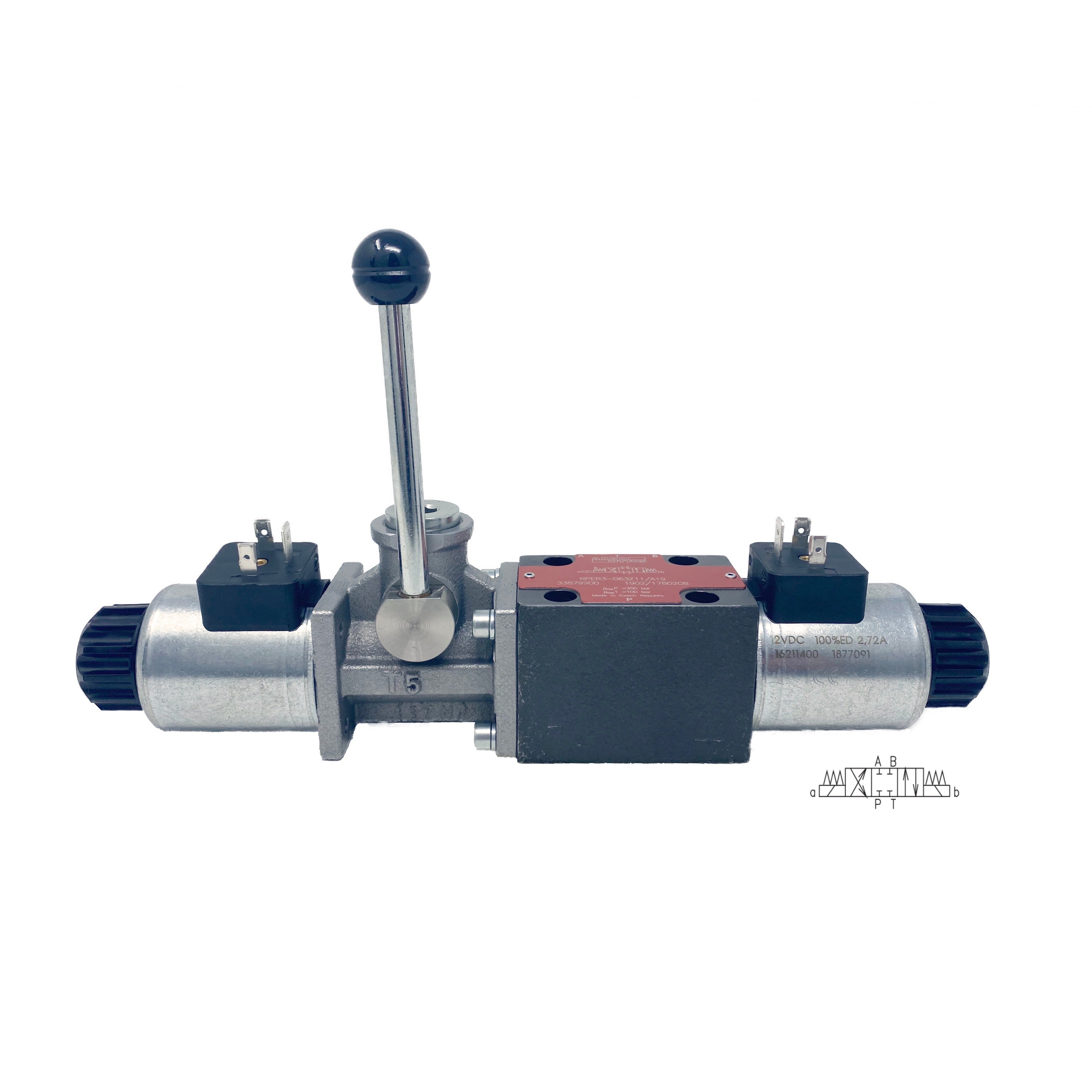

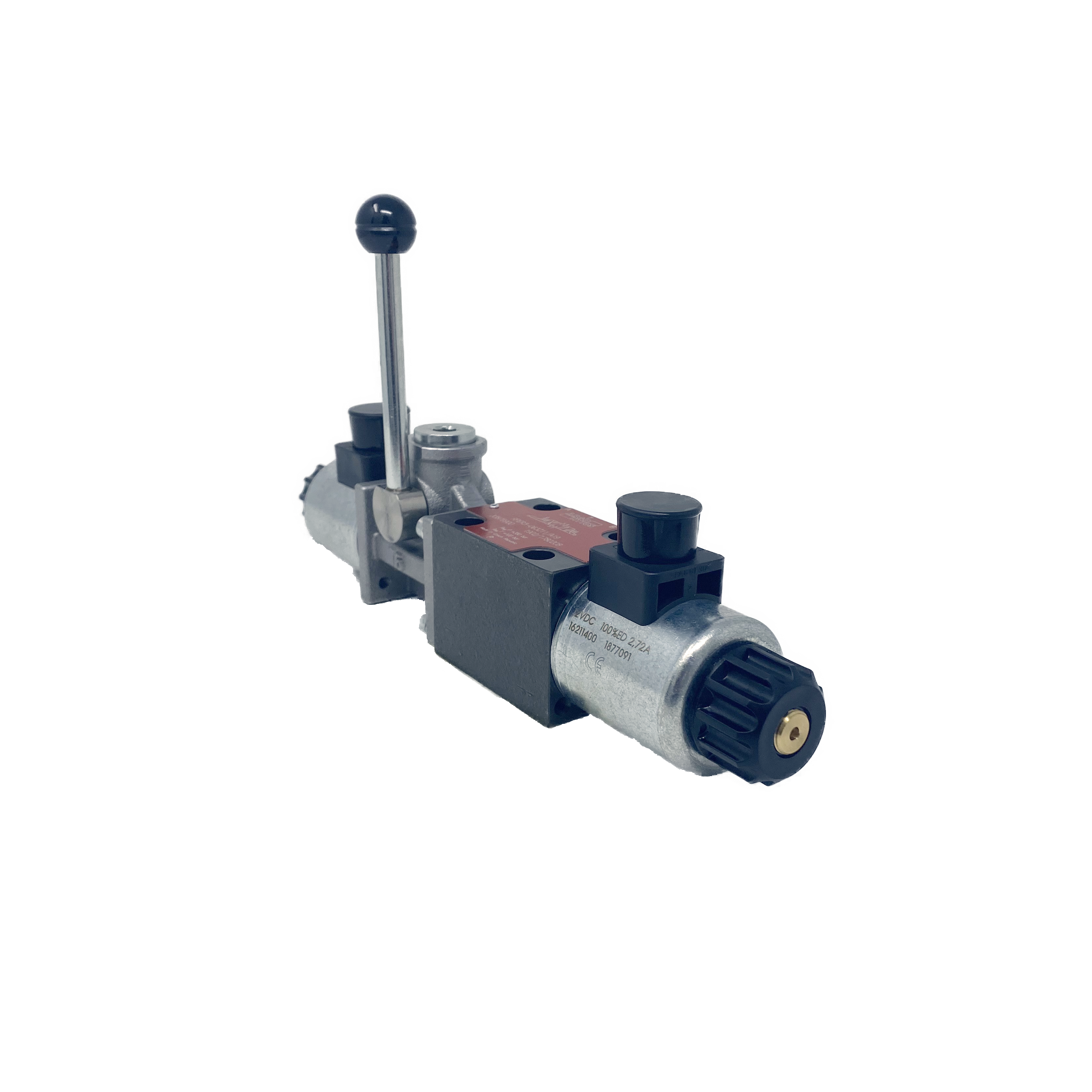

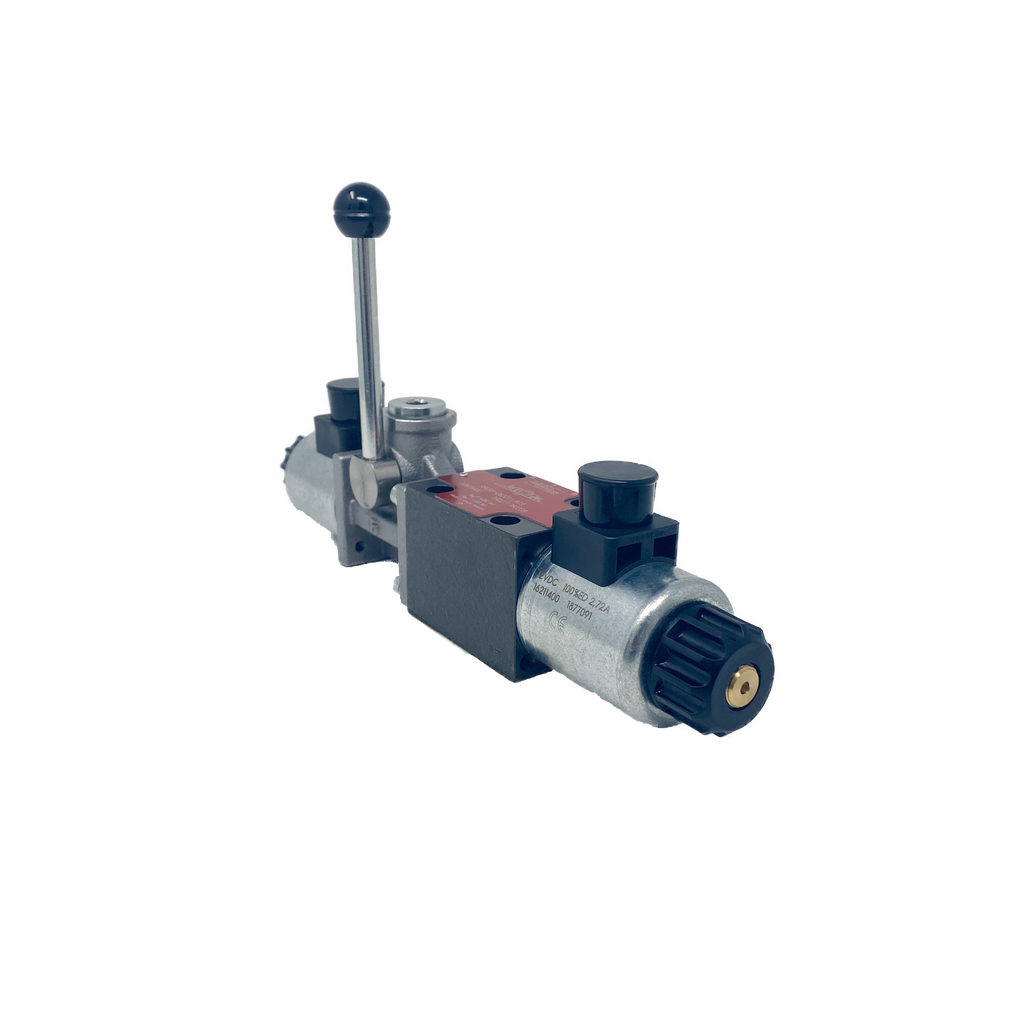

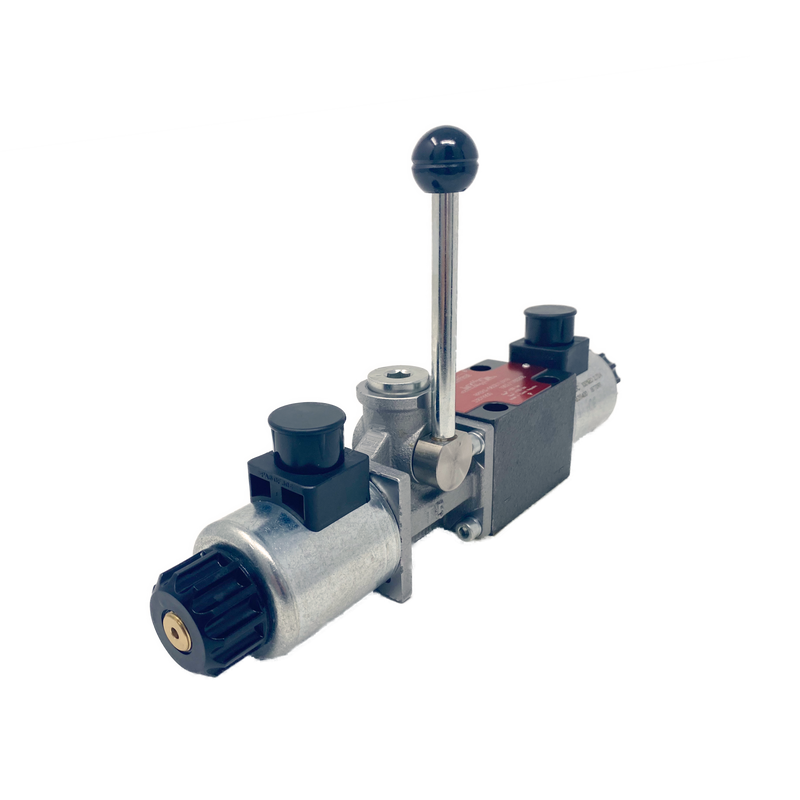

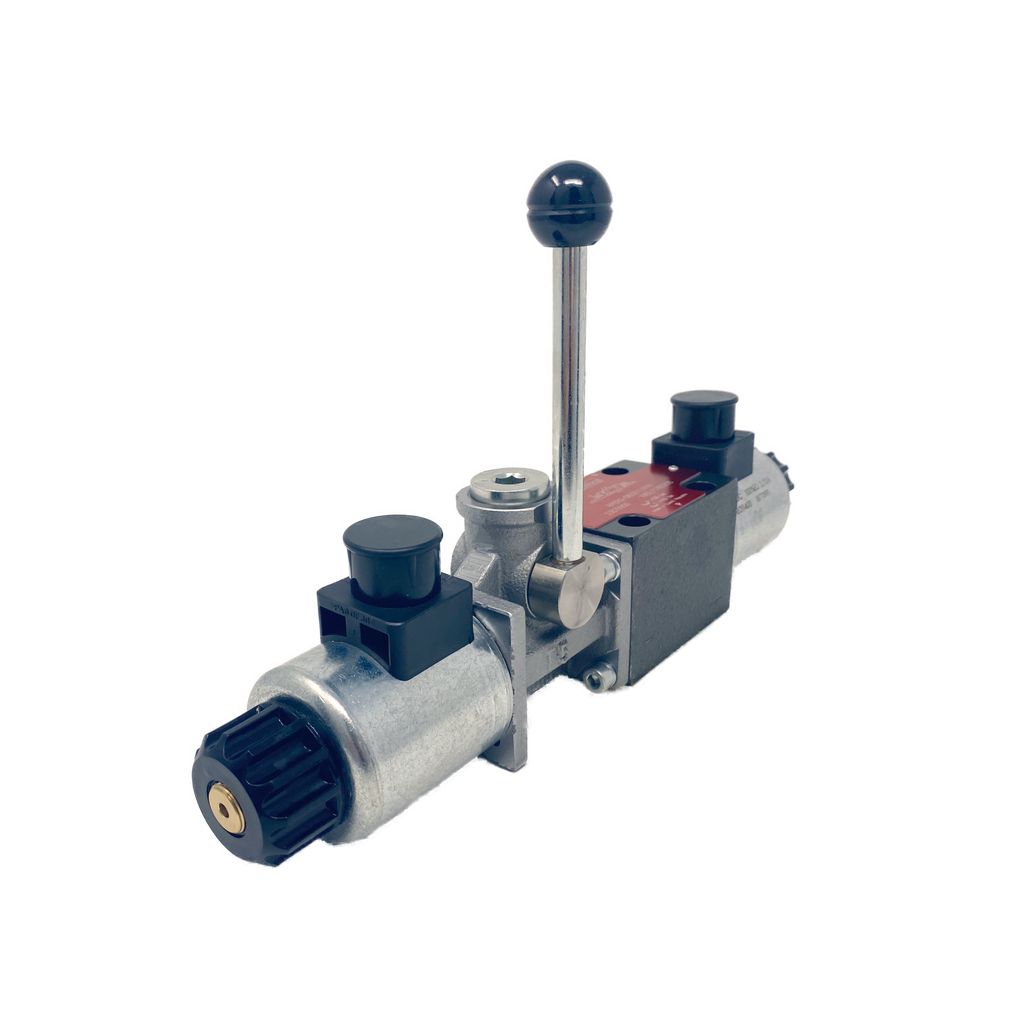

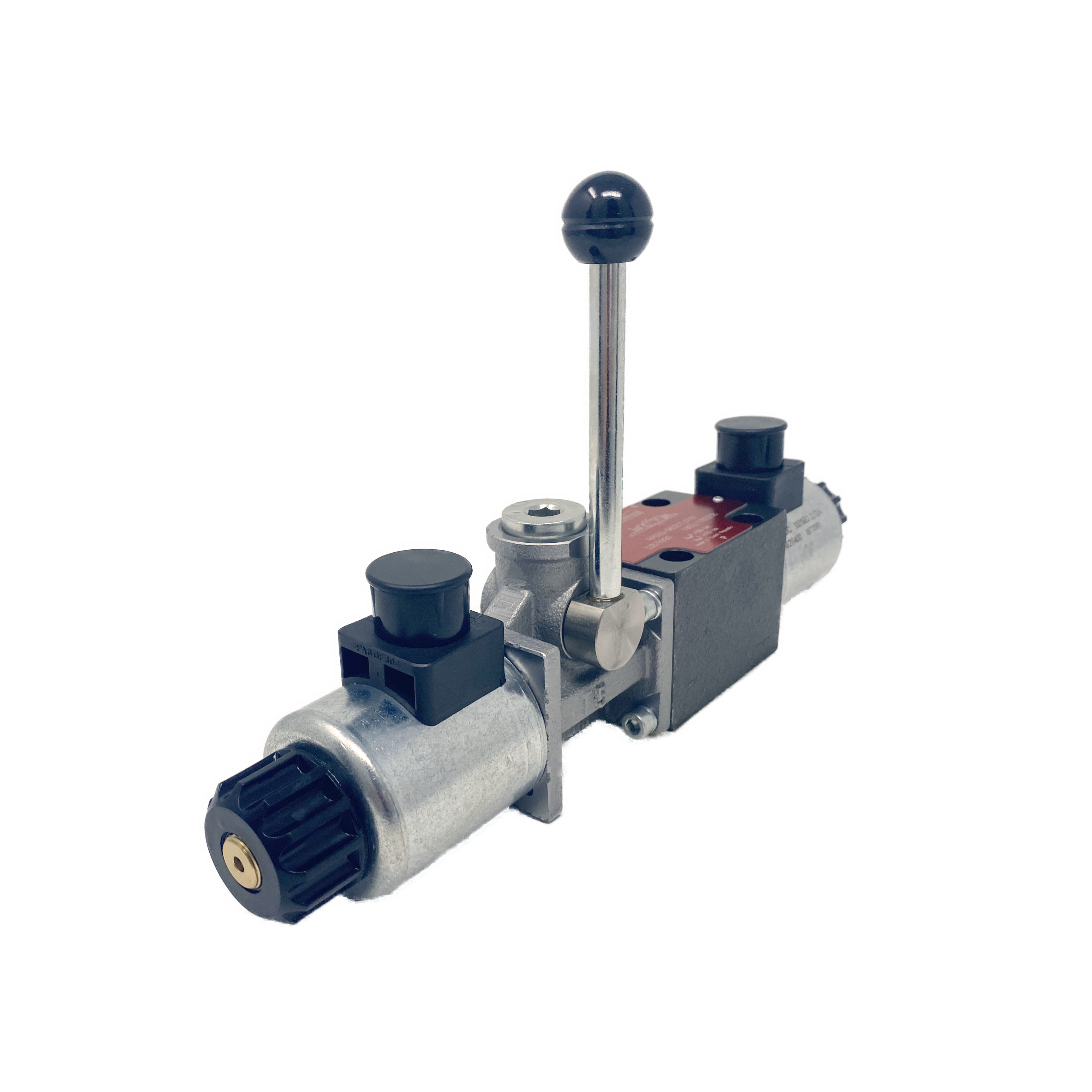

RPER3-063Z11/01200E1/A19 : Argo Directional Control Valve w/ Override Lever, D03, 21GPM, 5100psi, 3P4W, 12 VDC, DIN, Spring Centered, Cylinder Spool
RPER3-063Z11/01200E1/A19 : Argo Directional Control Valve w/ Override Lever, D03, 21GPM, 5100psi, 3P4W, 12 VDC, DIN, Spring Centered, Cylinder Spool
RPER3-063Z11/01200E1/A19 : Argo Directional Control Valve w/ Override Lever, D03, 21GPM, 5100psi, 3P4W, 12 VDC, DIN, Spring Centered, Cylinder Spool
Roll over image to zoom in Click on image to zoom
RPER3-063Z11/01200E1/A19 : Argo Directional Control Valve w/ Override Lever, D03, 21GPM, 5100psi, 3P4W, 12 VDC, DIN, Spring Centered, Cylinder SpoolRPER3-063Z11/01200E1/A19 : Argo Directional Control Valve w/ Override Lever, D03, 21GPM, 5100psi, 3P4W, 12 VDC, DIN, Spring Centered, Cylinder SpoolRPER3-063Z11/01200E1/A19 : Argo Directional Control Valve w/ Override Lever, D03, 21GPM, 5100psi, 3P4W, 12 VDC, DIN, Spring Centered, Cylinder Spool

RPER3-063Z11/01200E1/A19 : Argo Directional Control Valve w/ Override Lever, D03, 21GPM, 5100psi, 3P4W, 12 VDC, DIN, Spring Centered, Cylinder Spool

Save $28.24
Argo-HytosSKU: 33725700
3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
0
Price:
$284.99 $313.23

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
Factory Stock 0
Factory Location Bowling Green, Ohio
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D03 (NG6)
Flow Rating 21
Pressure Rating 5100
Voltage 12 VDC (2.72A) Rated Supply Voltage of Solenoids at the coil terminals
Actuation Type Solenoid Operated
Solenoid Electrical Connection DIN Connector EN 175301-803-A
Spool Configuration Cylinder Spool, All Ports Blocked in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Czech Republic
Height 5.94
Length 10.66
Width 1.79
Weight 4.85

Description

The Argo-Hytos RPER3-06 auxiliary override valve offers a lever override for On/Off solenoid valves of the type RPE3-06. Auxiliary lever operators allow the valve to be operated when the electrical system is de-energized, for example in emergency operation, electrical failures, or maintenance activities. The manual lever and actuation element can be rotated in 90-degree increments for flexible installation. When the valve is electrically operated, the hand lever remains in stopped in its neutral position. The lever override does not affect the performance of the base valve. The lever operator should never be used when the solenoid is energized.
