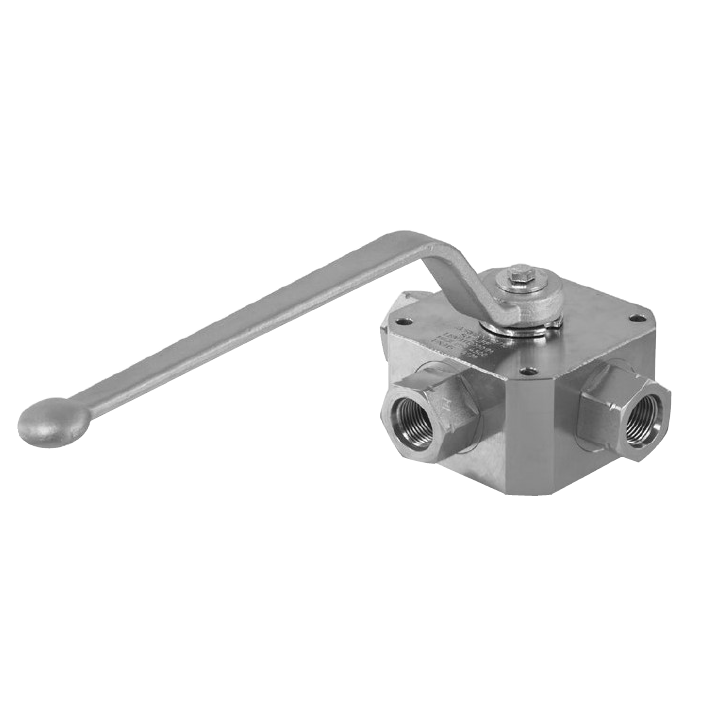

LBV-3-U12-0001-M : Stauff Multi-Way Diverter Ball Valve, L-Bore, 90 Degree Action, #12 SAE (3/4"), Carbon Steel, 5075psi, 3-Way
Roll over image to zoom in Click on image to zoom
LBV-3-U12-0001-M : Stauff Multi-Way Diverter Ball Valve, L-Bore, 90 Degree Action, #12 SAE (3/4"), Carbon Steel, 5075psi, 3-Way

LBV-3-U12-0001-M : Stauff Multi-Way Diverter Ball Valve, L-Bore, 90 Degree Action, #12 SAE (3/4"), Carbon Steel, 5075psi, 3-Way

Save $411.30
StauffSKU: 3404001719
4-6 Weeks
Price:
$1,373.99 $1,785.29

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Canton, Michigan
Port Size #12 SAE (3/4")
O Ring Seals Viton
Pressure Rating 5075
Body Material Carbon Steel
Ball Seal Delrin
Ball Pattern L-Bore, 90-Degree Action
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Three-Way
Country of Manufacture Germany
Weight 14.96
Ball Valve Type Standard

Description

Stauff's three-way high pressure block body ball valves are designed for use as three-way selectors for hydraulic applications. This valve is a block body design ideal for inline assembly, has a trunnion style ball, and is supplied with a lever.
