XBV-4-N04-0001-M : Stauff Multi-Way Diverter Ball Valve, X-Bore, 90 Degree Action, 1/4" NPT, Carbon Steel, 7250psi, Four-Way
Roll over image to zoom in Click on image to zoom
XBV-4-N04-0001-M : Stauff Multi-Way Diverter Ball Valve, X-Bore, 90 Degree Action, 1/4" NPT, Carbon Steel, 7250psi, Four-Way

XBV-4-N04-0001-M : Stauff Multi-Way Diverter Ball Valve, X-Bore, 90 Degree Action, 1/4" NPT, Carbon Steel, 7250psi, Four-Way

Save $150.88
StauffSKU: 3404001758
3-5 Days
Price:
$506.99 $657.87

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Location Canton, Michigan
Port Size 1/4" NPT
O Ring Seals Viton
Pressure Rating 7250
Body Material Carbon Steel
Ball Seal Delrin
Ball Pattern X-Bore, 90-Degree Action
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Four-Way
Country of Manufacture Germany
Height 3.98
Length 3.94
Width 3.94
Weight 3.52
Ball Valve Type Standard

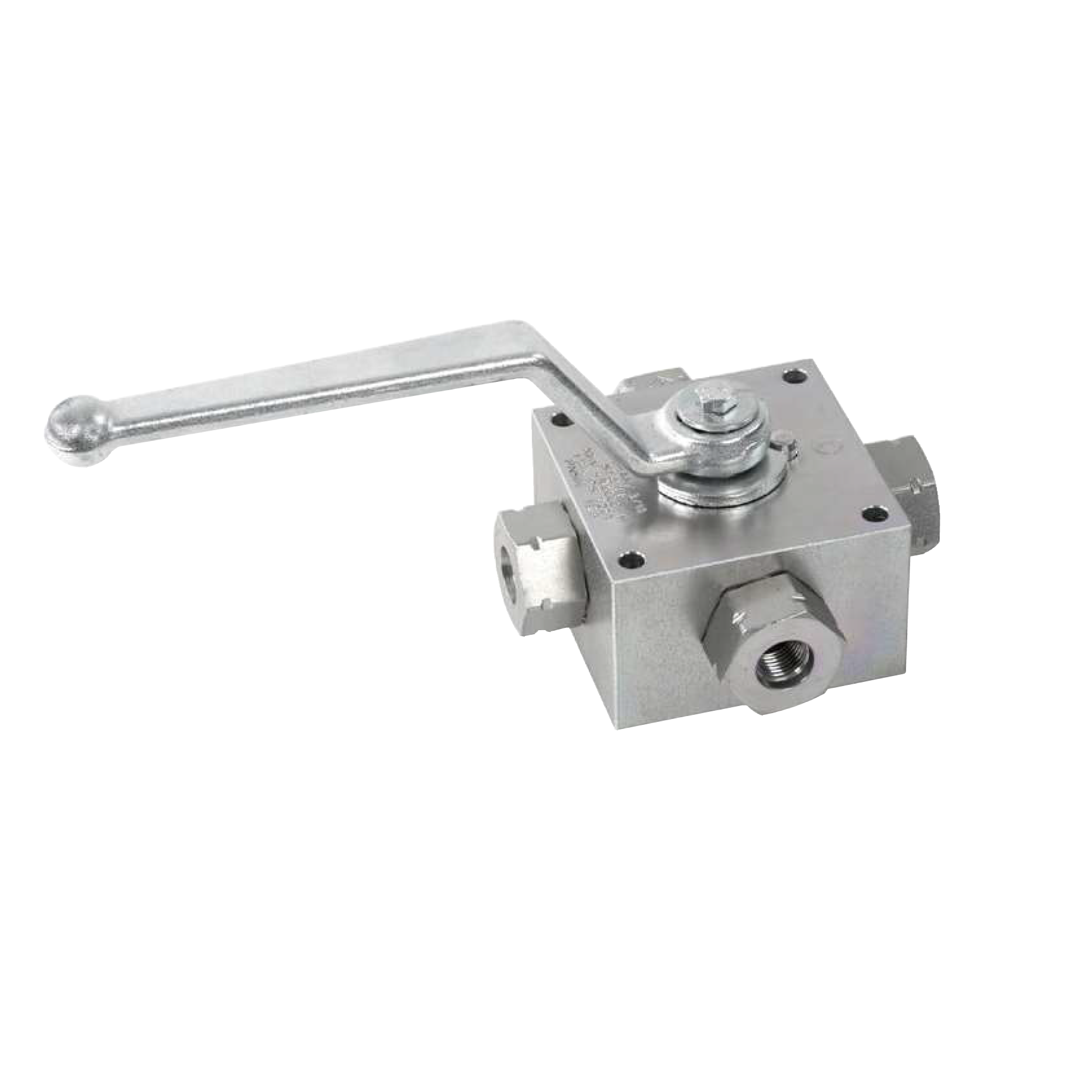

Description

Stauff's four-way high pressure block body ball valves are designed for use as three-way selectors for hydraulic applications. This valve is a block body design ideal for inline assembly, has a trunnion style ball, and is supplied with a lever.
