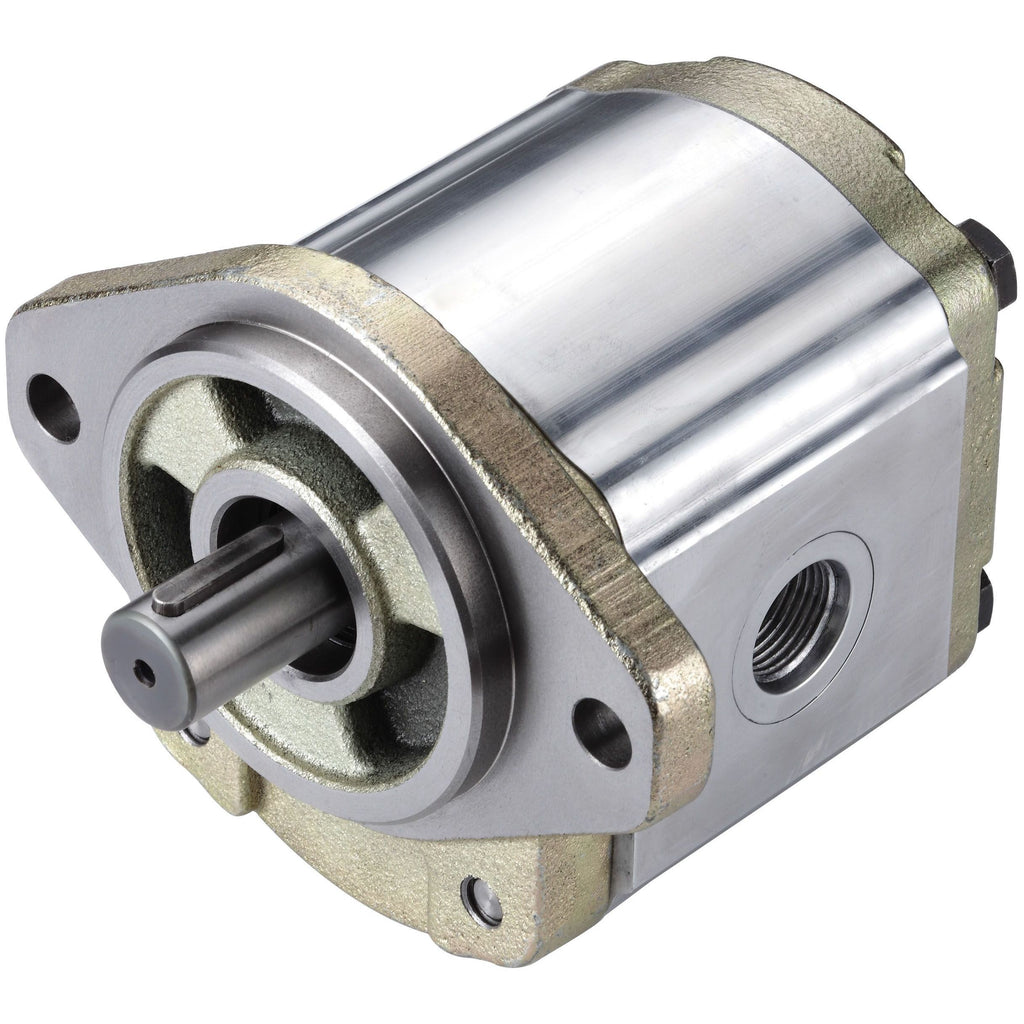

3GB8U270L : Honor Gear Pump, CCW Rotation, 70cc (4.27in3), 33.29 GPM, 2300psi, 2500 RPM, #20 SAE (1.25") In, #12 SAE (3/4") Out, Splined Shaft 13-Tooth, 16/32 Pitch, SAE B 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
3GB8U270L : Honor Gear Pump, CCW Rotation, 70cc (4.27in3), 33.29 GPM, 2300psi, 2500 RPM, #20 SAE (1.25") In, #12 SAE (3/4") Out, Splined Shaft 13-Tooth, 16/32 Pitch, SAE B 2-Bolt Mount

3GB8U270L : Honor Gear Pump, CCW Rotation, 70cc (4.27in3), 33.29 GPM, 2300psi, 2500 RPM, #20 SAE (1.25") In, #12 SAE (3/4") Out, Splined Shaft 13-Tooth, 16/32 Pitch, SAE B 2-Bolt Mount

HonorSKU: 3GB8U270L
6 Weeks
Price:
$512.08

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6 Weeks
Factory Location Corpus Christi, Texas
Material Aluminum Body, Cast Iron Flange and Cover
Shaft Size 13T 16/32DP
Shaft Type Splined
Port Location Side Ported
Pressure Rating 2300
Rotation Counter-Clockwise
Displacement 70
Gpm At 1800 Rpm 33.29
Max Speed 2500 RPM
Inlet Port #20 SAE (1.25")
Outlet Port #12 SAE (3/4")
Mount SAE B 2-Bolt
Country of Manufacture Taiwan
Height 5.886
Length 6.378
Width 6.85
Weight 22.9

Description

The Honor Gear Pump Group 3 Pumps are defined by the mounting flange and shaft end, as well as the function. Mounting flanges are available in SAE A 2-bolt, SAE B 2-bolt, or four-bolt European mounting flanges. Shaft ends can be keyed, spline, or tapered, depending on your requirements. Displacements are available from 1.1 to 5.5 in3. O-Ring side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
