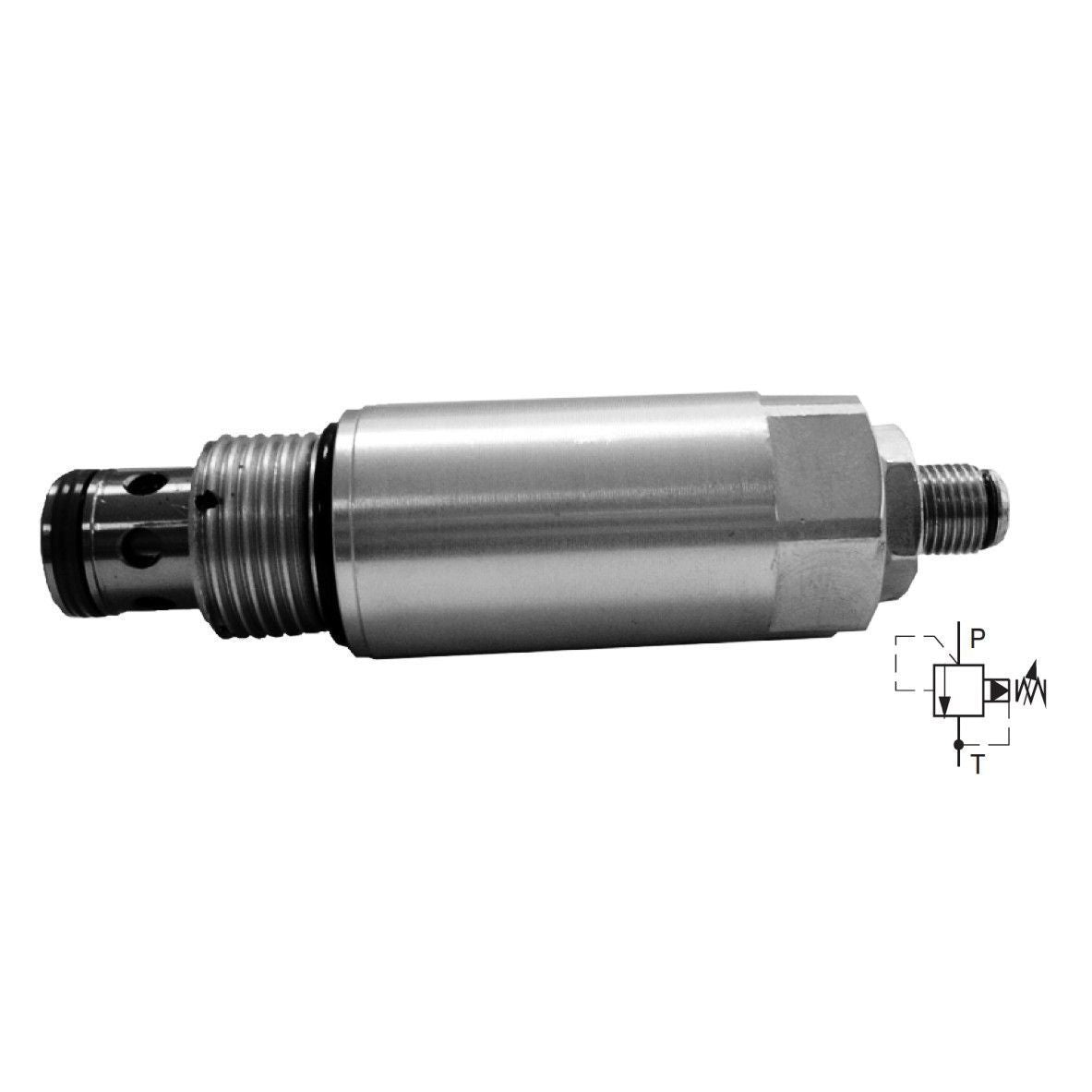

SR4A-B2/H35S-A : Argo Pressure Relief Valve, Spool Type, Pilot-Operated, 26 GPM, 5100psi, Allen Key Screw, Adjustable Up to 5080psi, C-10-2 Cavity
Roll over image to zoom in Click on image to zoom
SR4A-B2/H35S-A : Argo Pressure Relief Valve, Spool Type, Pilot-Operated, 26 GPM, 5100psi, Allen Key Screw, Adjustable Up to 5080psi, C-10-2 Cavity

SR4A-B2/H35S-A : Argo Pressure Relief Valve, Spool Type, Pilot-Operated, 26 GPM, 5100psi, Allen Key Screw, Adjustable Up to 5080psi, C-10-2 Cavity

Save $6.24
Argo-HytosSKU: 24513000
Same Day
15
65
Price:
$64.99 $71.23

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 65
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Operation Pilot-Operated
Valve Type Cartridge
Adjustment Type Allen Key Screw
Flow Rating 26
Pressure Rating 5100
Pressure Range Up to 5080psi
Cartridge Cavity C-10-2
Height 1.04
Length 3.94
Width 1.04
Weight 0.53

Description

The Argo-Hytos SR4A-B2 cartridge is a spool type, pilot-operated, hydraulic relief valve intended for use as a pressure limiting device. This valve is fast-acting with low hysteresis (reactive delay). Because of the absense of any internal seals, this valve shows excellent reseating and repeatability characteristics. It may be used as a main pressure control element, but due to its two-stage design, it is not recommended for safety applications where operating speed is critical.
