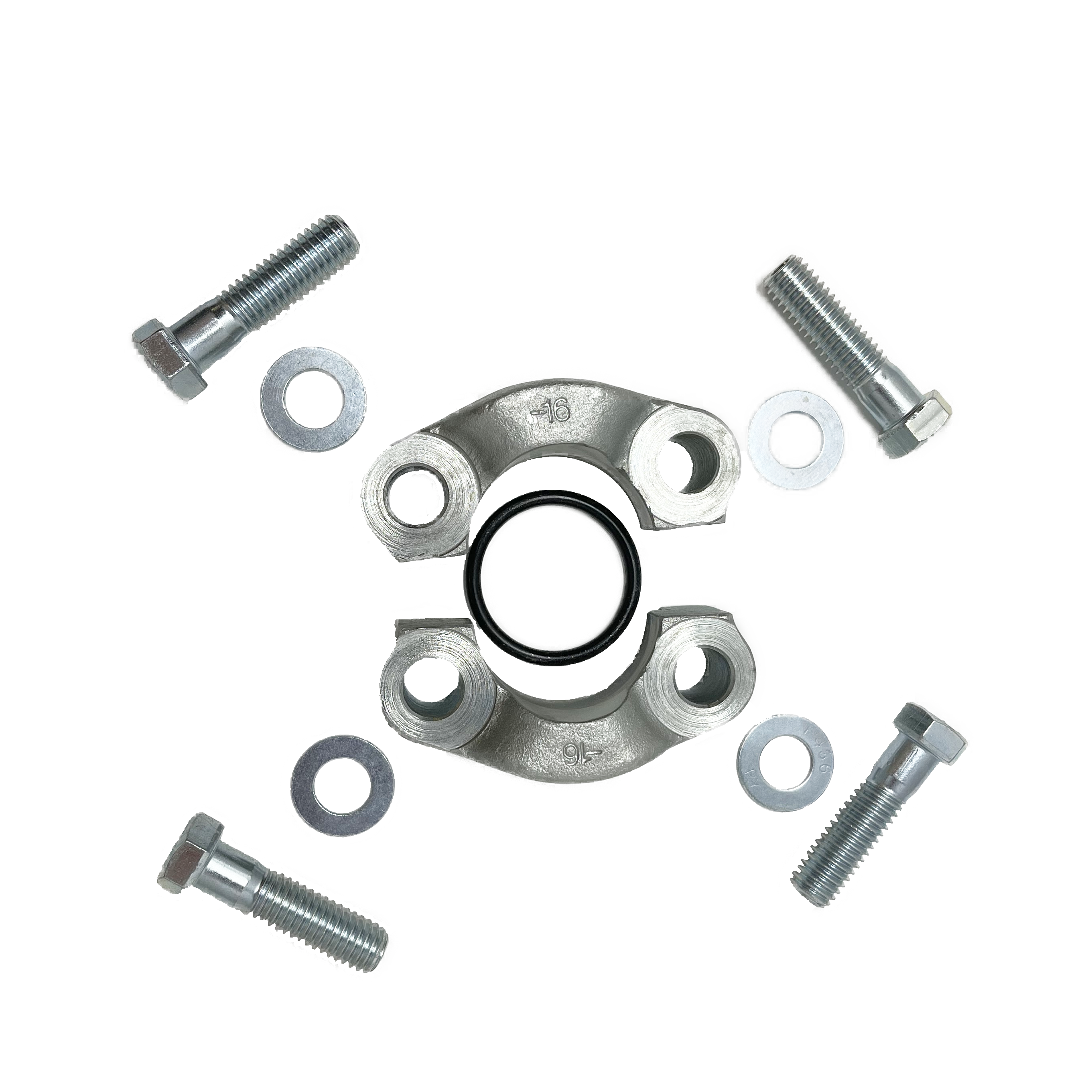

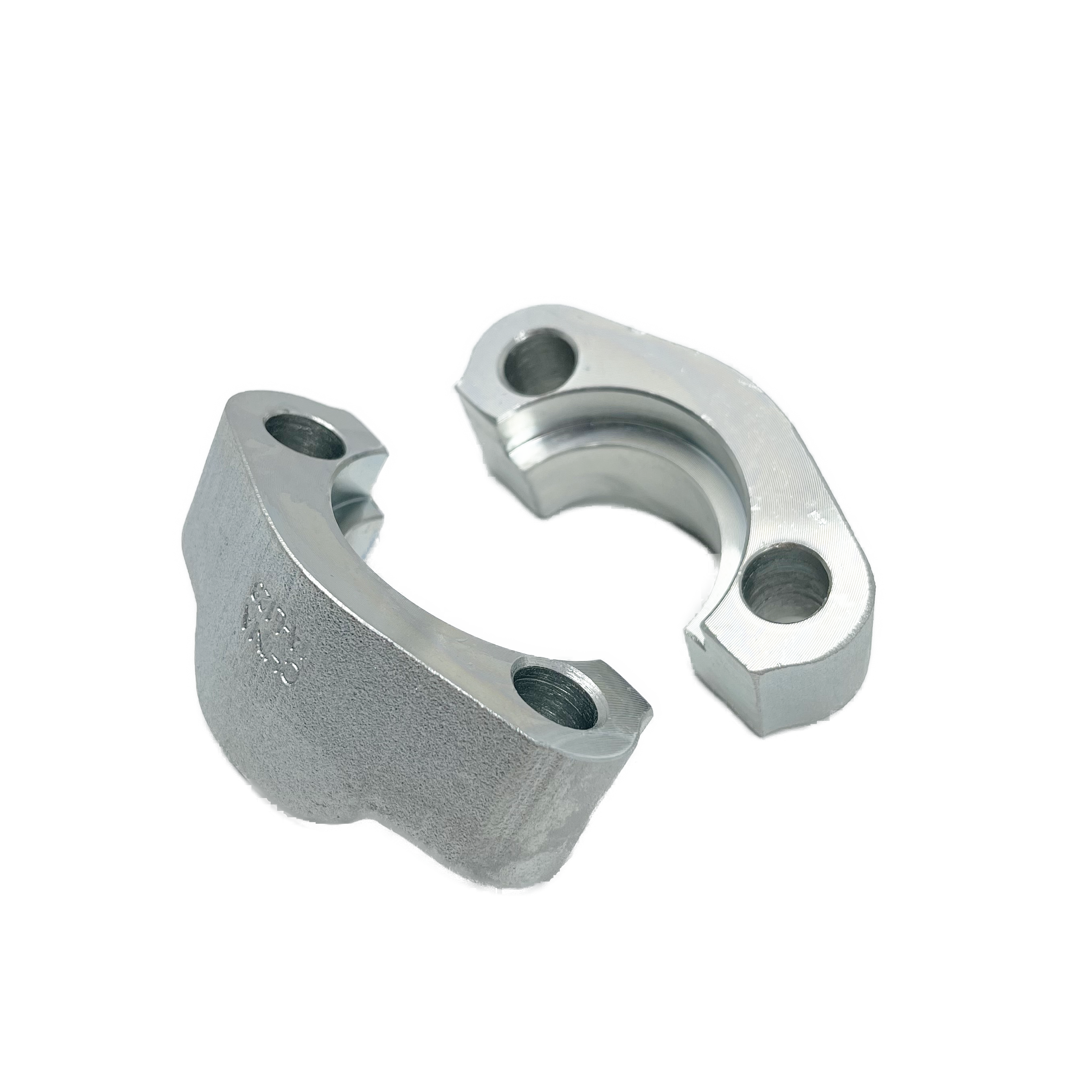

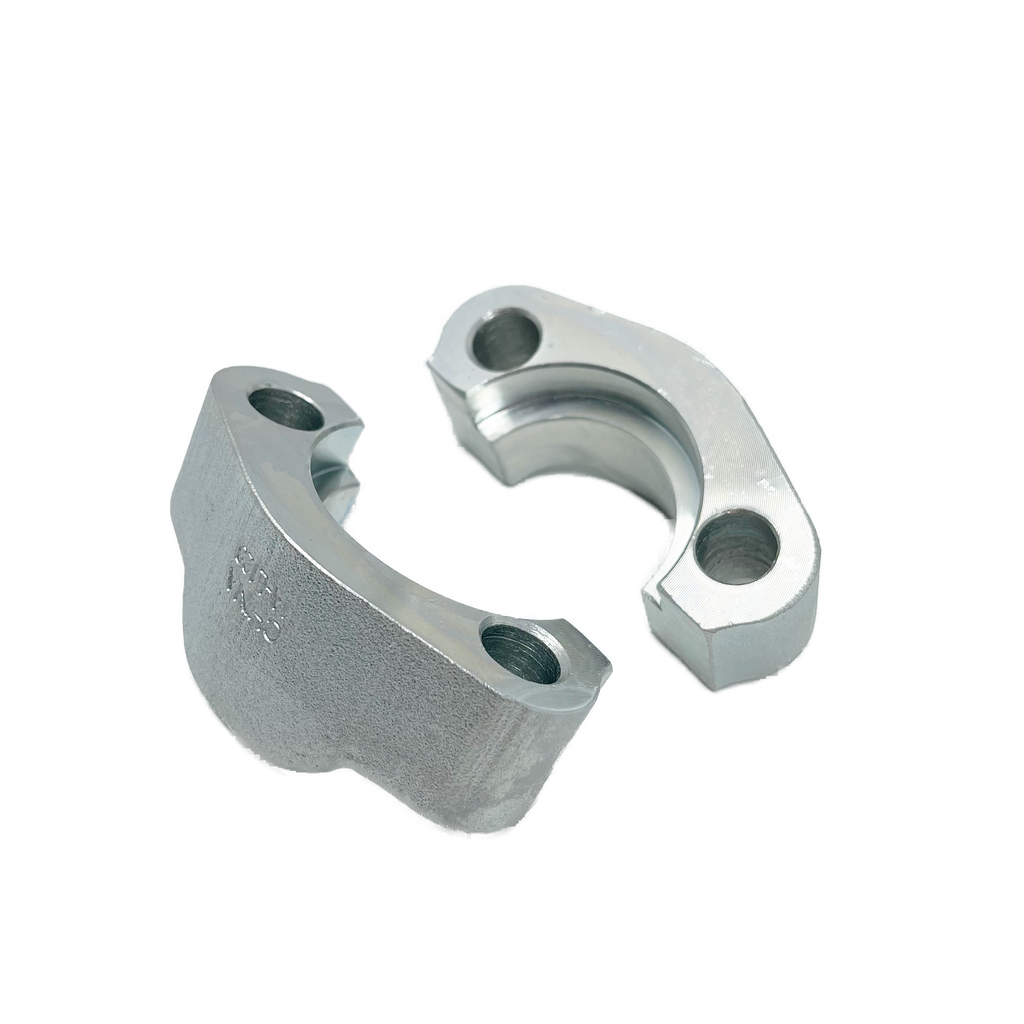

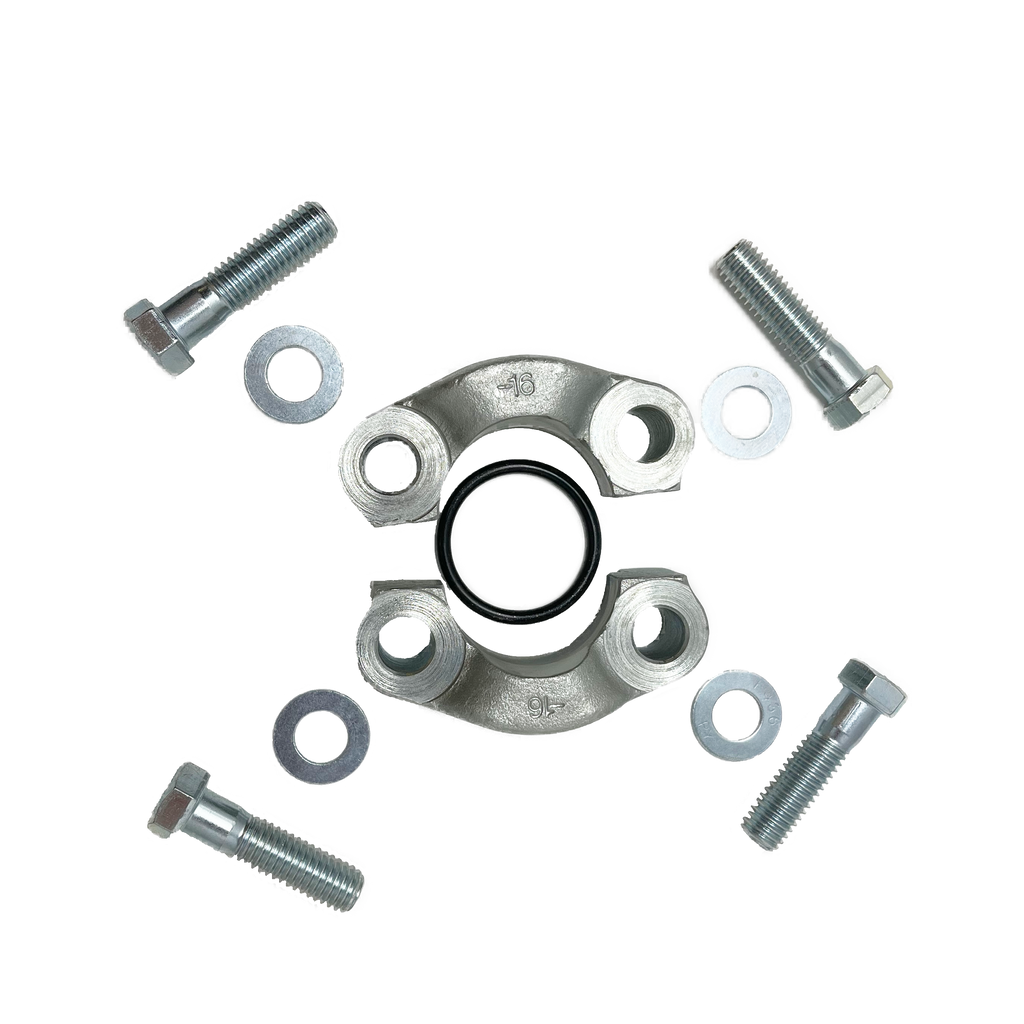

48SFXO : AFP Split Flange Kit, Steel, 3" Code 62, 6000psi, Includes two (2) halves, four (4) bolts, four (4) washers, and one (1) O-Ring
48SFXO : AFP Split Flange Kit, Steel, 3" Code 62, 6000psi, Includes two (2) halves, four (4) bolts, four (4) washers, and one (1) O-Ring
Roll over image to zoom in Click on image to zoom
48SFXO : AFP Split Flange Kit, Steel, 3" Code 62, 6000psi, Includes two (2) halves, four (4) bolts, four (4) washers, and one (1) O-Ring48SFXO : AFP Split Flange Kit, Steel, 3" Code 62, 6000psi, Includes two (2) halves, four (4) bolts, four (4) washers, and one (1) O-Ring

48SFXO : AFP Split Flange Kit, Steel, 3" Code 62, 6000psi, Includes two (2) halves, four (4) bolts, four (4) washers, and one (1) O-Ring

Anchor Fluid PowerSKU: 48SFXO
5 Days
Price:
$270.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Material Carbon Steel
Flange Code Code 62 Split Flange Kit
Flange Size 3"
Pressure Rating 6000
Sae Connector Flange Type Split Flange Kit
Fitting Angle Straight
Country of Manufacture China

Description

Anchor's broad range of hydraulic flange configurations provides design engineers and shop assembly personnel with total flexibility in the plumbing of hydraulic systems. Their wide variety of standard configurations are available OFF-THE-SHELF to meet today's reduced lead time requirements. Anchor Fluid Power split flange connections are manufactured according to SAE J518-1 and -2, as well as ISO 6162-1 and -2. These standards control dimensions, tolerances, and plating. Pressure ratings provided are for the flange connection. Adapting the flange to other connections such as braze tube, welded pipe, or threaded ports or stud ends could reduce maximum working pressure.
