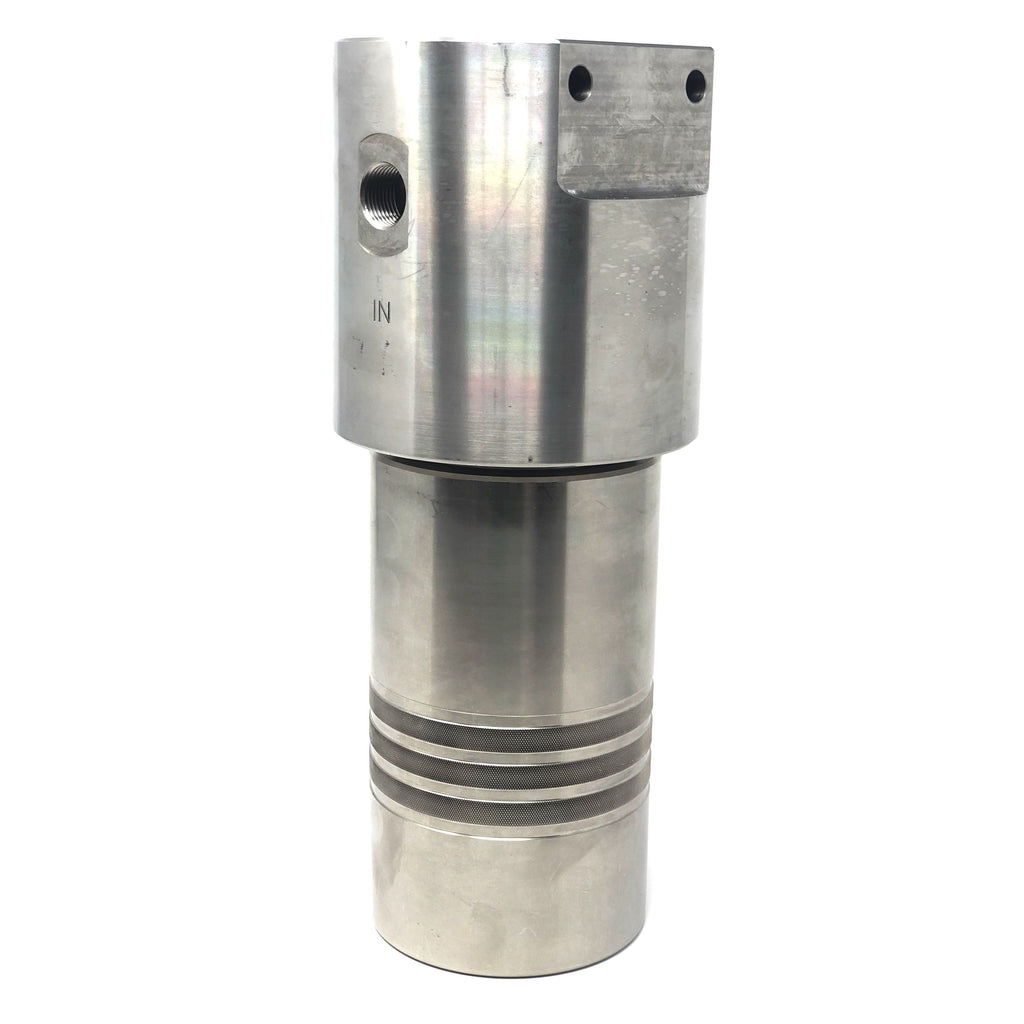

52P-164N-100SEN-V : Chase Ultra High Pressure Inline Filter, 20000psi, 1/4" NPT, 100 Micron, With Visual Indicator, No Bypass
Roll over image to zoom in Click on image to zoom
52P-164N-100SEN-V : Chase Ultra High Pressure Inline Filter, 20000psi, 1/4" NPT, 100 Micron, With Visual Indicator, No Bypass

52P-164N-100SEN-V : Chase Ultra High Pressure Inline Filter, 20000psi, 1/4" NPT, 100 Micron, With Visual Indicator, No Bypass

Chase FiltersSKU: 52P-164N-100SEN-V
2-3 Weeks
Price:
$10,104.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 2-3 Weeks
Factory Location Hampton, Virginia
Material 17-4PH Stainless Steel
Port Size 1/4" NPT
Flow Rating 16
Micron 100 Micron
Replacement Elements 31E-100SN
O Ring Seals Buna
Valve Options Without Bypass Valve
Pressure Rating 20000
Country of Manufacture United States
Height 5
Length 11.6
Width 5
Weight 0

Description

The 52-Series 17-4SS In-Line Filters from Chase Filter are rated for operating pressures up to 20,000psi. These filters are made of 17-4PH Stainless Steel Construction and are rated for flows up to 24.
