Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-2 Weeks |
| Factory Location | Houston, TX |
| Material | Stainless Steel |
| Shape | Straight |
| Pressure Rating | 15000 |
| Series | UPC5406-NJ |
| Country of Manufacture | United States |
| Side 1 Gender | Female |
| Side 1 Size | 0.375 (3/8)" |
| Side 1 Type | NPT |
| Side 2 Gender | Male |
| Side 2 Size | 0.375 (3/8") |
| Side 2 Type | JIC |
Description

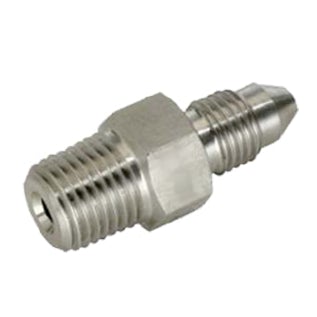

Our high pressure stainless JIC adapters seal with a 37 degree cone seal and are rated for working pressures up to 15,000 psi (689 bar). NPT (National Pipe Taper) fittings are available in working pressures to 15,000 psi (1034 bar). However, working pressures may be decreased depending upon thread size. JIC fittings are manufactured from cold worked 316 stainless steel. All JIC fittings and adapters are available in special material upon request.
