Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Stock | 56 |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 5000 |
| Series | 6402-O |

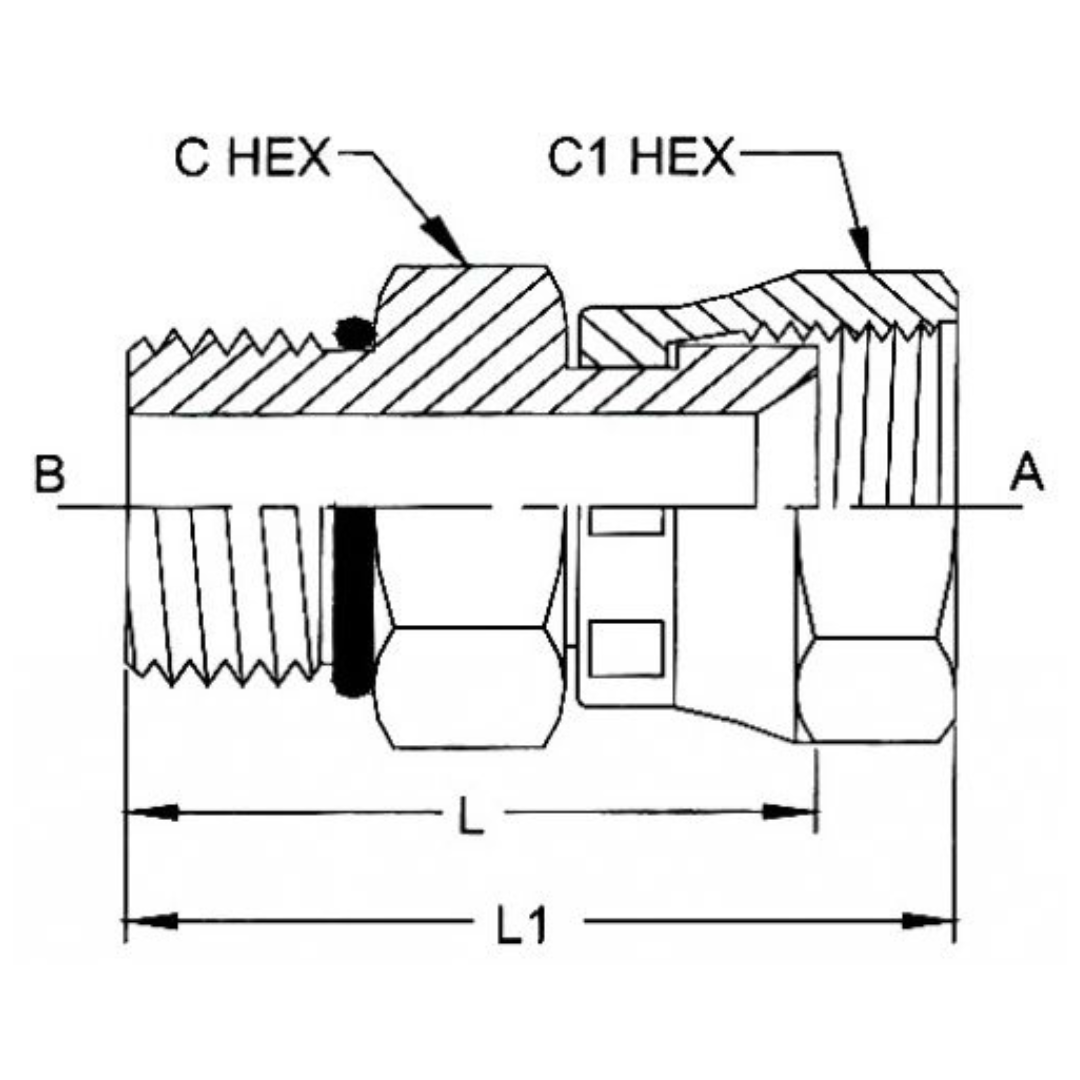

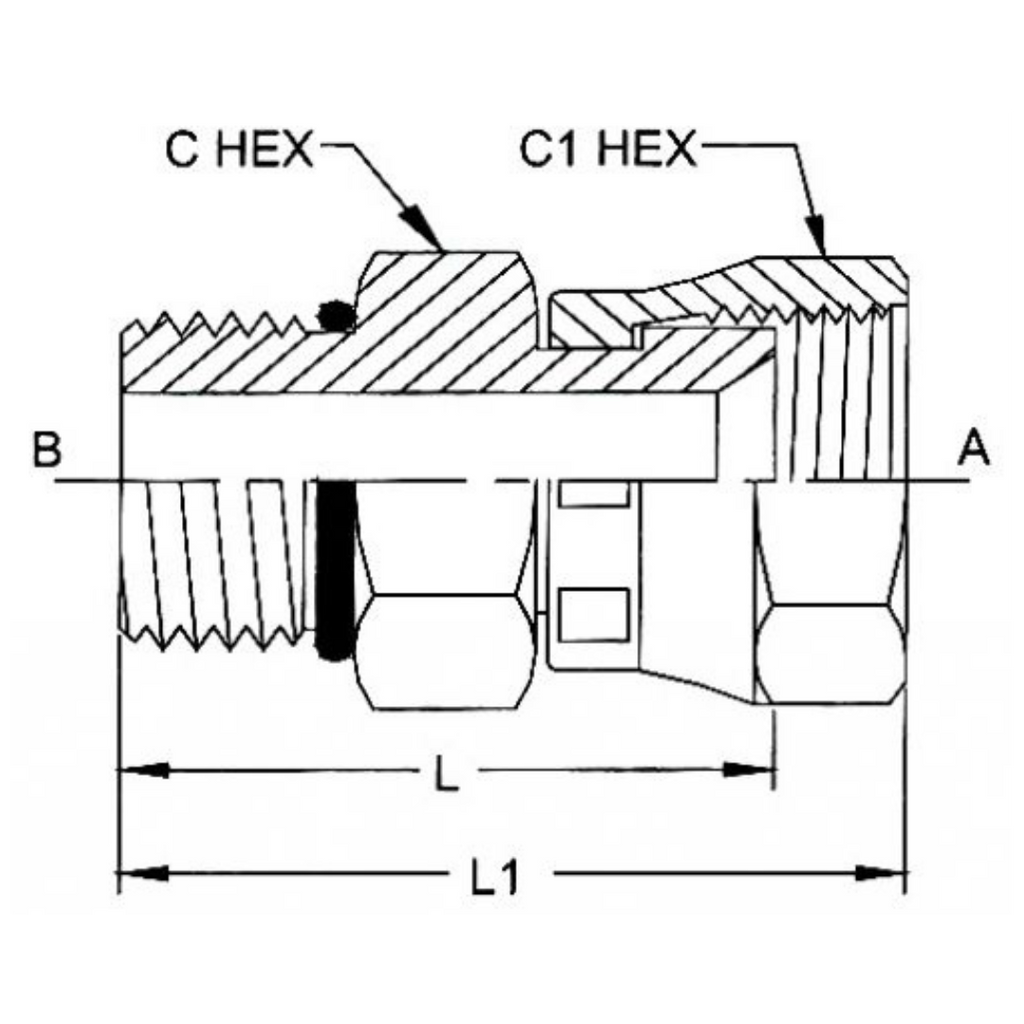

| Special Dims | L Length 1.390, L1 Length 1.890, C Hex 1.000, C1 Hex 1.000, A Drill 0.484, B Drill 0.484, B Drill 0.484, B1 SAE 37-Degree 7/8-14, B1 SAE ORB 7/8-14 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | JIC |
Description

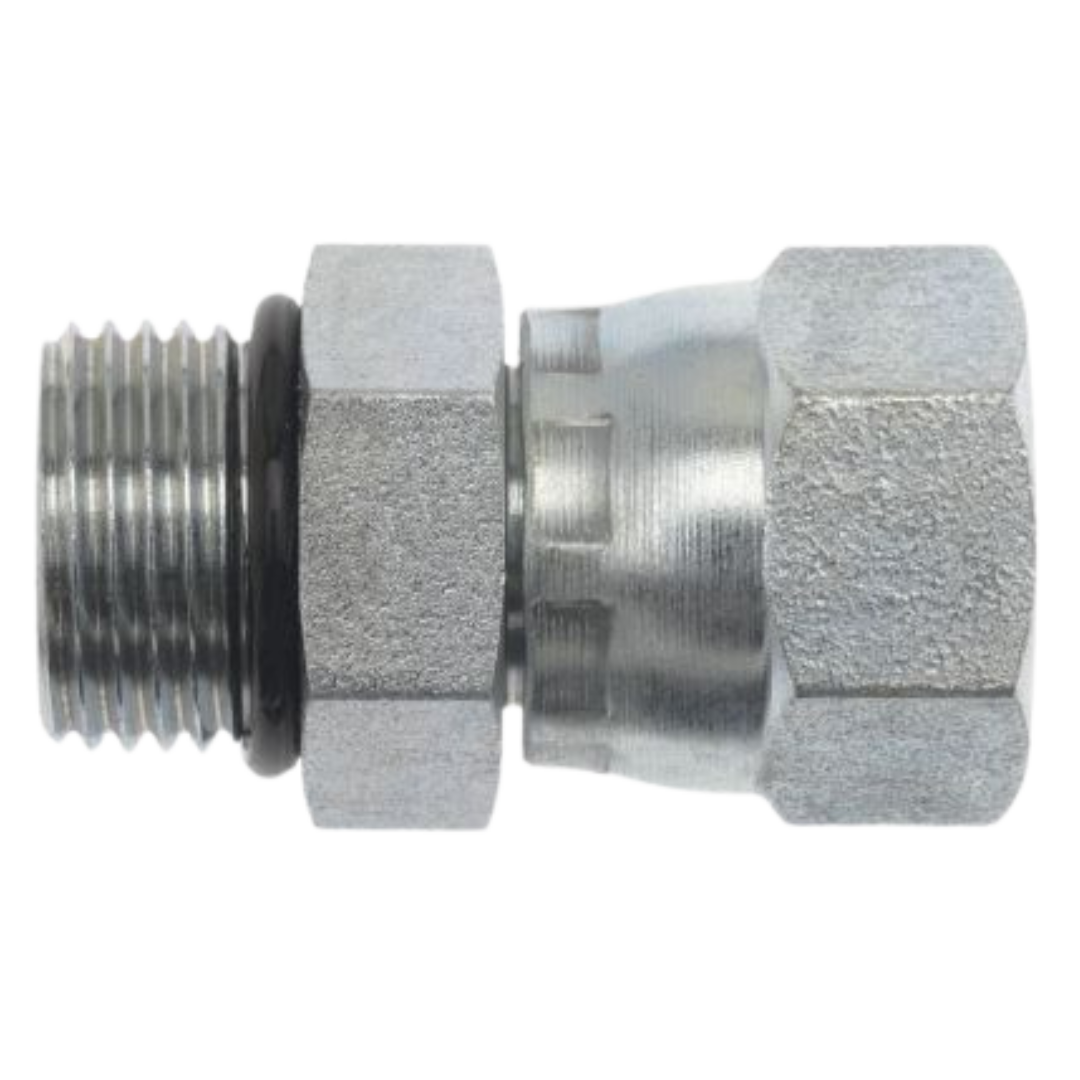

The Series 6402-O Straight Male ORB x Female JIC Swivel hydraulic adapters combine the reliability of ORB and JIC fittings for medium to high-pressure hydraulic systems. ORB fittings, commonly made from carbon, nickel-plated carbon, or stainless steel, feature a straight UNF thread with an O-ring that creates a leak-tight seal when compressed into a chamfered surface on the female port. This design, commonly used in accordance with NFPA guidelines, is ideal for preventing leaks. On the other hand, JIC fittings have a 37-degree flare seating surface with parallel threads, providing a secure mechanical connection when the male flared fitting mates with the female coned seat. This combination of ORB and JIC fittings ensures durable, leak-free performance in various hydraulic applications, while also offering the convenience of reusable components. The adapters are typically constructed from durable carbon steel for long-lasting strength and reliability.
