Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 3-5 Days |
Factory Location | Twinsburg, Ohio or Houston, Texas |
Material | Carbon Steel |
Shape | Straight |
Adapter Notes | LIGHT DUTY |
Country of Manufacture | Canada |

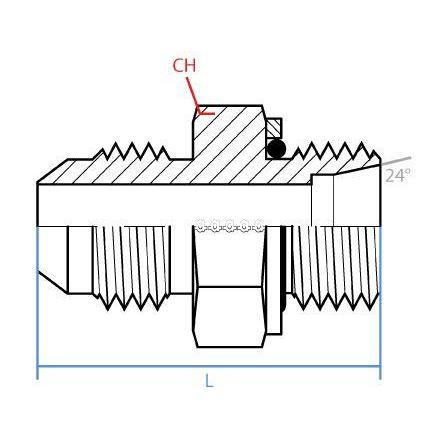

Length | 42.9mm |
Side 1 Gender | MALE |
Side 1 Size | 7/8-14 (-10) |
Side 1 Type | JIC |
Side 2 Gender | MALE |
Side 2 Size | M22 X 1.5 (-L15) |
Side 2 Type | DIN TUBE |
Description
For Adaptall products, the thread types for each description are displayed hose/tube and/or male side first, then port and/or female side (please refer to the Conversion Adapter Identification Guide for details). If both sides of a fitting are the same (both hose/tube or both port) they are displayed alphabetically. For example, a BSPP x NPT nipple has two port threads; according to alphabetization, this description would read BSPP male x NPT male. Part descriptions are then arranged in alphabetical order, with males appearing before females. For example, a male BSPP is typically the first listed while a female SAE O-ring Boss is last. Thread types are displayed first to allow for quick searching along the margin (as opposed to thread gender first which is common).
