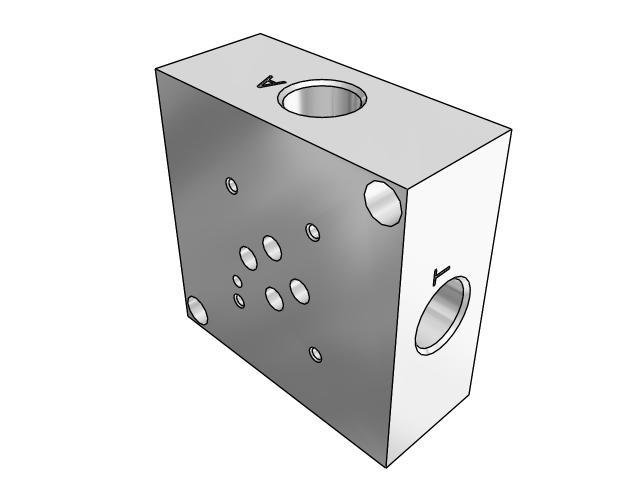

AD03SPS6S : Daman Subplate, Aluminum, 3000psi, D03 (NG6), Side Ported, #6 SAE (3/8), No Relief
Roll over image to zoom in Click on image to zoom
AD03SPS6S : Daman Subplate, Aluminum, 3000psi, D03 (NG6), Side Ported, #6 SAE (3/8), No Relief

AD03SPS6S : Daman Subplate, Aluminum, 3000psi, D03 (NG6), Side Ported, #6 SAE (3/8), No Relief

DamanSKU: AD03SPS6S
4-5 Weeks
Price:
$54.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-5 Weeks
Factory Location Mishawaka, Indiana
Solid Model Click here to download
Material Aluminum
Port Size #6 SAE (3/8")
Pressure Rating 3000
Valve Pattern D03 (NG6)
Relief Option No Relief
Height 2.5 inches
Length 2.5 inches
Width 1 inch

Description

Daman Subplates are also known as mounting pads, sub bases, and base plates. Subplates give valves a mounting pad and allow for many different port styles and locations to meet the design requirements of the system. Daman uses the term 'subplates' to refer to mounting only one valve in a low profile (height) configuration. Manifolds are used to refer to applications where more than one valve will be mounted and is generally taller (height).
