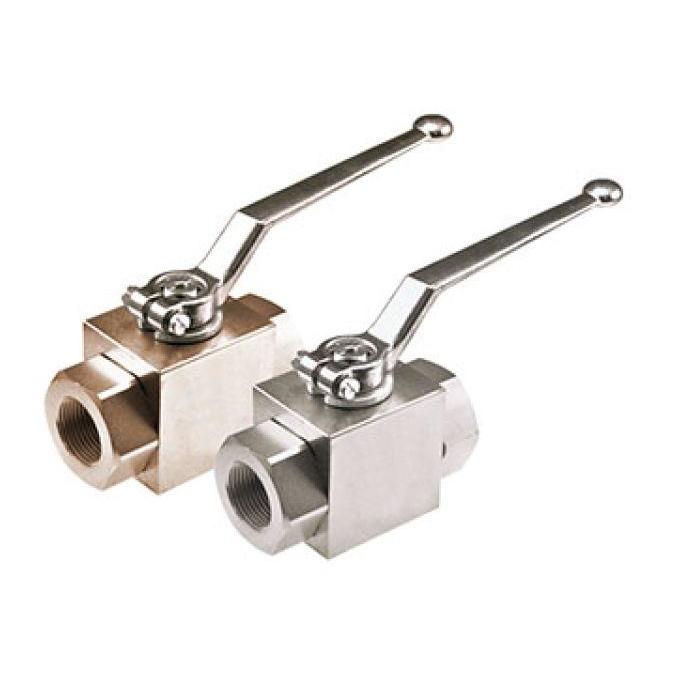

AE2S#20R-11DB : AFP 2-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #20 SAE (1.25") Reduced Bore with Lock
Roll over image to zoom in Click on image to zoom
AE2S#20R-11DB : AFP 2-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #20 SAE (1.25") Reduced Bore with Lock

AE2S#20R-11DB : AFP 2-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #20 SAE (1.25") Reduced Bore with Lock

Anchor Fluid PowerSKU: AE2S#20R-11DB
5 Days
Price:
$149.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size #20 SAE (1.25")
Style Two-Way Block Body Threaded Ball Valve
O Ring Seals Buna
Pressure Rating 5075
Body Material Carbon Steel
Series AE2
Ball Seal POM
Ball Pattern On/Off
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Two-Way
Country of Manufacture China
Height 2.17
Length 4.72
Width 2.56
Weight 5.2
Ball Valve Type Standard

Description

The Anchor Fluid Power AE2 Series ball valve is a two-way block body carbon steel design with zinc chromate plating.
