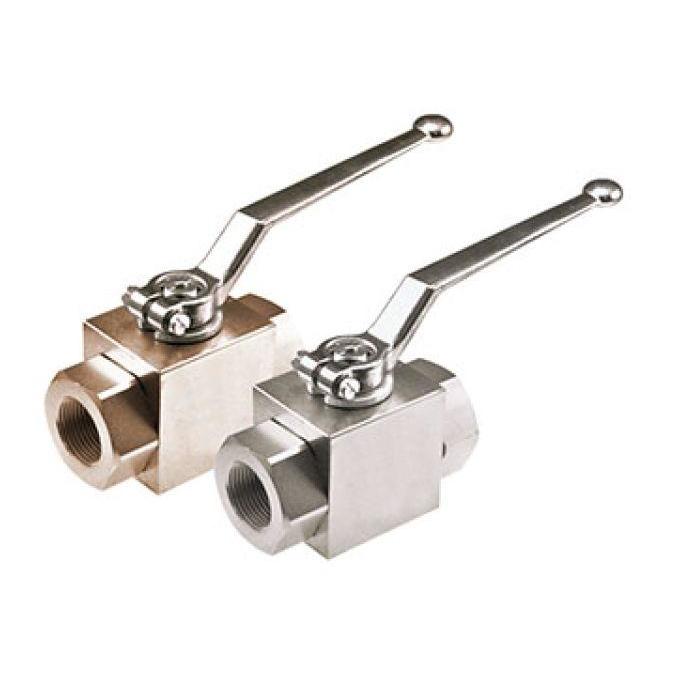

AE2S#8-11DBL : AFP 2-Way Block Body Threaded Ball Valve, 7250psi rated, Steel, #8 SAE (1/2") with Lock
Roll over image to zoom in Click on image to zoom
AE2S#8-11DBL : AFP 2-Way Block Body Threaded Ball Valve, 7250psi rated, Steel, #8 SAE (1/2") with Lock

AE2S#8-11DBL : AFP 2-Way Block Body Threaded Ball Valve, 7250psi rated, Steel, #8 SAE (1/2") with Lock

Anchor Fluid PowerSKU: AE2S#8-11DBL
5 Days
Price:
$79.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size #8 SAE (1/2")
Style Two-Way Block Body Threaded Ball Valve
O Ring Seals Buna
Pressure Rating 7250
Body Material Carbon Steel
Series AE2
Ball Seal POM
Ball Pattern On/Off
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Two-Way
Country of Manufacture China
Height 1.46
Length 3.27
Width 1.69
Weight 1.7
Ball Valve Type Standard

Description

The Anchor Fluid Power AE2 Series ball valve is a two-way block body carbon steel design with zinc chromate plating.
