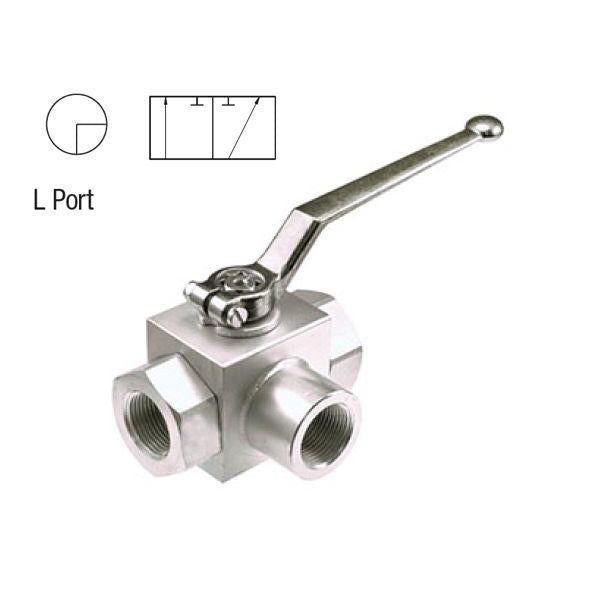

AE3KLS#12-11DBL : AFP 3-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #12 SAE (3/4") with Lock
Roll over image to zoom in Click on image to zoom
AE3KLS#12-11DBL : AFP 3-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #12 SAE (3/4") with Lock

AE3KLS#12-11DBL : AFP 3-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #12 SAE (3/4") with Lock

Anchor Fluid PowerSKU: AE3KLS#12-11DBL
5 Days
Price:
$249.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size #12 SAE (3/4")
Style Three-Way Block Body Threaded Ball Valve
O Ring Seals Buna
Pressure Rating 5075
Body Material Carbon Steel
Series AE3
Ball Seal POM
Ball Pattern L-Bore Diverter
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Three-Way
Country of Manufacture China
Height 2.17
Length 3.74
Width 2.95
Weight 3.5
Ball Valve Type Standard

Description

The Anchor Fluid Power AE3K Series ball valve is a three-way block body threaded, 'true' 3-way valve, meaning this valve may be fully pressurized on all ports. This valve also offers a carbon steel design with zinc chromate plating and is RoHS compliant.
