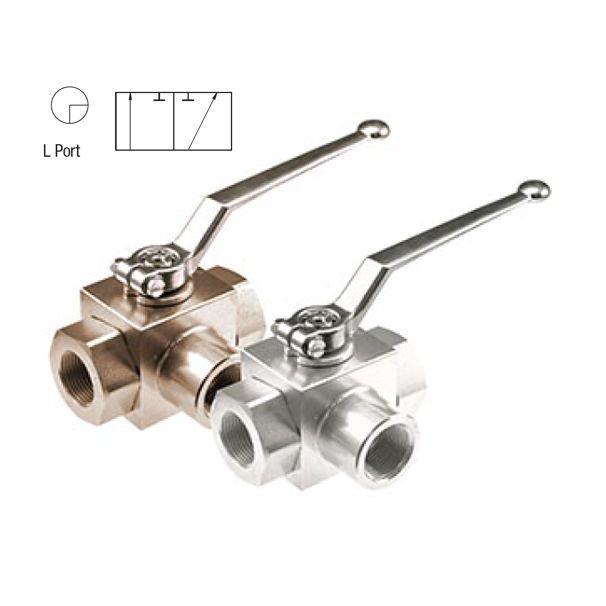

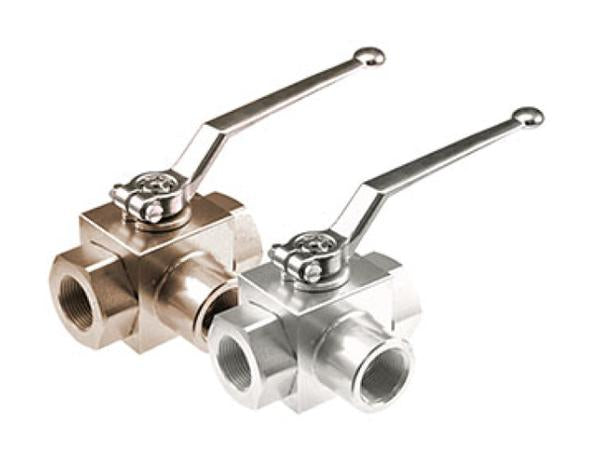

AE3LS#8-11DBL : AFP 3-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #8 SAE (1/2") with Lock
AE3LS#8-11DBL : AFP 3-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #8 SAE (1/2") with Lock
Roll over image to zoom in Click on image to zoom
AE3LS#8-11DBL : AFP 3-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #8 SAE (1/2") with LockAE3LS#8-11DBL : AFP 3-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #8 SAE (1/2") with Lock

AE3LS#8-11DBL : AFP 3-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #8 SAE (1/2") with Lock

Anchor Fluid PowerSKU: AE3LS#8-11DBL
5 Days
Price:
$135.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size #8 SAE (1/2")
Style Three-Way Block Body Threaded Ball Valve
O Ring Seals Buna
Pressure Rating 5075
Body Material Carbon Steel
Series AE3
Ball Seal POM
Ball Pattern L-Bore Diverter
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Three-Way
Country of Manufacture China
Height 1.69
Length 3.27
Width 2.3
Weight 1.8
Ball Valve Type Standard

Description

The Anchor Fluid Power AE3 Series ball valve is a three-way block body threaded, carbon steel design with zinc chromate plating and RoHS compliant.
