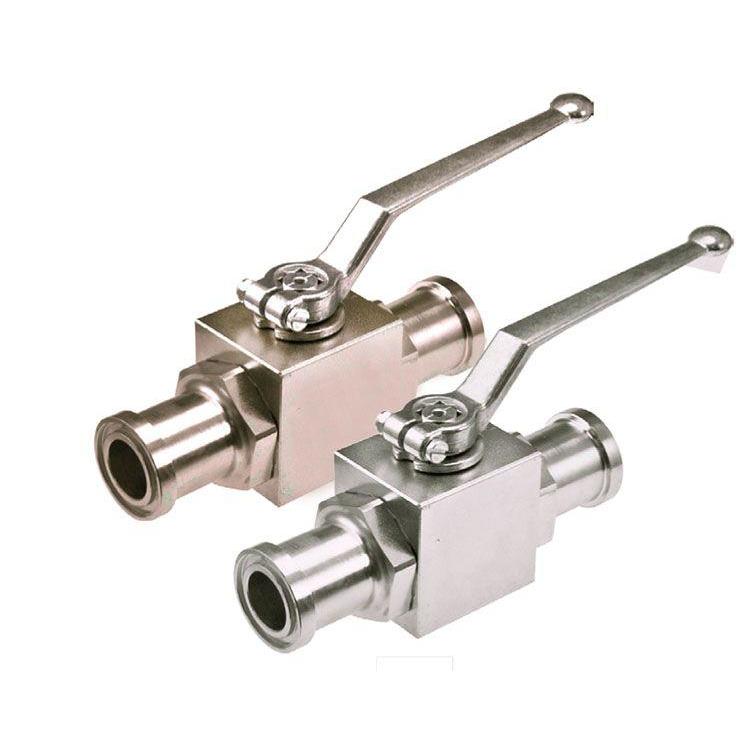

AES3#12-11DBL : AFP 2-Way Block Body Flange Head Ball Valve, 5000psi rated, Steel, 3/4" C61 with Lock
Roll over image to zoom in Click on image to zoom
AES3#12-11DBL : AFP 2-Way Block Body Flange Head Ball Valve, 5000psi rated, Steel, 3/4" C61 with Lock

AES3#12-11DBL : AFP 2-Way Block Body Flange Head Ball Valve, 5000psi rated, Steel, 3/4" C61 with Lock

Anchor Fluid PowerSKU: AES3#12-11DBL
5 Days
Price:
$220.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size 3/4" Code 61
Style Two-Way Block Body Flange Head Ball Valve
O Ring Seals Buna
Pressure Rating 5000
Body Material Carbon Steel
Series AES
Ball Seal POM
Ball Pattern On/Off
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Two-Way
Country of Manufacture China
Height 2.17
Length 6.38
Width 1.77
Weight 3.8
Ball Valve Type Standard

Description

The Anchor Fluid Power AES Series ball valve is a two-way block body flange head carbon steel design with zinc chromate plating and is RoHS compliant.
