Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 5 Days |
| Factory Location | Cincinnati, Ohio and Houston, Texas |
| Port Size | 1" SAE Code 61 |
| Style | Two-Way Block Body Flange Head Ball Valve |
| O Ring Seals | Buna |
| Pressure Rating | 5000 |
| Body Material | Carbon Steel |
| Series | AES |
| Ball Seal | POM |
| Ball Pattern | On/Off |
| Ball Valve Pressure Range | High Pressure (5000 to 9999psi) |
| Flow Style | Two-Way |
| Country of Manufacture | China |
| Height | 2.56 |
| Length | 7 |
| Width | 2.17 |
| Weight | 5.7 |
| Ball Valve Type | Standard |
Description

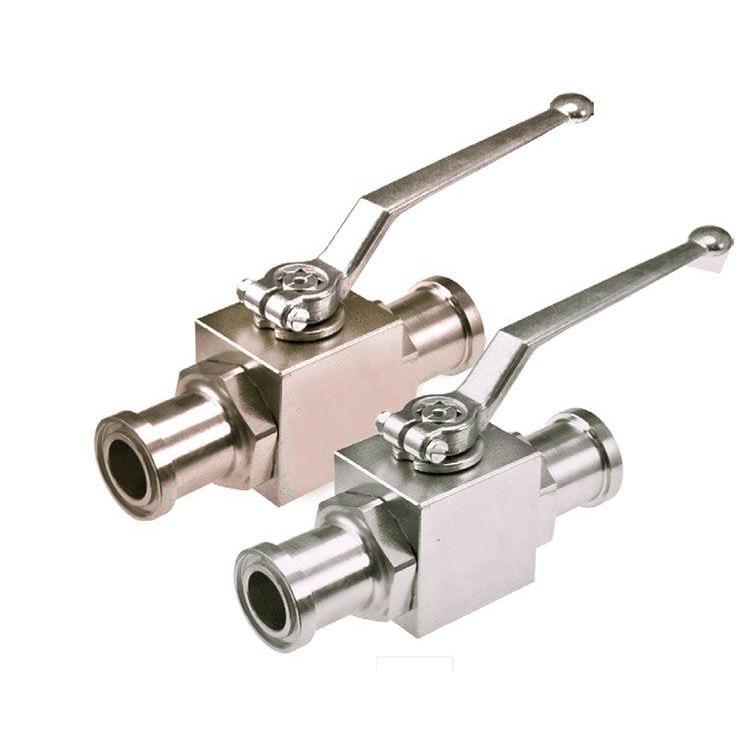

The Anchor Fluid Power AES Series ball valve is a two-way block body flange head carbon steel design with zinc chromate plating and is RoHS compliant.
