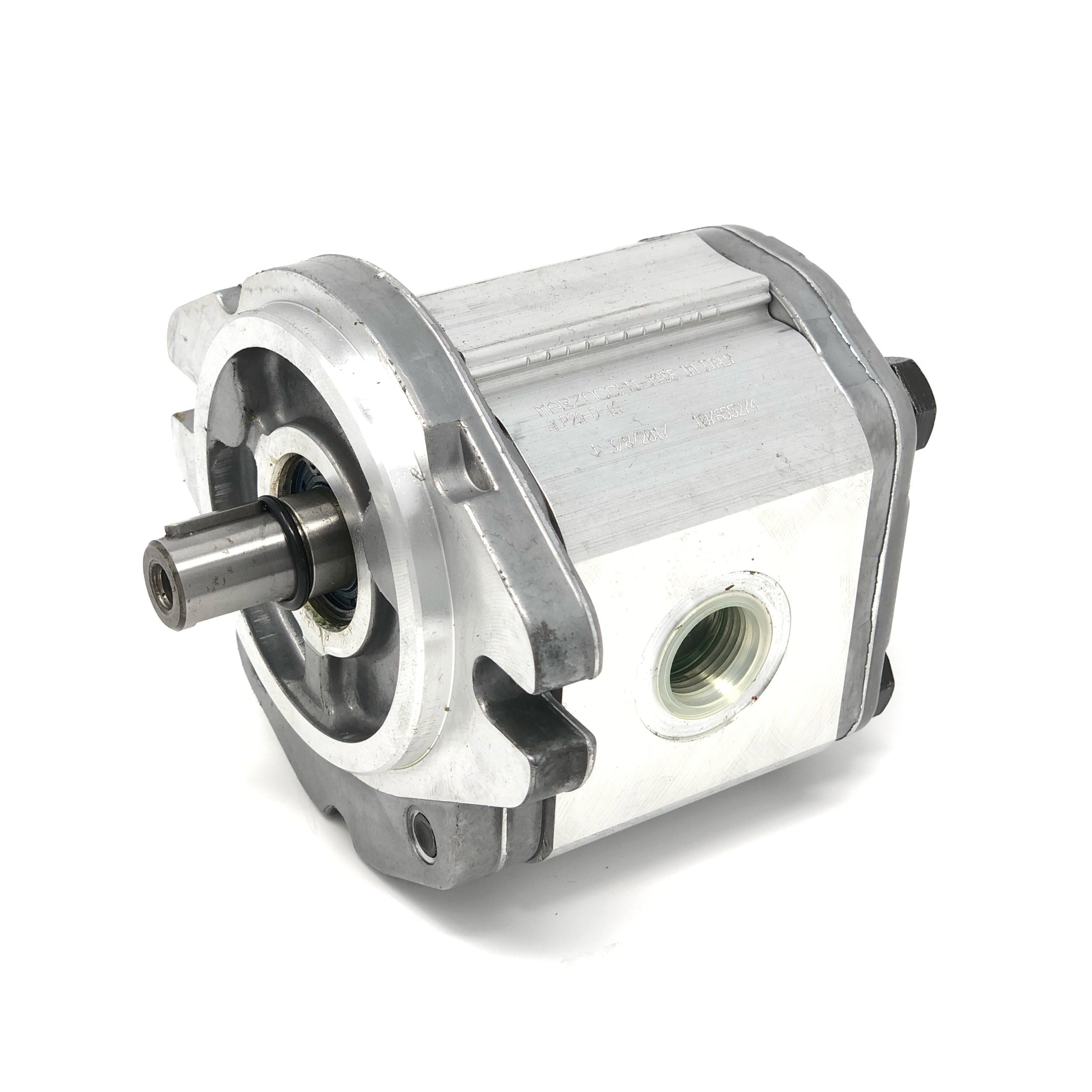

ALP1A-D-16 : Marzocchi Gear Pump, CW, 11cc (0.671in3), 5.23 GPM, 2465psi, 2500 RPM, #10 SAE (5/8") In, #8 SAE (1/2") Out, Keyed Shaft 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
ALP1A-D-16 : Marzocchi Gear Pump, CW, 11cc (0.671in3), 5.23 GPM, 2465psi, 2500 RPM, #10 SAE (5/8") In, #8 SAE (1/2") Out, Keyed Shaft 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount

ALP1A-D-16 : Marzocchi Gear Pump, CW, 11cc (0.671in3), 5.23 GPM, 2465psi, 2500 RPM, #10 SAE (5/8") In, #8 SAE (1/2") Out, Keyed Shaft 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount

MarzocchiSKU: ALP1A-D-16
16-18 Weeks
Price:
$211.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 1/2" Bore x 1/8" Key
Shaft Type Keyed
Pressure Rating 2465
Rotation Clockwise
Displacement 11
Gpm At 1800 Rpm 5.23
Max Speed 2500RPM
Inlet Port #10 SAE (5/8")
Outlet Port #8 SAE (1/2")
Mount SAE AA 2-Bolt
Country of Manufacture Italy
Height 3.41
Length 4.04
Width 4.35

Description

Marzocchi ALP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The pump body, flange, and cover are made of special high-resistant aluminum alloys for minimized deformation, even under high pressure. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
