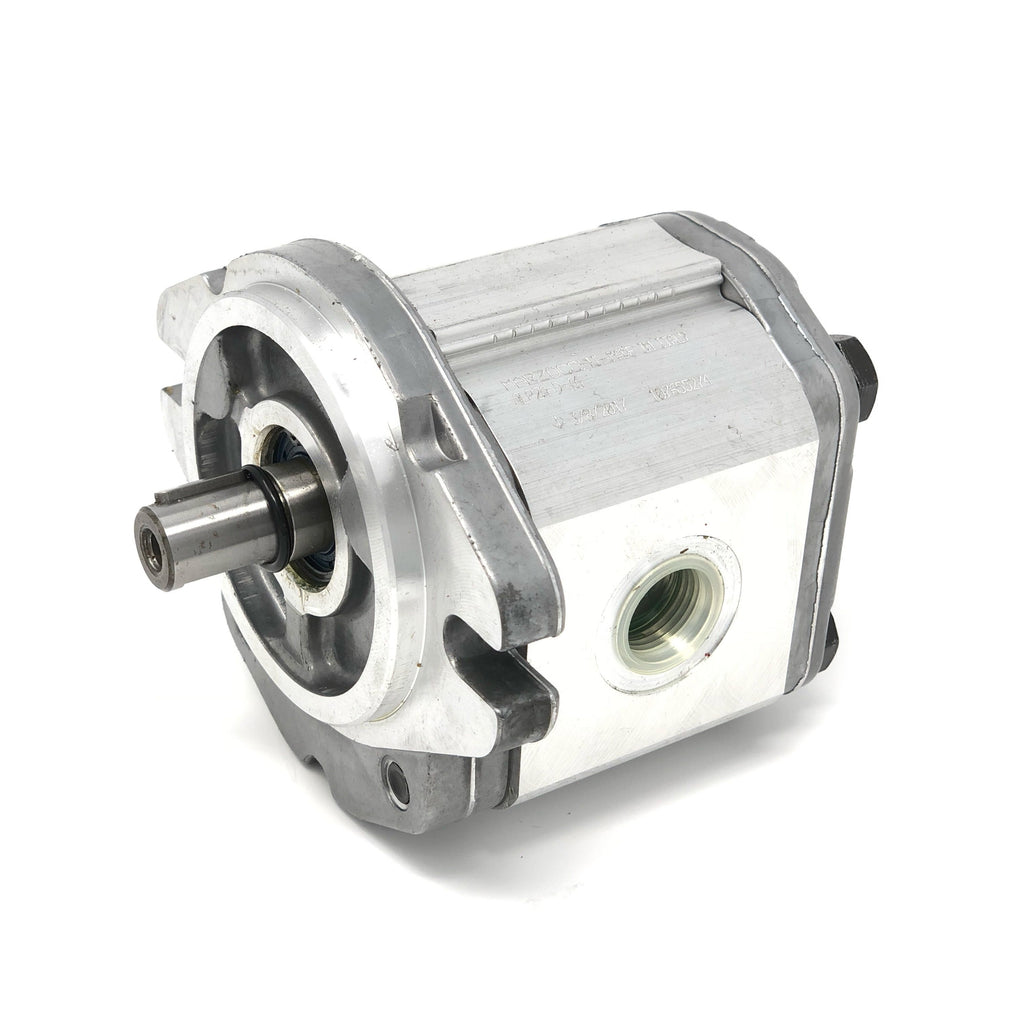

ALP1A-D-7 : Marzocchi Gear Pump, CW, 5.2cc (0.3172in3), 2.47 GPM, 3335psi, 3500 RPM, #8 SAE (1/2") In, #6 SAE (3/8") Out, Keyed Shaft 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
ALP1A-D-7 : Marzocchi Gear Pump, CW, 5.2cc (0.3172in3), 2.47 GPM, 3335psi, 3500 RPM, #8 SAE (1/2") In, #6 SAE (3/8") Out, Keyed Shaft 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount

ALP1A-D-7 : Marzocchi Gear Pump, CW, 5.2cc (0.3172in3), 2.47 GPM, 3335psi, 3500 RPM, #8 SAE (1/2") In, #6 SAE (3/8") Out, Keyed Shaft 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount

MarzocchiSKU: ALP1A-D-7
16-18 Weeks
Price:
$195.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 1/2" Bore x 1/8" Key
Shaft Type Keyed
Pressure Rating 3335
Rotation Clockwise
Displacement 5.2
Gpm At 1800 Rpm 2.47
Max Speed 3500RPM
Inlet Port #8 SAE (1/2")
Outlet Port #6 SAE (3/8")
Mount SAE AA 2-Bolt
Country of Manufacture Italy
Height 3.41
Length 4.04
Width 3.68

Description

Marzocchi ALP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The pump body, flange, and cover are made of special high-resistant aluminum alloys for minimized deformation, even under high pressure. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
