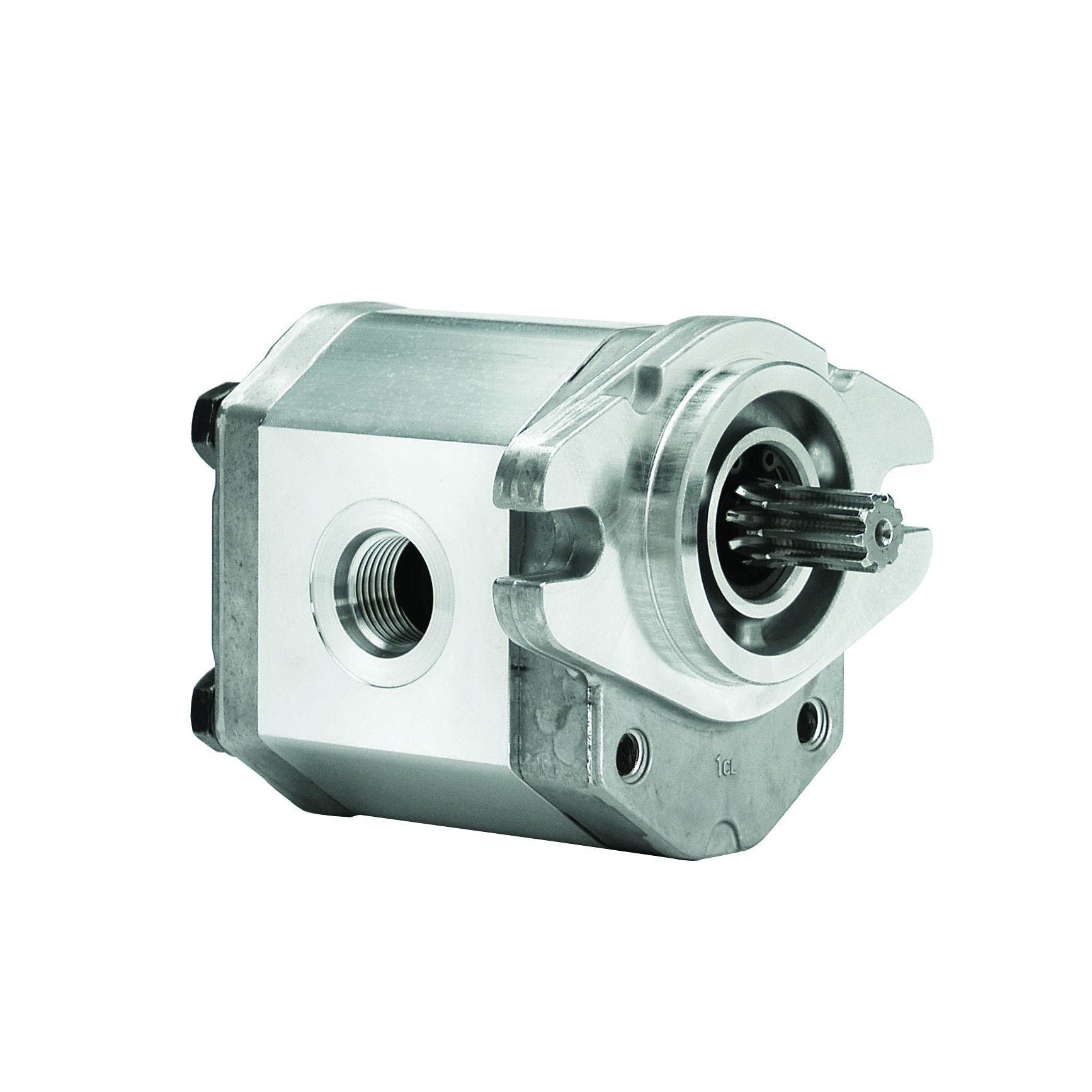

ALP2A-D-22-S1 : Marzocchi Gear Pump, CW, 16cc (0.976in3), 7.61 GPM, 3045psi, 2800 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Splined Shaft 9T 16/32DP, SAE A 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
ALP2A-D-22-S1 : Marzocchi Gear Pump, CW, 16cc (0.976in3), 7.61 GPM, 3045psi, 2800 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Splined Shaft 9T 16/32DP, SAE A 2-Bolt Mount

ALP2A-D-22-S1 : Marzocchi Gear Pump, CW, 16cc (0.976in3), 7.61 GPM, 3045psi, 2800 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Splined Shaft 9T 16/32DP, SAE A 2-Bolt Mount

MarzocchiSKU: ALP2A-D-22-S1
16-18 Weeks
Price:
$257.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 9T 16/32DP
Shaft Type Splined
Pressure Rating 3045
Rotation Clockwise
Displacement 16
Gpm At 1800 Rpm 7.61
Max Speed 2800RPM
Inlet Port #12 SAE (3/4")
Outlet Port #10 SAE (5/8")
Mount SAE A 2-Bolt
Country of Manufacture Italy
Height 4.02
Length 5.12
Width 4.39

Description

Marzocchi ALP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The pump body, flange, and cover are made of special high-resistant aluminum alloys for minimized deformation, even under high pressure. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
