ALP2A-D-30 : Marzocchi Gear Pump, CW, 21.1cc (1.2871in3), 10.03 GPM, 2610psi, 2200 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Keyed Shaft 5/8" Bore x 5/32" Key, SAE A 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
ALP2A-D-30 : Marzocchi Gear Pump, CW, 21.1cc (1.2871in3), 10.03 GPM, 2610psi, 2200 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Keyed Shaft 5/8" Bore x 5/32" Key, SAE A 2-Bolt Mount

ALP2A-D-30 : Marzocchi Gear Pump, CW, 21.1cc (1.2871in3), 10.03 GPM, 2610psi, 2200 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Keyed Shaft 5/8" Bore x 5/32" Key, SAE A 2-Bolt Mount

Save $24.01
MarzocchiSKU: ALP2A-D-30
16-18 Weeks
Price:
$273.99 $298.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 5/8" Bore x 5/32" Key
Shaft Type Keyed
Pressure Rating 2610
Rotation Clockwise
Displacement 21.1
Gpm At 1800 Rpm 10.03
Max Speed 2200RPM
Inlet Port #12 SAE (3/4")
Outlet Port #10 SAE (5/8")
Mount SAE A 2-Bolt
Country of Manufacture Italy
Height 4.02
Length 5.12
Width 4.71

Description

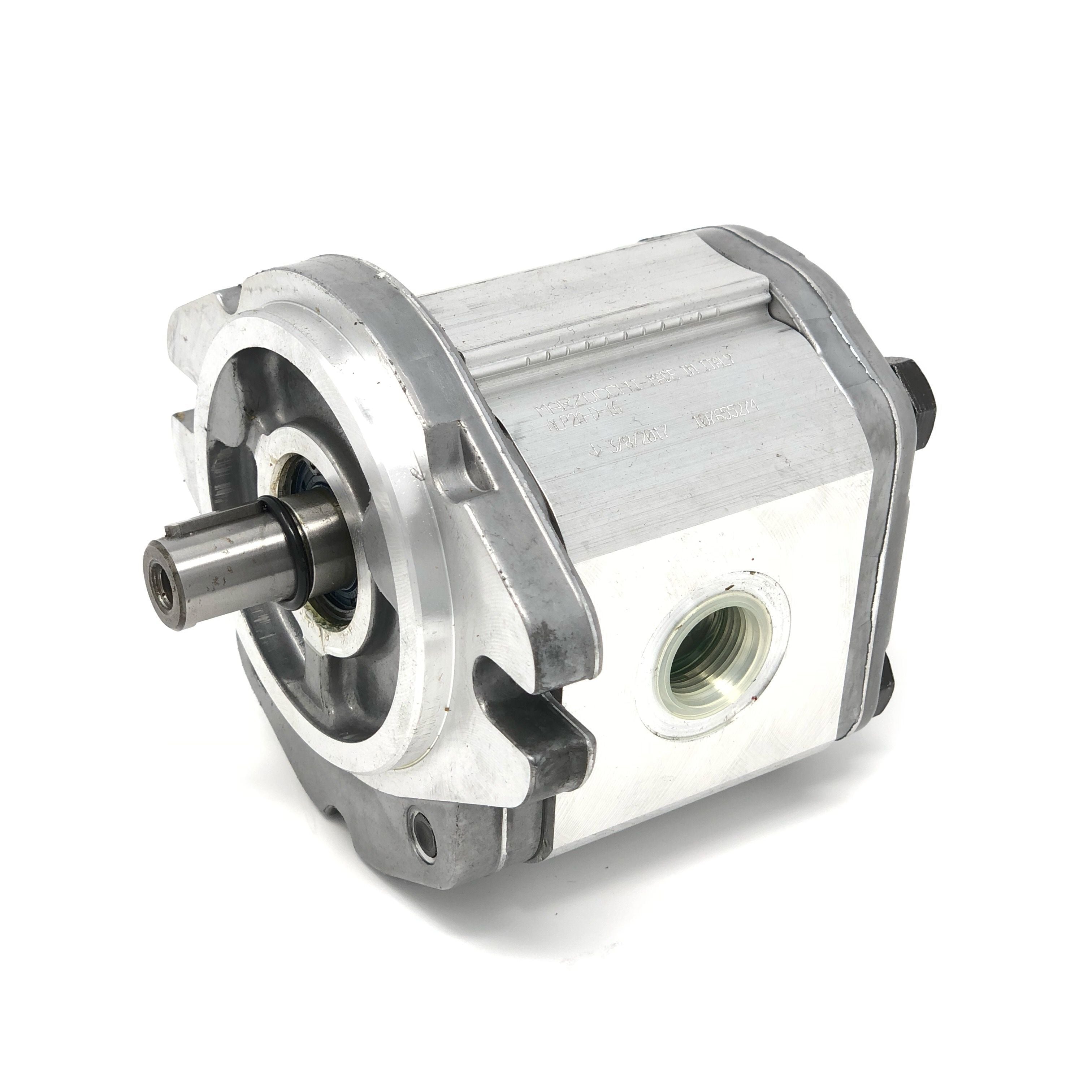

Marzocchi ALP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The pump body, flange, and cover are made of special high-resistant aluminum alloys for minimized deformation, even under high pressure. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
