ALP3A-D-110-FA : Marzocchi Gear Pump, CW, 71cc (4.331in3), 33.75 GPM, 2465psi, 2500 RPM, #24 SAE (1.5") In, #12 SAE (3/4") Out, Keyed Shaft 7/8" Bore x 1/4" Key, SAE B 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
ALP3A-D-110-FA : Marzocchi Gear Pump, CW, 71cc (4.331in3), 33.75 GPM, 2465psi, 2500 RPM, #24 SAE (1.5") In, #12 SAE (3/4") Out, Keyed Shaft 7/8" Bore x 1/4" Key, SAE B 2-Bolt Mount

ALP3A-D-110-FA : Marzocchi Gear Pump, CW, 71cc (4.331in3), 33.75 GPM, 2465psi, 2500 RPM, #24 SAE (1.5") In, #12 SAE (3/4") Out, Keyed Shaft 7/8" Bore x 1/4" Key, SAE B 2-Bolt Mount

Save $48.01
MarzocchiSKU: ALP3A-D-110-FA
16-18 Weeks
Price:
$529.99 $578.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 7/8" Bore x 1/4" Key
Shaft Type Keyed
Pressure Rating 2465
Rotation Clockwise
Displacement 71
Gpm At 1800 Rpm 33.75
Max Speed 2500RPM
Inlet Port #24 SAE (1.5")
Outlet Port #12 SAE (3/4")
Mount SAE B 2-Bolt
Country of Manufacture Italy
Height 6.14
Length 6.85
Width 6.52

Description

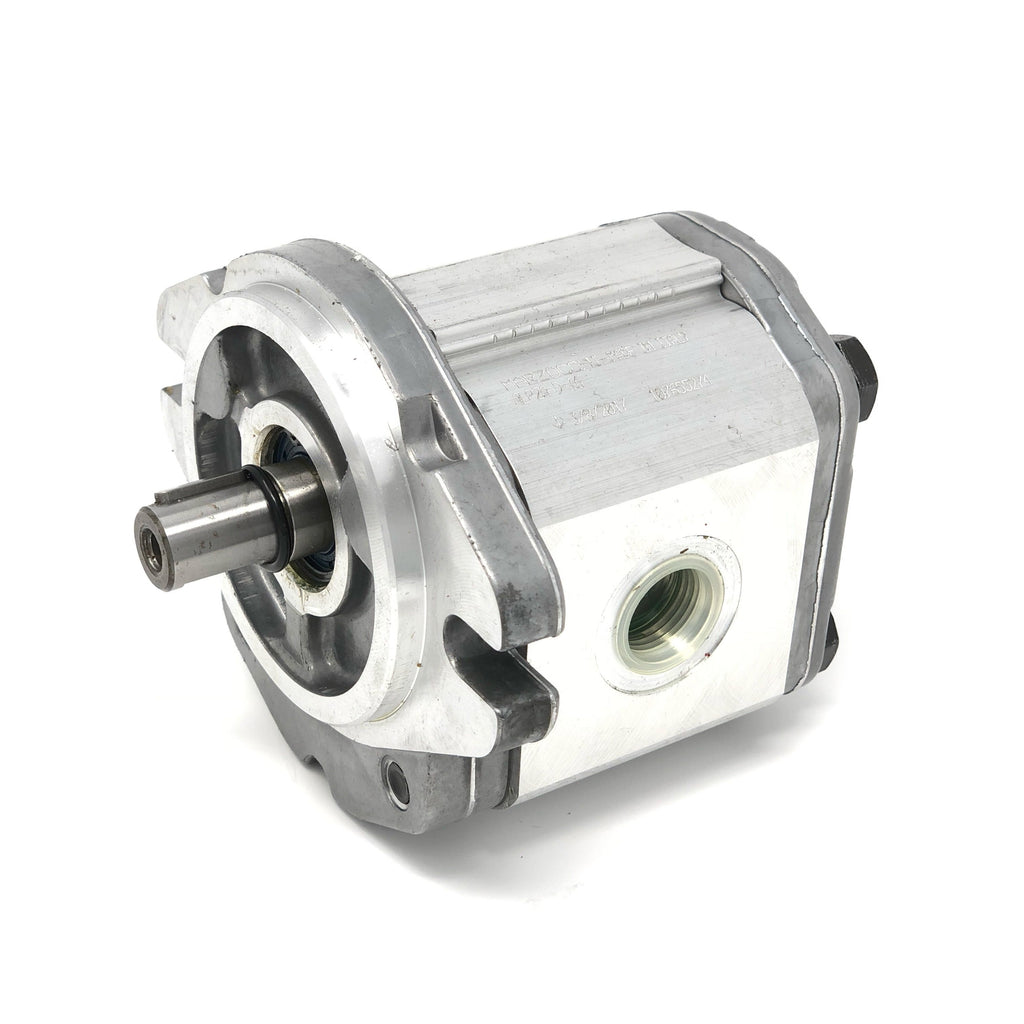

Marzocchi ALP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The pump body, flange, and cover are made of special high-resistant aluminum alloys for minimized deformation, even under high pressure. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
