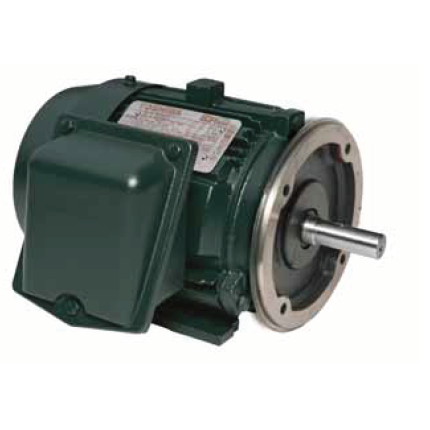

B1002FLG3USH02 : Toshiba EQP Global SD Motor, C-Face, 100HP, 3600RPM, 230/460V, 405TS Frame
Roll over image to zoom in Click on image to zoom
B1002FLG3USH02 : Toshiba EQP Global SD Motor, C-Face, 100HP, 3600RPM, 230/460V, 405TS Frame

B1002FLG3USH02 : Toshiba EQP Global SD Motor, C-Face, 100HP, 3600RPM, 230/460V, 405TS Frame

ToshibaSKU: B1002FLG3USH02
4-6 Weeks
Price:
$5,079.20

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Houston, Texas
Horsepower 100
Rpm 3600
Motor Voltage 230/460
Electric Motor Frame Size 405TS
Electric Motor Type EQP GLOBAL SD C-FACE FOOTLESS
Fl Amps 228/114
Nominal Fl Efficiency 95
Height 21
Length 38.4
Width 19.8
Weight 1305

Description

Toshiba’s general purpose, totally enclosed fan cooled, C-Face motor series is Toshiba’s next generation motor product line. The TEFC C-Face motor is available in footed and footless designs, and is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba. These motors have a three year factory warranty.
