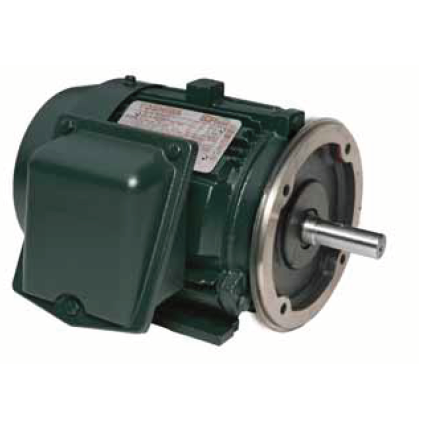

B1004FLF3USH03 : Toshiba EQP Global SD Motor, C-Face, 100HP, 1800RPM, 230/460V, 405T Frame
Roll over image to zoom in Click on image to zoom
B1004FLF3USH03 : Toshiba EQP Global SD Motor, C-Face, 100HP, 1800RPM, 230/460V, 405T Frame

B1004FLF3USH03 : Toshiba EQP Global SD Motor, C-Face, 100HP, 1800RPM, 230/460V, 405T Frame

ToshibaSKU: B1004FLF3USH03
4-6 Weeks
Price:
$4,730.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Houston, Texas
Horsepower 100
Rpm 1800
Motor Voltage 230/460
Electric Motor Frame Size 405T
Electric Motor Type EQP GLOBAL SD C-FACE FOOTLESS
Fl Amps 238/119
Nominal Fl Efficiency 95.4
Height 21
Length 38.4
Width 19.8
Weight 1336

Description

Toshiba’s general purpose, totally enclosed fan cooled, C-Face motor series is Toshiba’s next generation motor product line. The TEFC C-Face motor is available in footed and footless designs, and is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba. These motors have a three year factory warranty.
