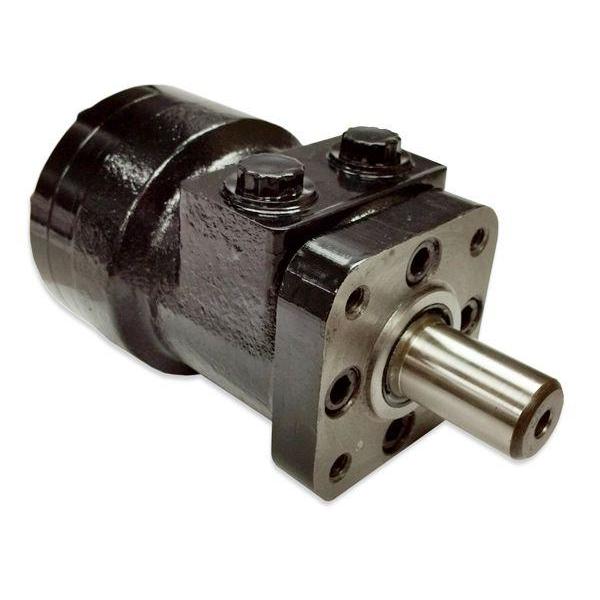

BMRS-125-H4-K-F : Dynamic LSHT Motor, 127.2cc, 475RPM, 2655in-lb, 2321psi Differential, 15.85GPM, SAE A 4-Bolt Mount, 1" Bore x 1/4" Key Shaft, Side Ported, Manifold
Roll over image to zoom in Click on image to zoom
BMRS-125-H4-K-F : Dynamic LSHT Motor, 127.2cc, 475RPM, 2655in-lb, 2321psi Differential, 15.85GPM, SAE A 4-Bolt Mount, 1" Bore x 1/4" Key Shaft, Side Ported, Manifold

BMRS-125-H4-K-F : Dynamic LSHT Motor, 127.2cc, 475RPM, 2655in-lb, 2321psi Differential, 15.85GPM, SAE A 4-Bolt Mount, 1" Bore x 1/4" Key Shaft, Side Ported, Manifold

Save $249.01
Dynamic Fluid ComponentsSKU: BMRS-125-H4-K-F
6-8 Weeks
Price:
$267.99 $517.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location West Union, South Carolina
Port Size Manifold
Shaft Size 1" Bore x 1/4" Key
Shaft Type Woodruff Keyed
Port Location Side Ported
Flow Rating 15.85
Pressure Rating 2321
Displacement 127.2
Max Speed 475
Service Parts BMRS Seal Kit
Country of Manufacture China
Height 3.28
Length 6.26
Width 3.28
Weight 17.95

Description

The BMRS series advanced ROLORTORC gear set, shaft distribution fl ow, hydraulic motor is a compact, low noise, high efficient high torque low speed design. The ROLORTORC gear set also affords a reliable smooth start up at low pressure. BMRS motors are available with optional radial needle bearings (by special order) for side load applications. The low weight advanced construction design is manufactured in accordance with the requirements of ISO 9000-2000 quality system.
