Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-2 Weeks |
| Factory Location | Wheatfield, NY |
| Port Size | #4 SAE (1/4") |
| O Ring Seals | Buna |
| Pressure Rating | 6000 |
| Body Material | Carbon Steel |
| Ball Seal | Delrin |
| Ball Pattern | L-Bore Diverter |
| Ball Valve Pressure Range | High Pressure (5000 to 9999psi) |
| Flow Style | Three-Way |
| Country of Manufacture | United States |
| Height | 4.81 |
| Length | 2.98 |
| Width | 3.46 |
| Weight | 5.1 |
| Ball Valve Type | Standard |
Description

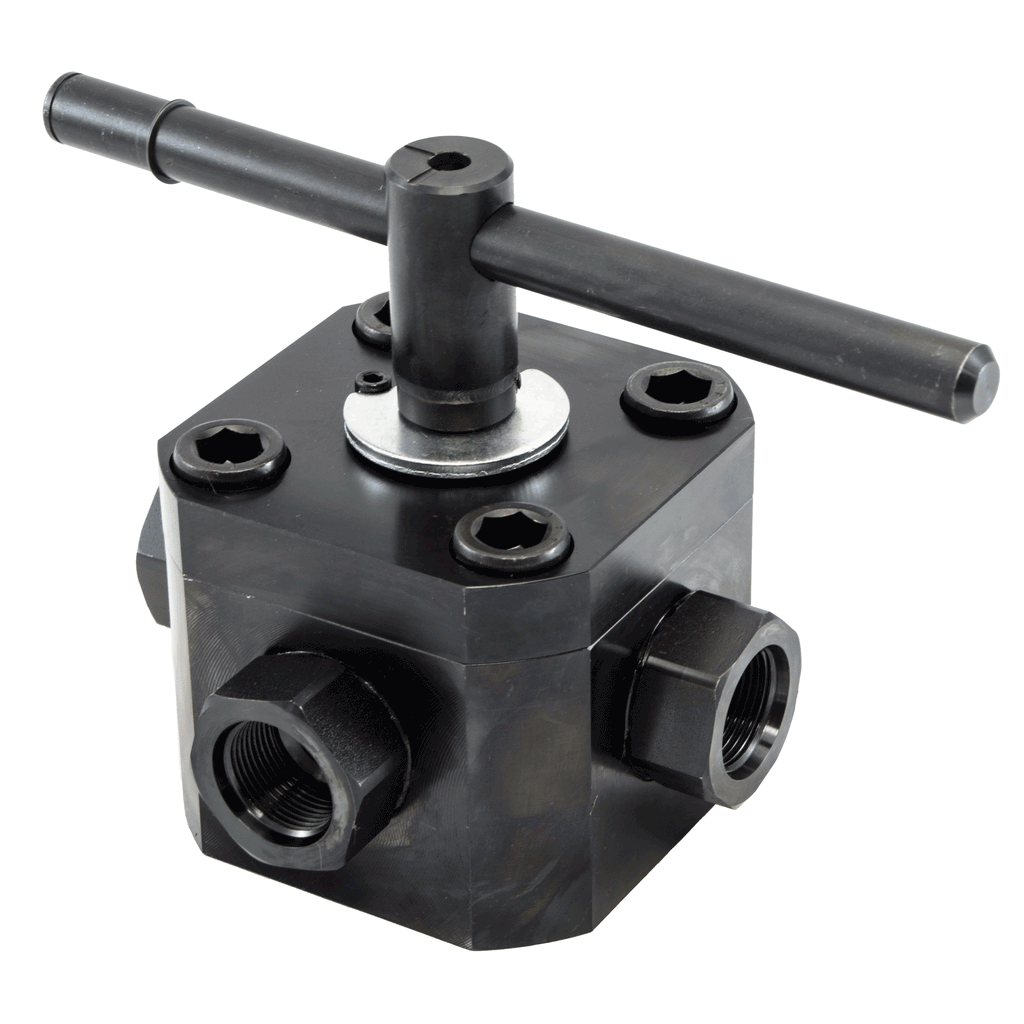

DMIC BV3H and BV4H series have been upgraded for superior performance and durability with DMIC's exclusive top serviceable design, and compatibility with many DMIC Pre-Engineered Accessories and Actuation Packages. This model is not restricted to any specific type of circuit, and incorporates BLOCKED CENTER (intermediate) positions.
