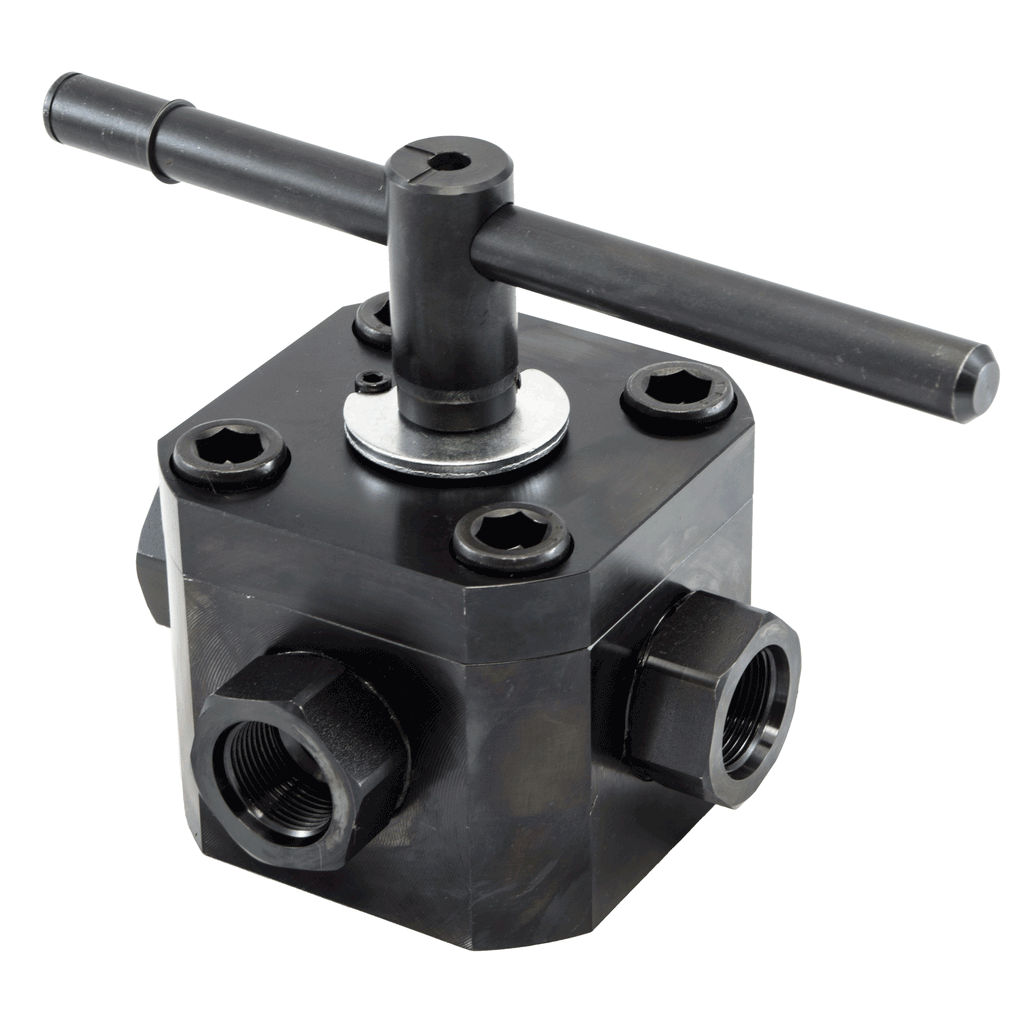

BV3H-1000N-C-1111 : DMIC 3-Way Diverter Ball Valve, 1 NPT, Carbon Steel, 6000psi, Three-Way
Roll over image to zoom in Click on image to zoom
BV3H-1000N-C-1111 : DMIC 3-Way Diverter Ball Valve, 1 NPT, Carbon Steel, 6000psi, Three-Way

BV3H-1000N-C-1111 : DMIC 3-Way Diverter Ball Valve, 1 NPT, Carbon Steel, 6000psi, Three-Way

Save $199.13
DMICSKU: BV3H1000NC1111
1-2 Weeks
Price:
$765.99 $965.12

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Port Size 1" NPT
O Ring Seals Buna
Pressure Rating 6000
Body Material Carbon Steel
Ball Seal Delrin
Ball Pattern T-Bore, 90-Degree Action
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Three-Way
Country of Manufacture United States
Height 7.2
Length 5.94
Width 6.88
Weight 28.96
Ball Valve Type Standard

Description

DMIC BV3H and BV4H series have been upgraded for superior performance and durability with DMIC's exclusive top serviceable design, and compatibility with many DMIC Pre-Engineered Accessories and Actuation Packages. This model is not restricted to any specific type of circuit, and incorporates BLOCKED CENTER (intermediate) positions.
