Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-2 Weeks |
| Factory Location | Wheatfield, NY |
| Port Size | 1" NPT |
| O Ring Seals | Buna |
| Pressure Rating | 600 |
| Body Material | Aluminum |
| Ball Seal | PTFE Teflon |
| Ball Pattern | L-Bore Diverter |
| Ball Valve Pressure Range | Low Pressure (Under 1000psi) |
| Flow Style | Three-Way |
| Country of Manufacture | United States |
| Height | 4.01 |
| Length | 3.47 |
| Width | 2.75 |
| Weight | 1.35 |
| Ball Valve Type | Standard |
Description

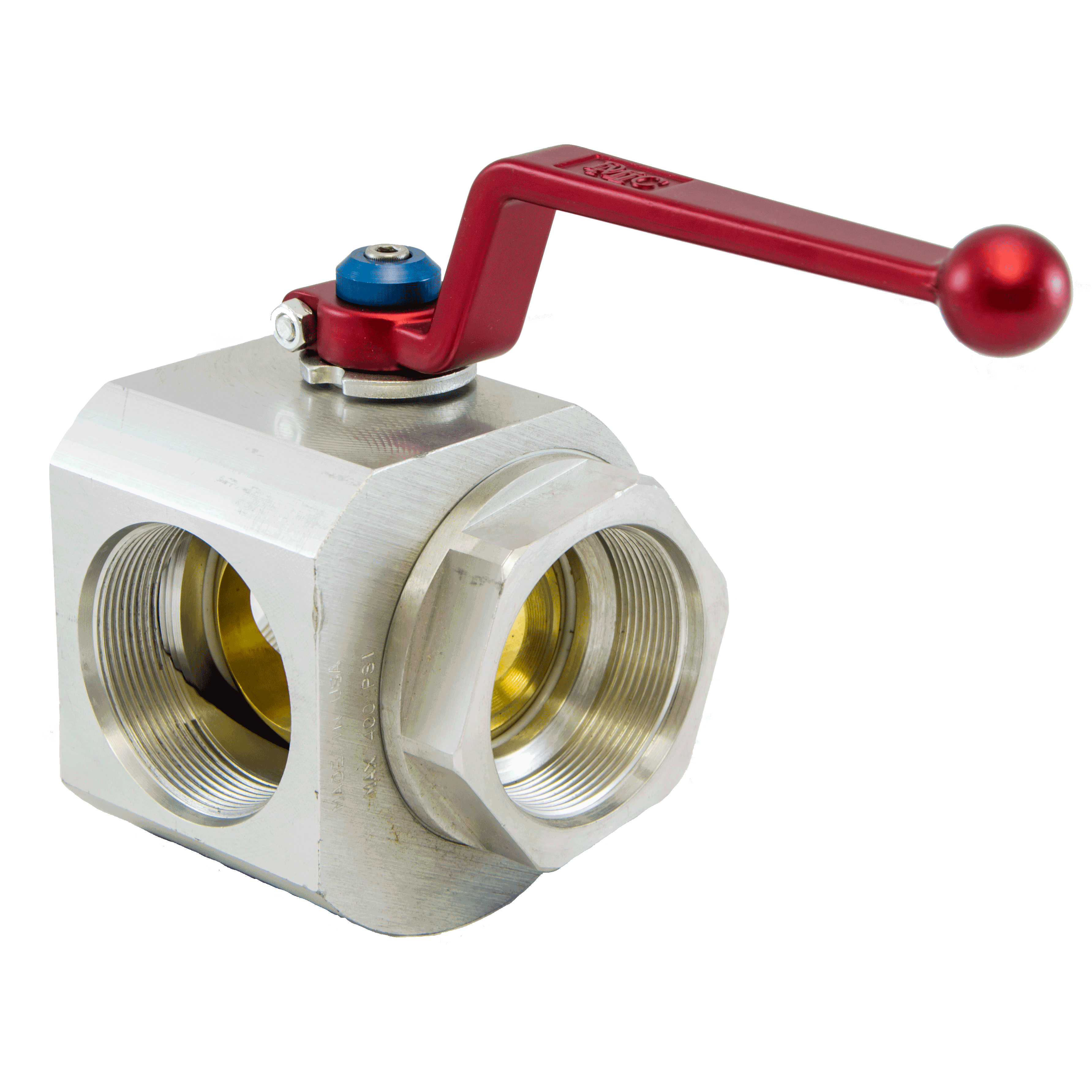

The BV3L is an economical USA made diverter valve for Filter Duplexing type applications where one input is directed to one of two outputs. Standard L-Bore ball with slight port overlap prevents upstream pressure spikes during phase change.
