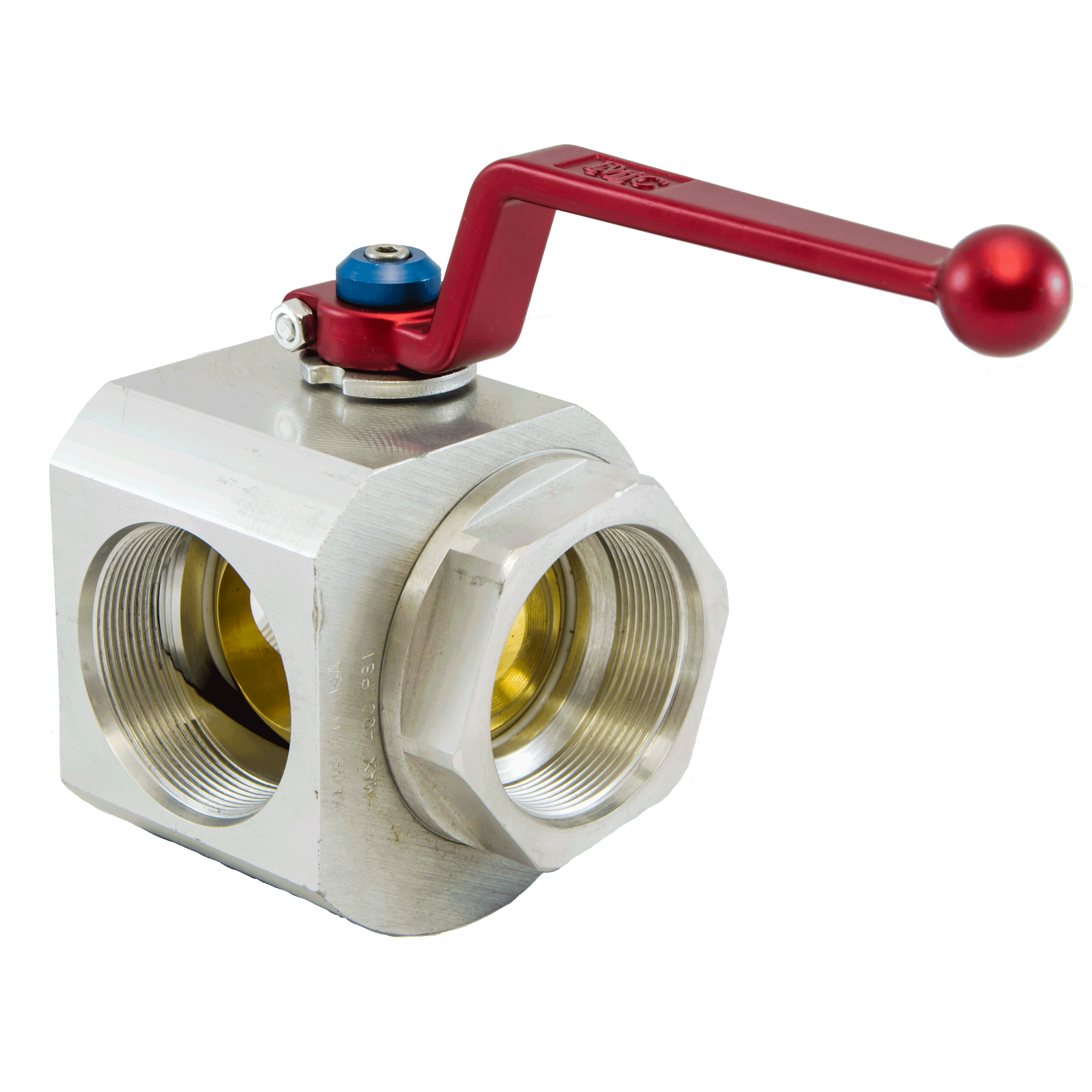

BV3L-1250N-A-4321 : DMIC 3-Way Diverter Ball Valve, 1.25 NPT, Aluminum, 600psi, Three-Way
Roll over image to zoom in Click on image to zoom
BV3L-1250N-A-4321 : DMIC 3-Way Diverter Ball Valve, 1.25 NPT, Aluminum, 600psi, Three-Way

BV3L-1250N-A-4321 : DMIC 3-Way Diverter Ball Valve, 1.25 NPT, Aluminum, 600psi, Three-Way

Save $37.25
DMICSKU: BV3L1250NA4321
1-2 Weeks
Price:
$143.99 $181.24

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Port Size 1.25" NPT
O Ring Seals Buna
Pressure Rating 600
Body Material Aluminum
Ball Seal PTFE Teflon
Ball Pattern L-Bore Diverter
Ball Valve Pressure Range Low Pressure (Under 1000psi)
Flow Style Three-Way
Country of Manufacture United States
Height 5.59
Length 3.89
Width 3.5
Weight 3.2
Ball Valve Type Standard

Description

The BV3L is an economical USA made diverter valve for Filter Duplexing type applications where one input is directed to one of two outputs. Standard L-Bore” ball with slight port overlap prevents upstream pressure spikes during phase change.
