DCV-100-B-N : Deltrol Direct-Acting Check Valve, C-10-2 Cavity, 3000psi, 20GPM, 5-100psi Cracking Pressure

Save $0.29
Deltrol Fluid ProductsSKU: 10179-36
1-3 Days
Price:
$16.99 $17.28

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Check
Style Ball
Flow Rating 20.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Cracking Pressure 5-100 psi
Series DCV
Cartridge Cavity C-10-2
Country of Manufacture United States/Vietnam
Height 2
Length 1.5
Width 2
Weight 2

Description

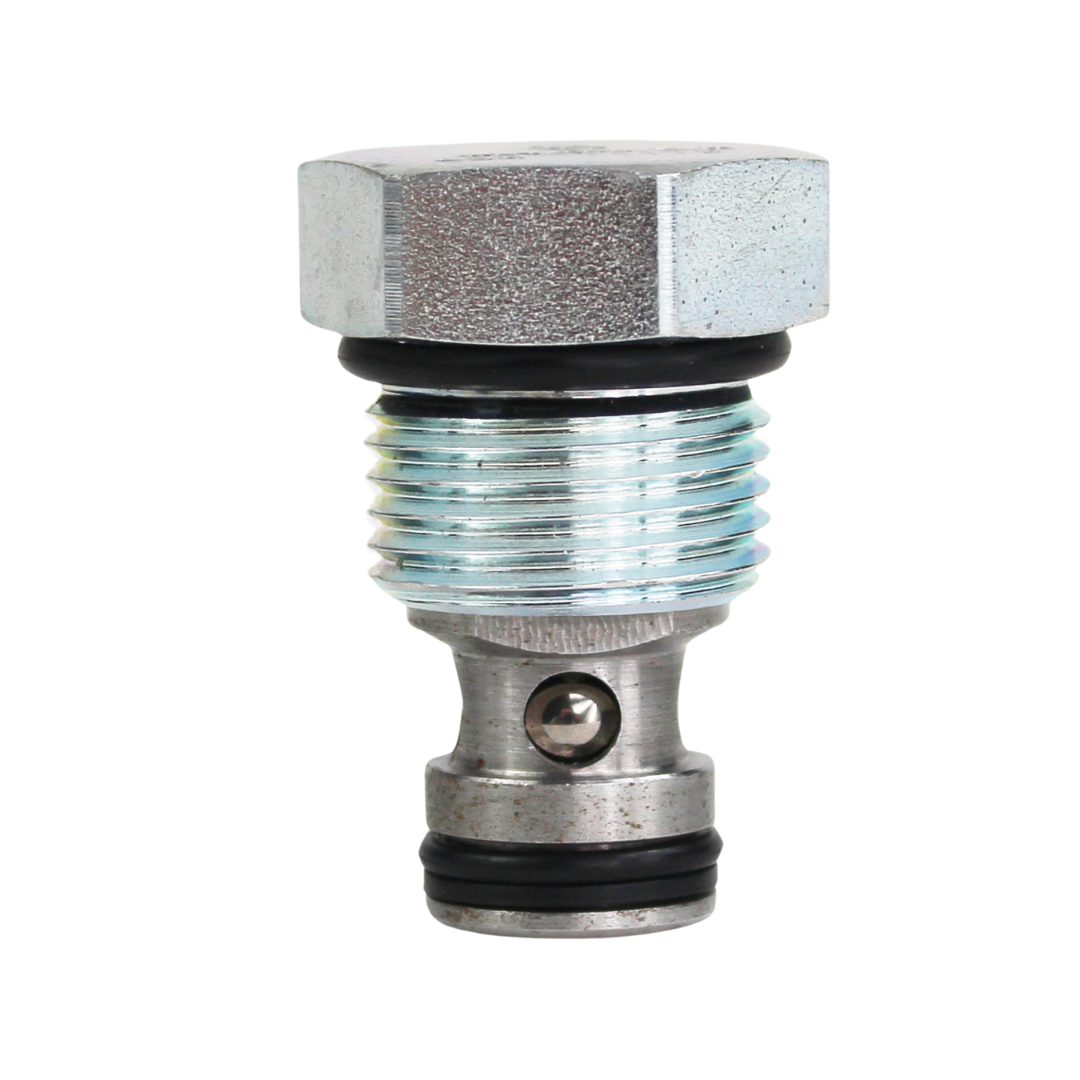

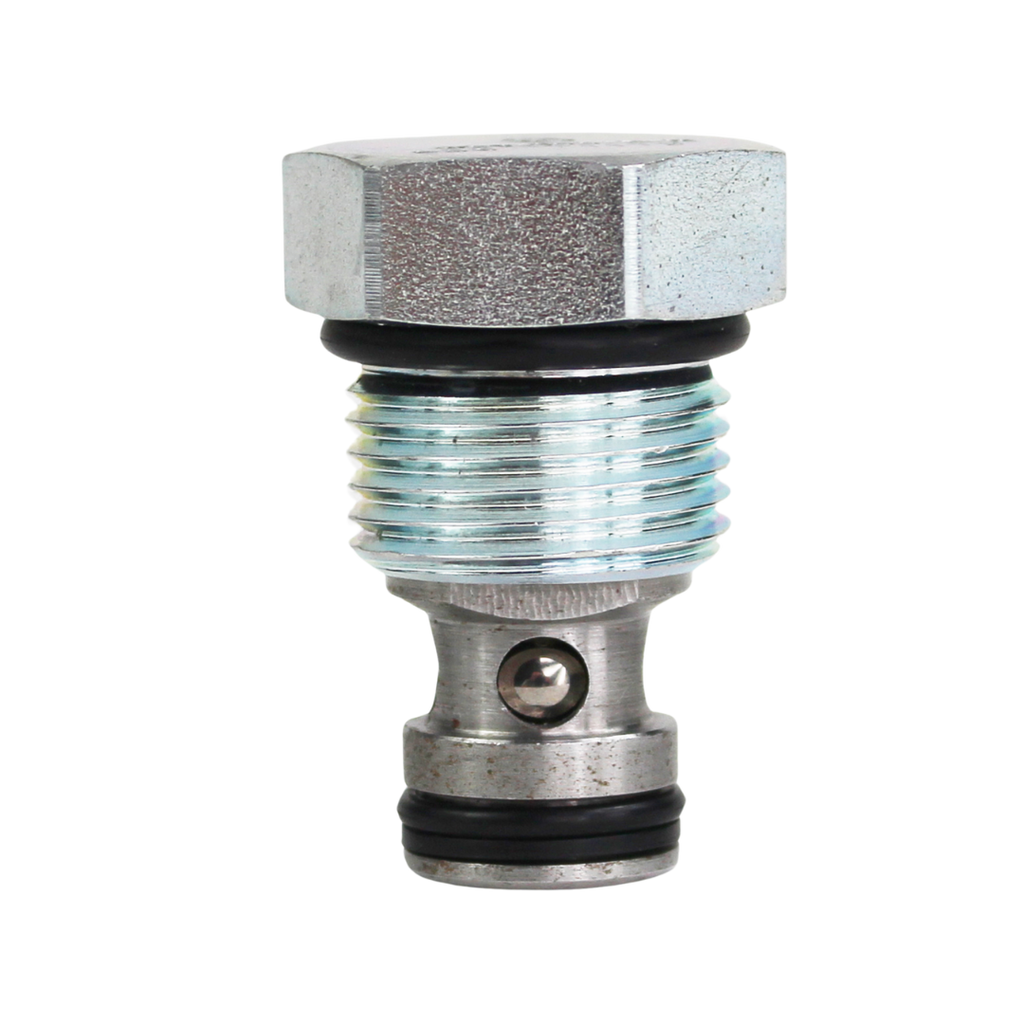

The Deltrol Fluid Products DCV-100-B Direct Acting Check Valve is a high-performance cartridge valve that ensures one-way flow in hydraulic systems. It allows fluid to pass freely from port 1 to port 2 while blocking flow in the reverse direction. Featuring a durable chrome alloy ball and minimal leakage, this valve is ideal for load-holding and blocking applications. It supports flows up to 20 gpm and operates effectively at pressures up to 3000 psi. Designed to fit industry-standard cavities, it is built from anodized aluminum for enhanced durability and reliability in a wide temperature range.
