Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Stock | 21.0 |
| Factory Location | Mishawaka, Indiana |
| Solid Model | Click here to download |
| Material | Ductile Iron |
| Port Size | #4 SAE (1/4") |
| Pressure Rating | 5000 |
| Valve Pattern | D05 (NG10) |
| Tapping Plate Type | P and T Ports Tapped |
| Height | 4 |
| Length | 2.75 |
| Width | 1 |
Description

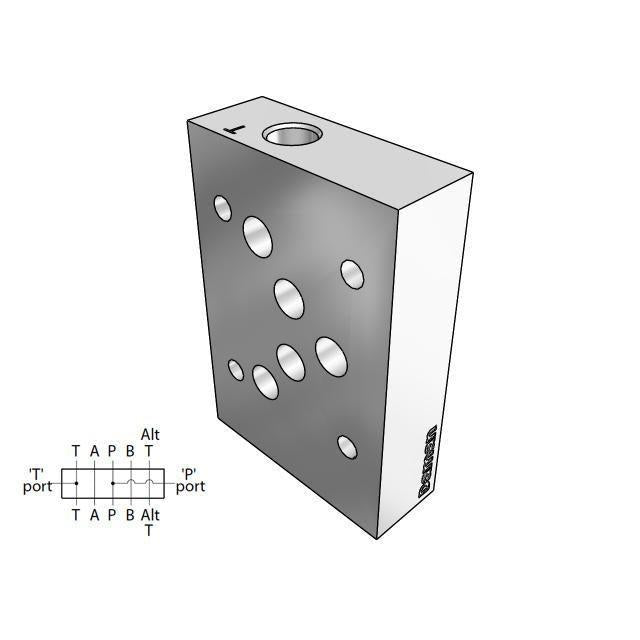

Daman Subplates are also known as mounting pads, sub bases, and base plates. Subplates give valves a mounting pad and allow for many different port styles and locations to meet the design requirements of the system. Daman uses the term 'subplates' to refer to mounting only one valve in a low profile (height) configuration. Manifolds are used to refer to applications where more than one valve will be mounted and is generally taller (height).
