Save $5.54
Deltrol Fluid ProductsSKU: 10177-09
1-3 Days
Price:
$84.99 $90.53

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Hand Pump
Flow Rating 0.5 cu. in. @ 45º rotation
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DHP2
Cartridge Cavity C-10-2
Country of Manufacture United States/Vietnam

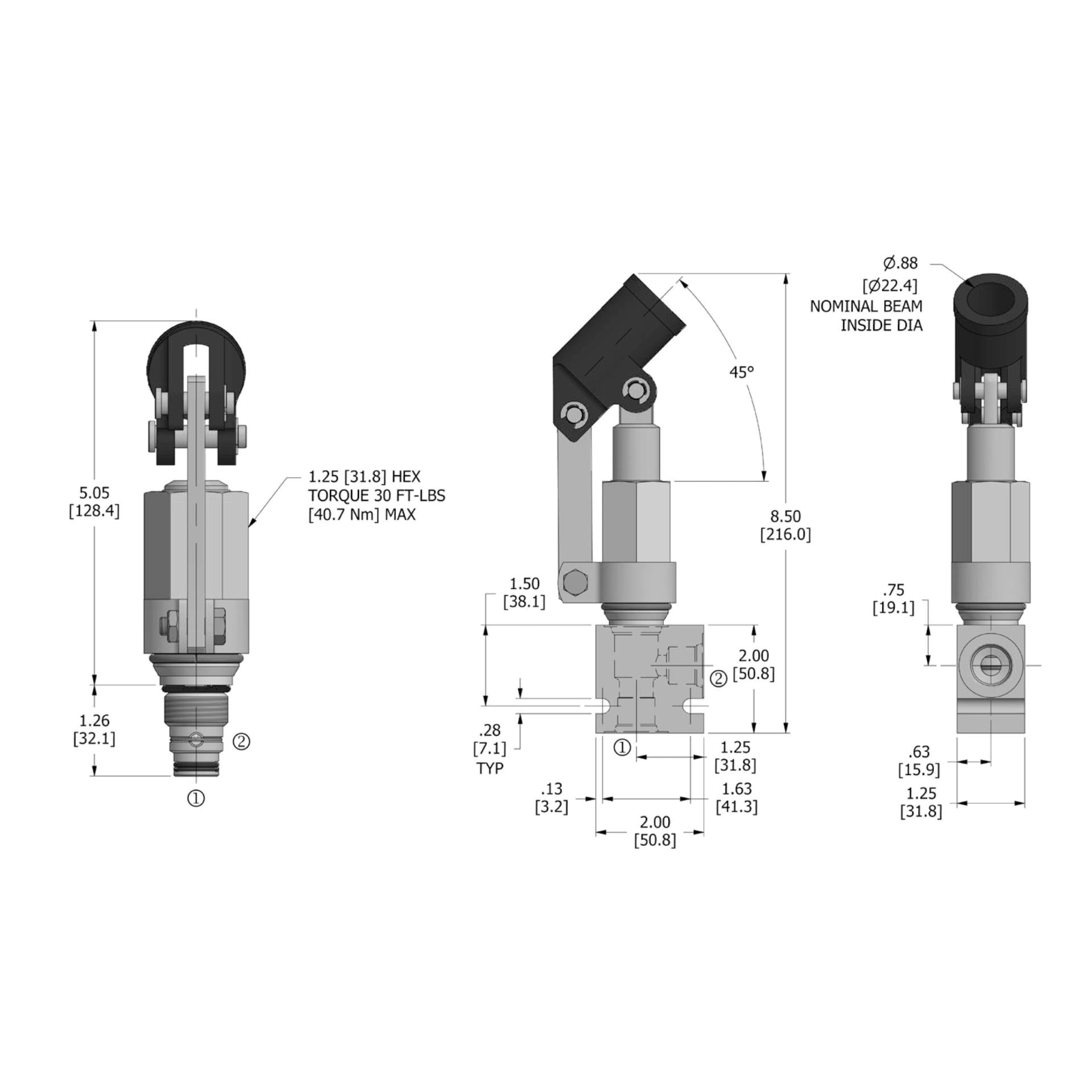

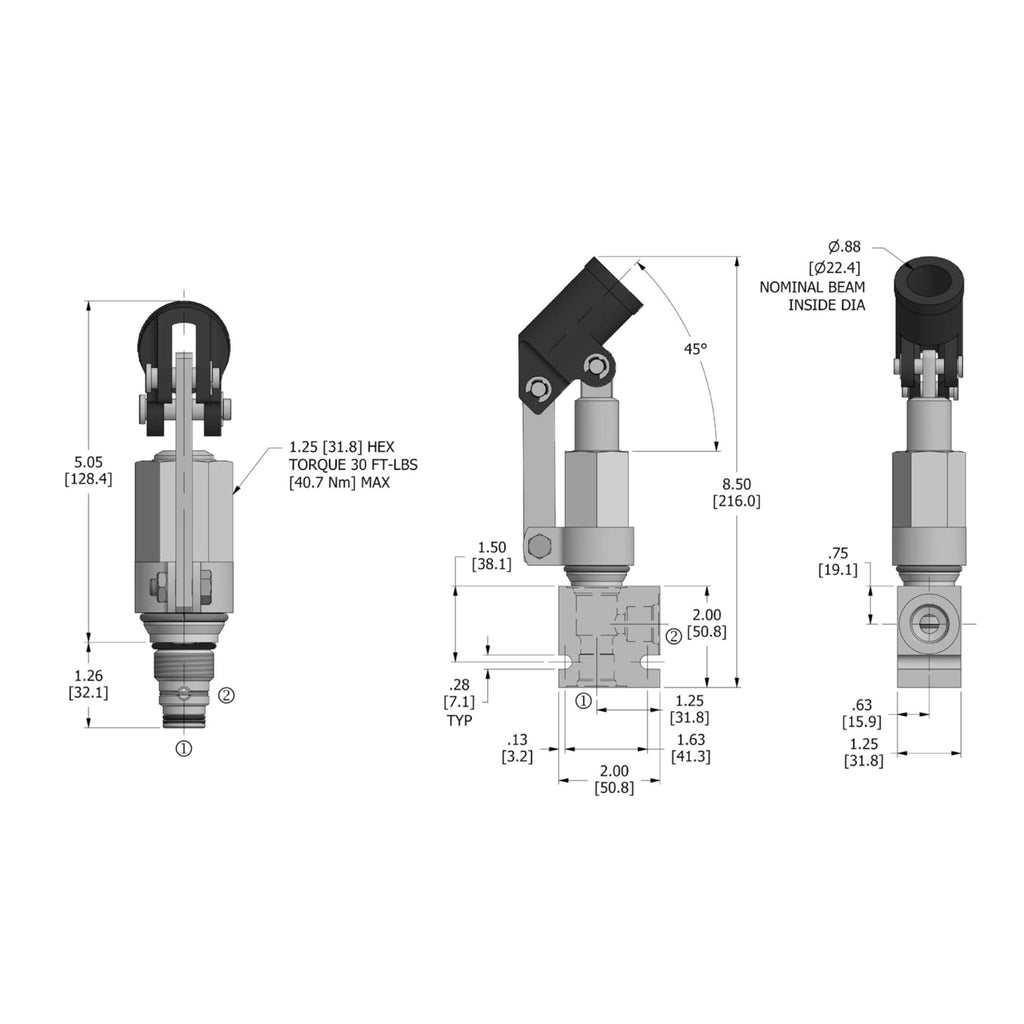

Height 1.25
Length 8.5
Width 4
Weight 2

Description

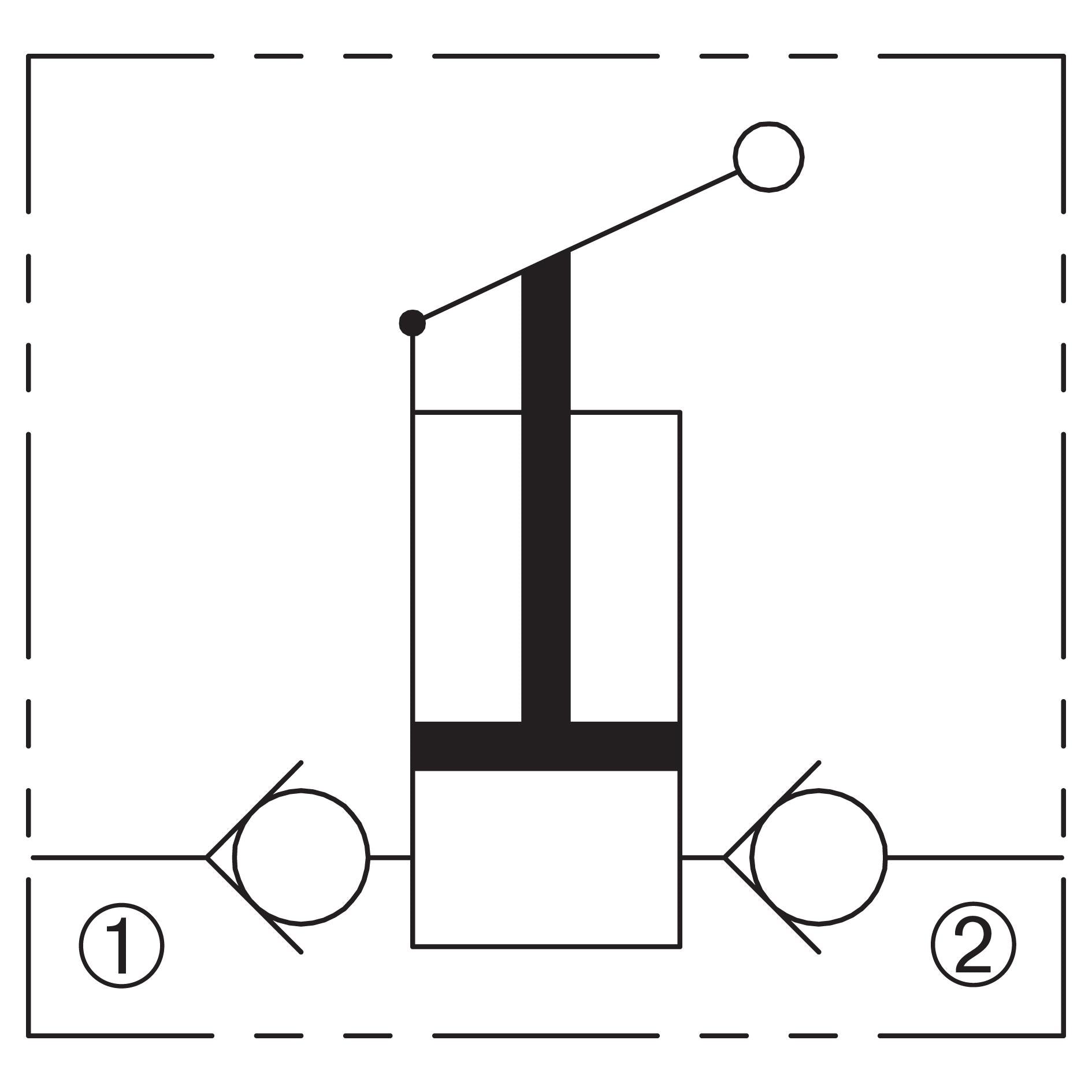

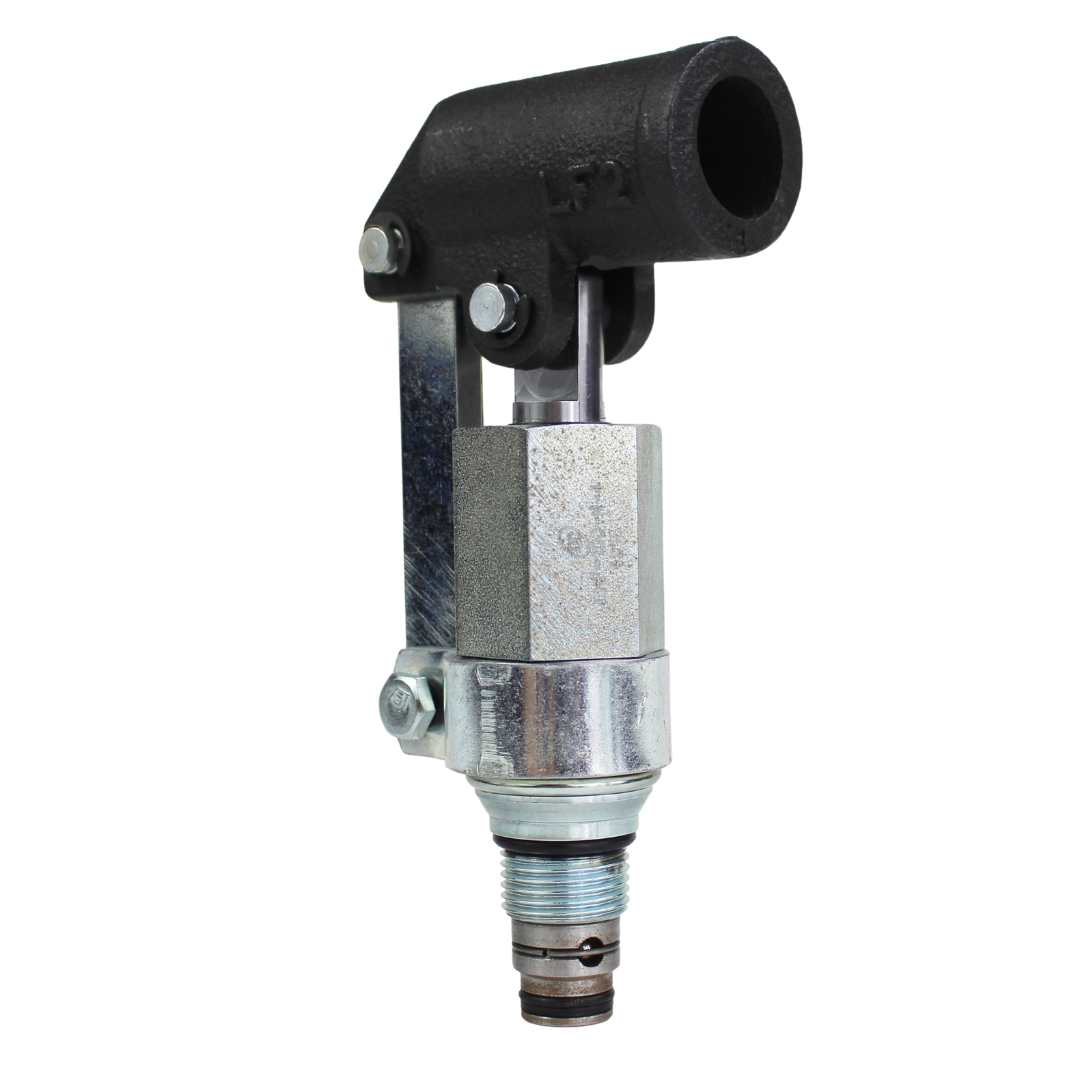

The Deltrol Fluid Products DHP-100 is a robust hand pump designed for reliable fluid delivery in demanding applications. This self-contained, cartridge-style pump features integral inlet and outlet checks, ensuring efficient operation. When the operator's handle is pushed, the pump delivers a nominal flow of 0.5 cubic inches to port 2, while pulling the handle draws fluid from port 1. The DHP2-100 is built with a cast beam for heavy-duty use, hardened parts for long life, and a 360º rotating beam for flexible installation. With a maximum operating pressure of 3000 PSI and a durable anodized aluminum alloy body, it provides dependable performance across a wide temperature range.
