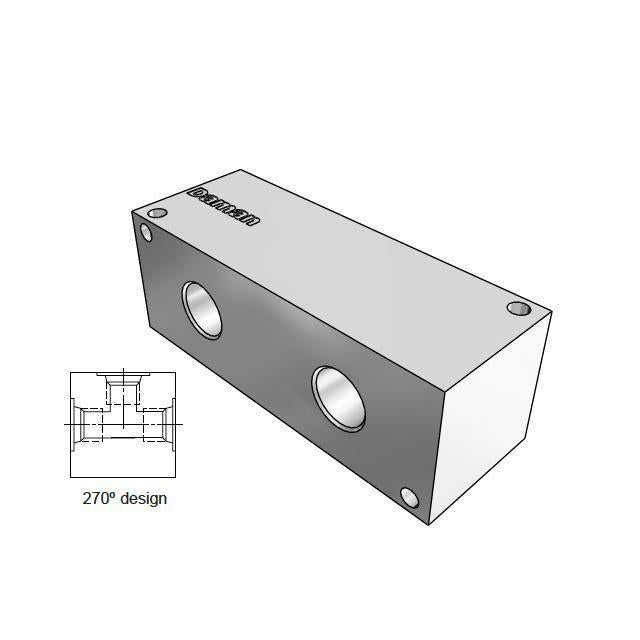

DJ2700206S : Daman Junction Manifold, 270 Degree , Ductile Iron, Two Station, #6 SAE (3/8) Ports
Roll over image to zoom in Click on image to zoom
DJ2700206S : Daman Junction Manifold, 270 Degree , Ductile Iron, Two Station, #6 SAE (3/8) Ports

DJ2700206S : Daman Junction Manifold, 270 Degree , Ductile Iron, Two Station, #6 SAE (3/8) Ports

DamanSKU: DJ2700206S
4-5 Weeks
Price:
$186.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-5 Weeks
Factory Location Mishawaka, Indiana
Solid Model Click here to download
Material Ductile Iron
Port Size #6 SAE (3/8")
Pressure Rating 5000
Port Configuration 270 Degree
Number Of Stations Two Station
Height 1.75
Length 5
Width 1.75
Weight 0

Description

Daman Junction Blocks are an efficient way to co-locate tee and elbow fittings. They do not have valve or pattern machined features, only ports. The purpose is to provide a place to join piping, change direction, or split/connect with other lines.
