Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | York, Pennsylvania |
| Material | Carbon Steel |
| Valve Type | Subplate/Manifold Mounted Valve |
| Valve Interface | D05 (NG10) |
| Flow Rating | 43.63 |
| Pressure Rating | 5075 |
| Operating Temp Range | -22F to 158F |
| Voltage | 110VAC |
| Seal Material | NBR |
| Actuation Type | Single solenoid, center plus external position, spring centered |
| Solenoid Electrical Connection | DIN |
| Series | DKE-1613 |
| Spool Configuration | P Blocked, A & B to T in Neutral, Y51 |
| Positions | 2-Position |
| Way | 4-Way |
| Country of Manufacture | Italy |
| Height | 4.45 |
| Length | 6.6 |
| Width | 2.75 |
| Weight | 10 |
Description

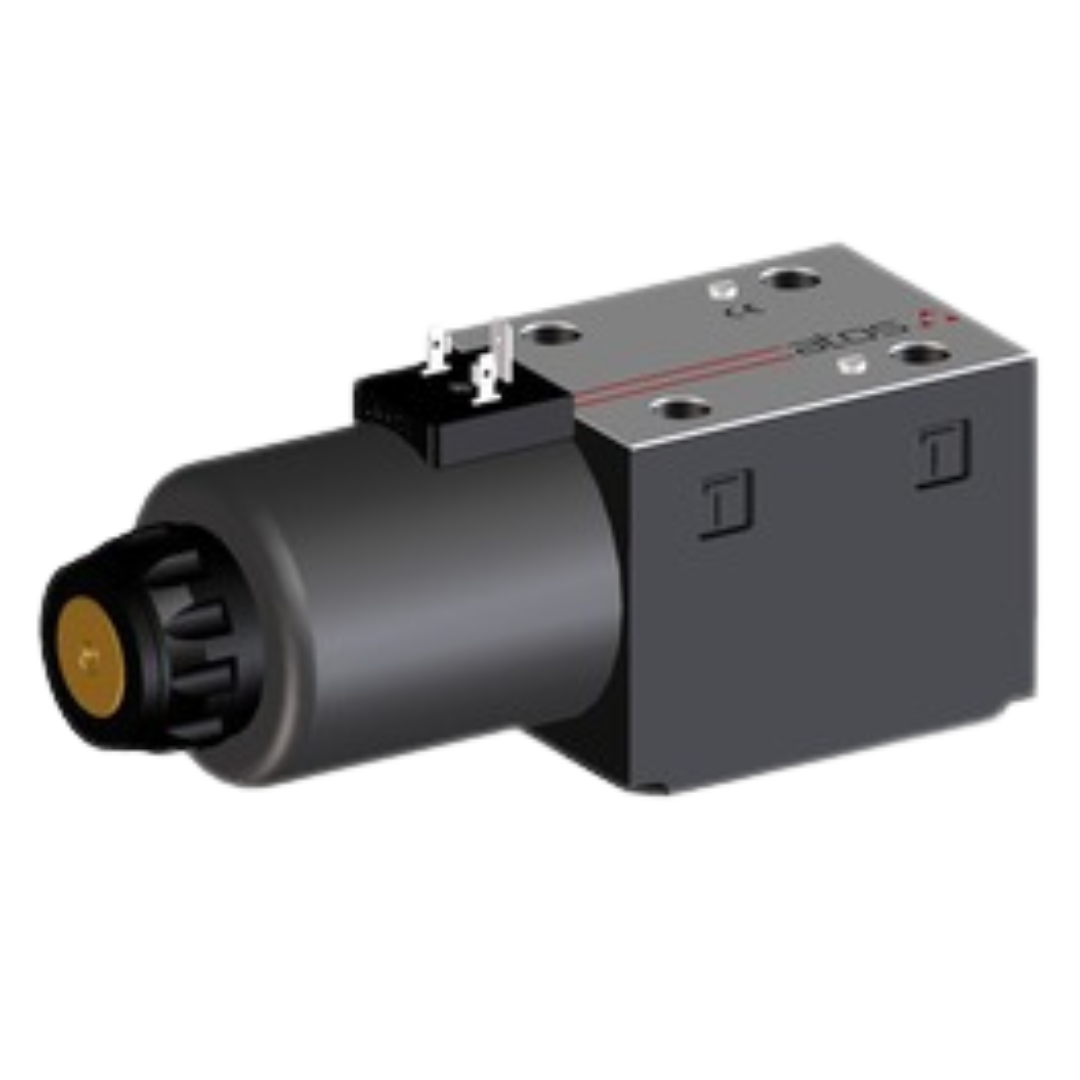

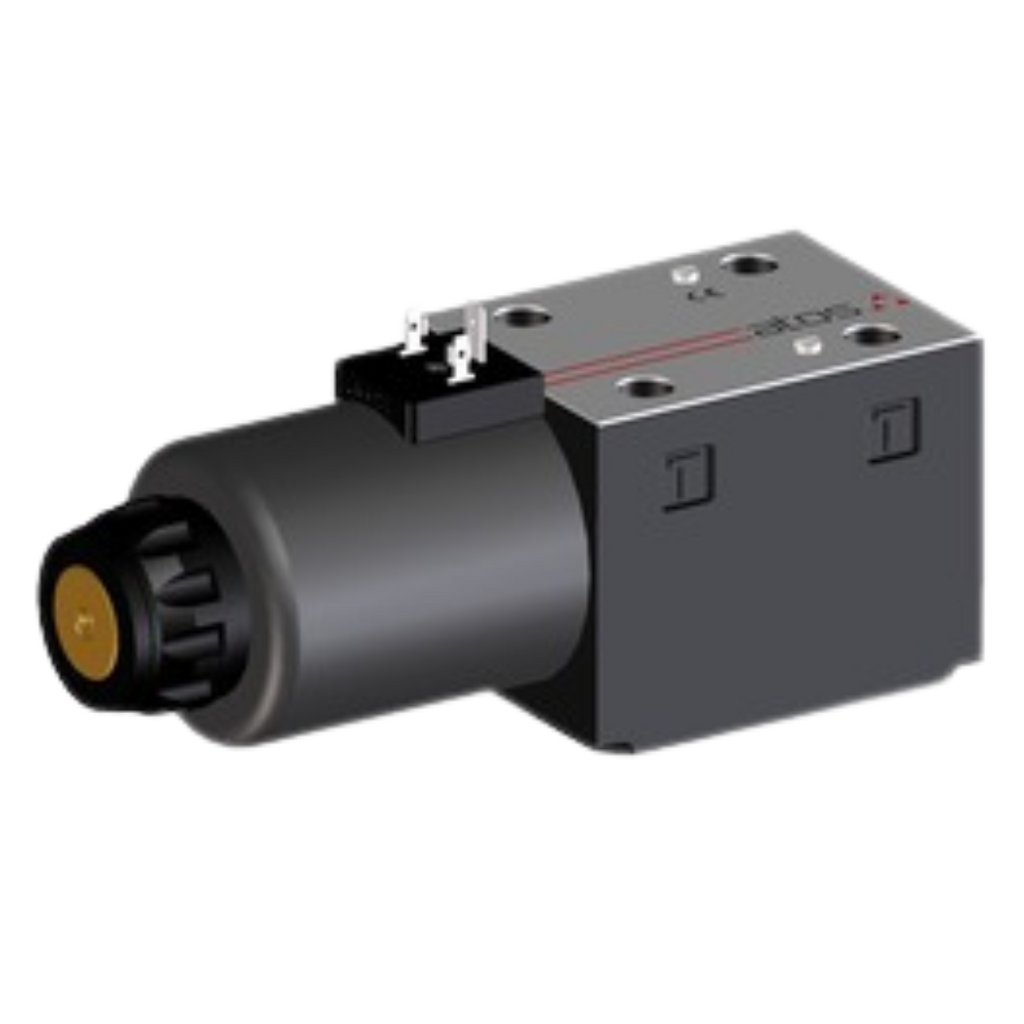

The Atos DKE Solenoid Directional Valve is a direct-acting, spool-type valve designed for precise hydraulic control. It features two or three positions and operates via threaded solenoids, which are certified to the North American standard cURus. The solenoids come in a wet-type, screwed-tube design, compatible with both AC and DC power supplies, and include an integrated manual override pin. Coils are interchangeable and can be easily replaced without tools, with standard protection rated at IP65 and optional IP67 connections. The valve body is engineered with 5 chambers for DC versions and 3 chambers for the standard AC version, providing efficient flow management with minimal pressure drops. The valve supports a maximum flow rate of 39.63 GPM (150 lpm) and a pressure rating of 5075 psi (350 bar), with a mounting surface of D05 (NG10) and ISO 4401 size 10.
