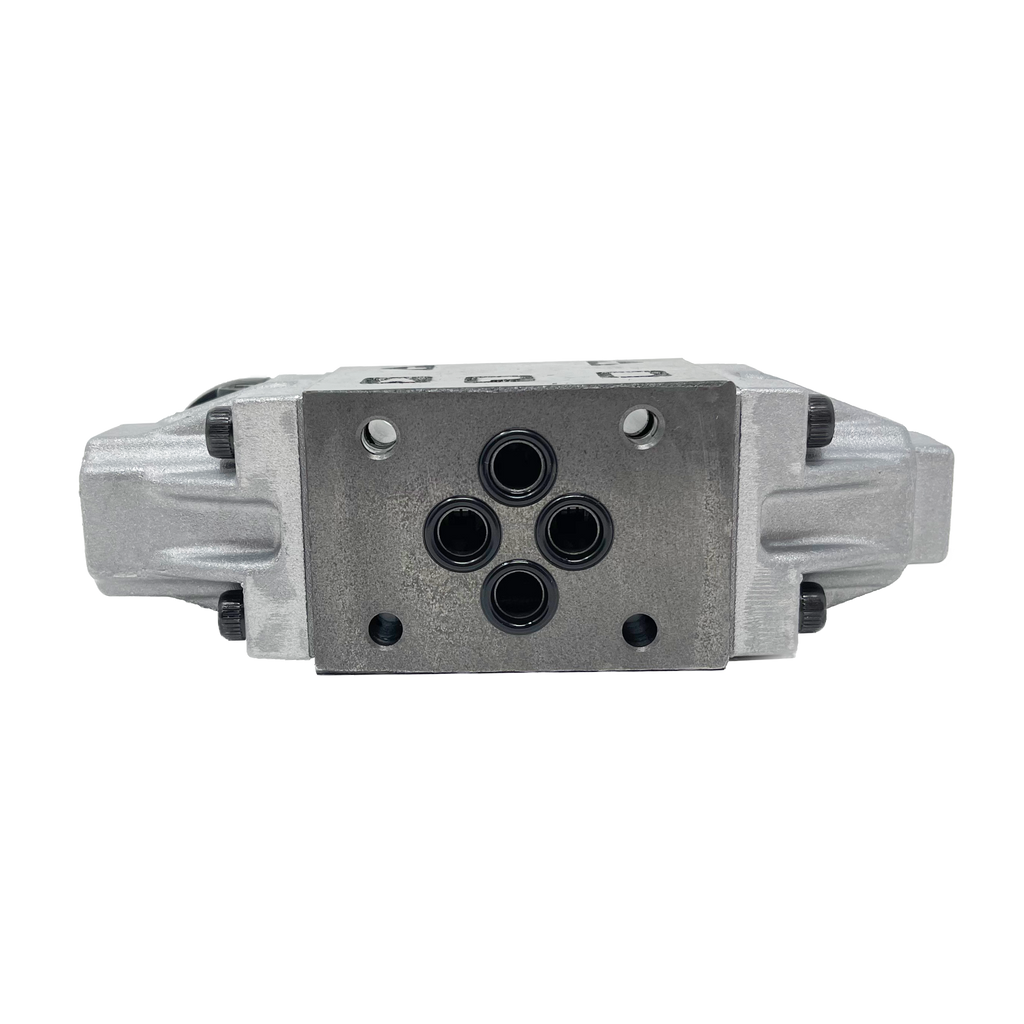

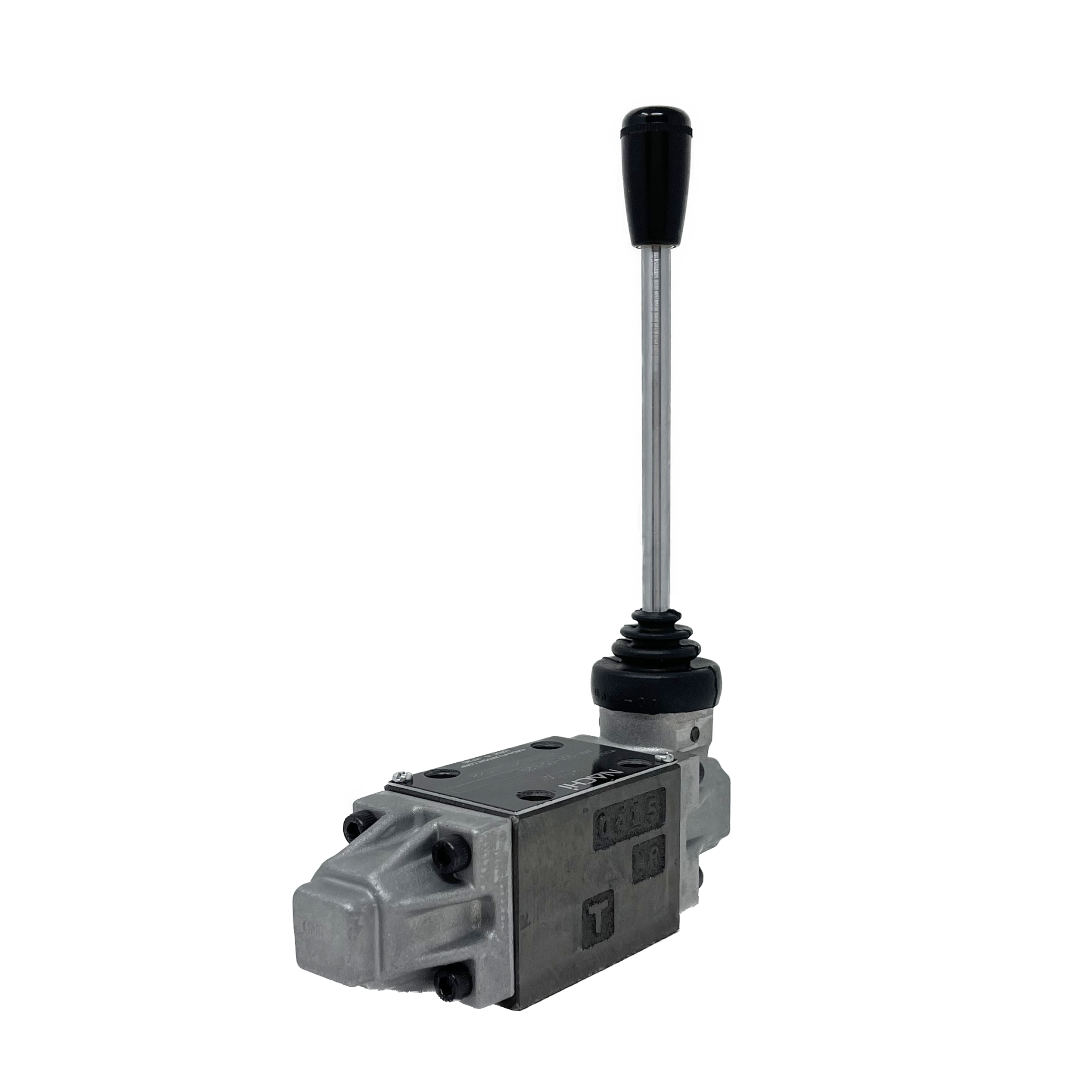

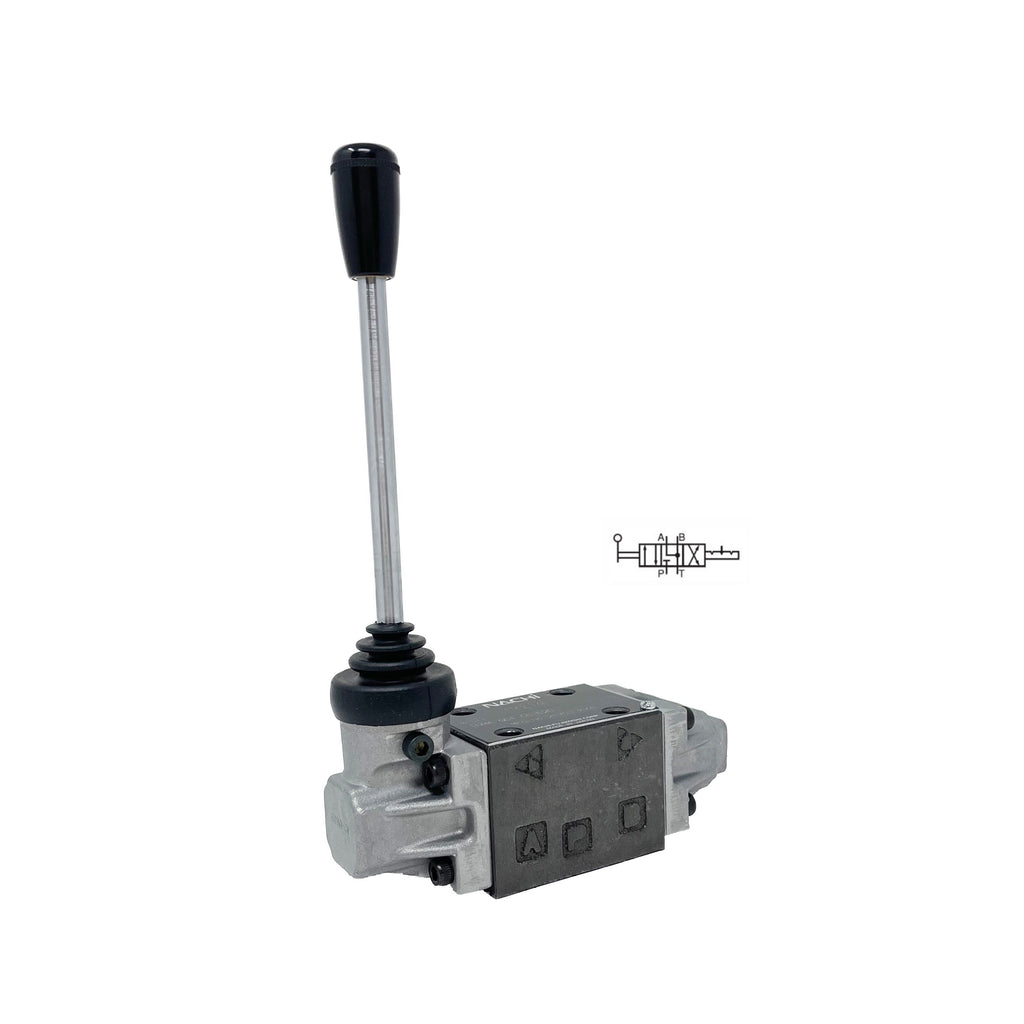

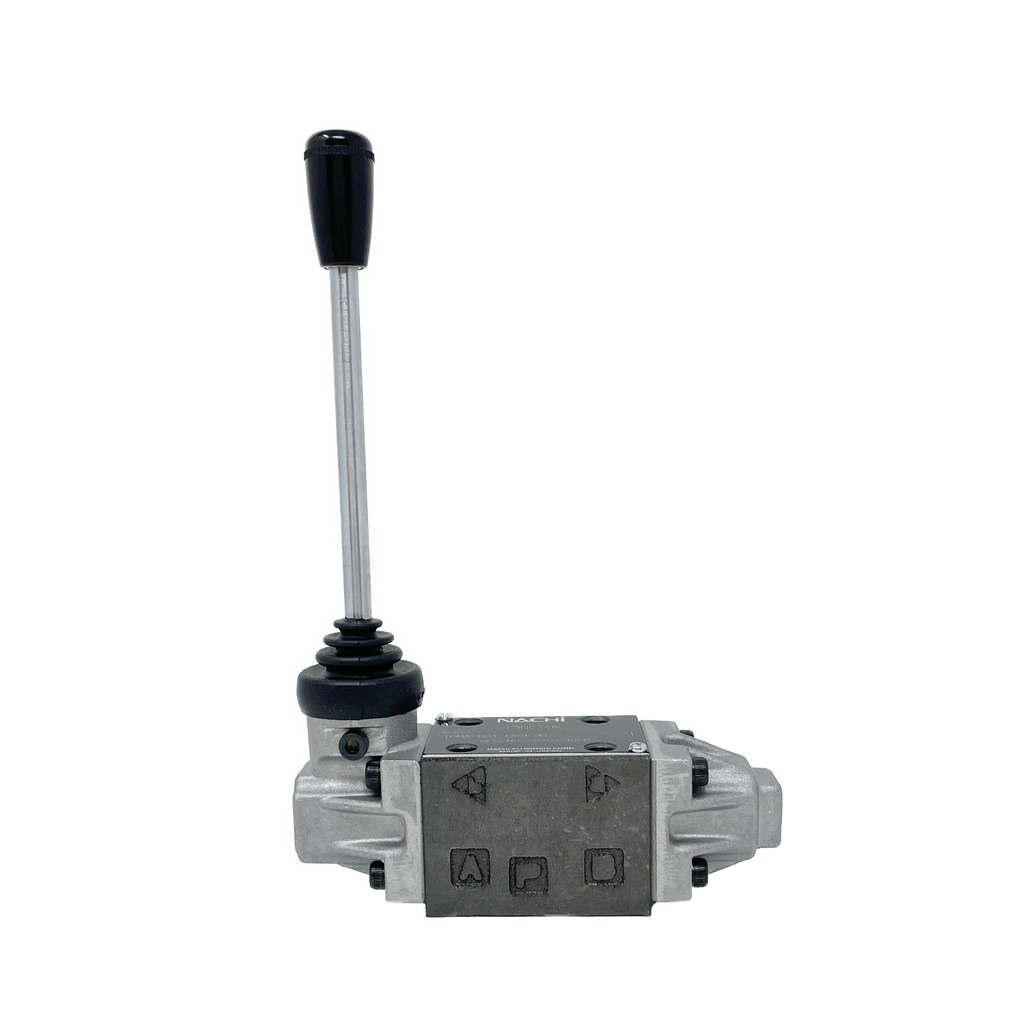

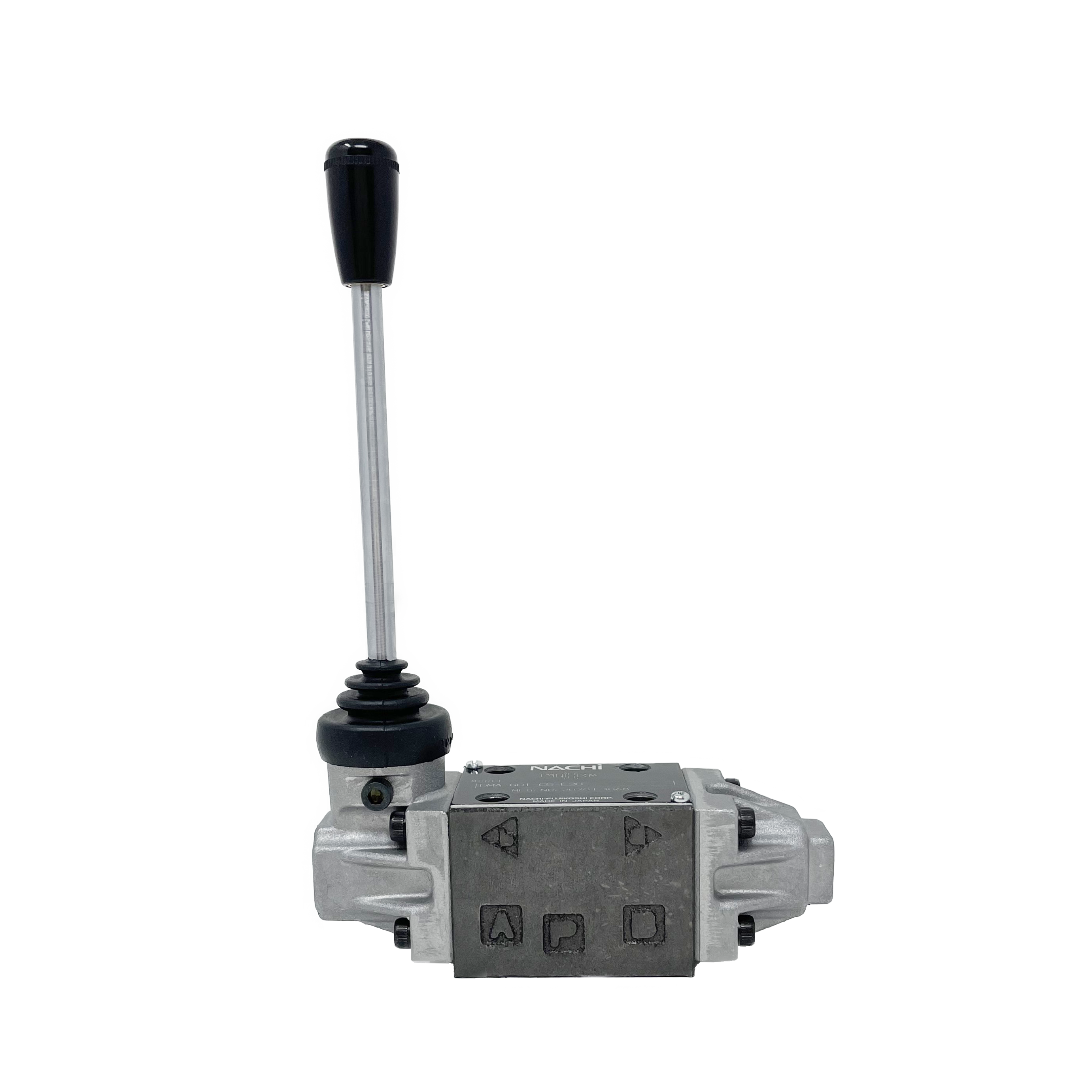

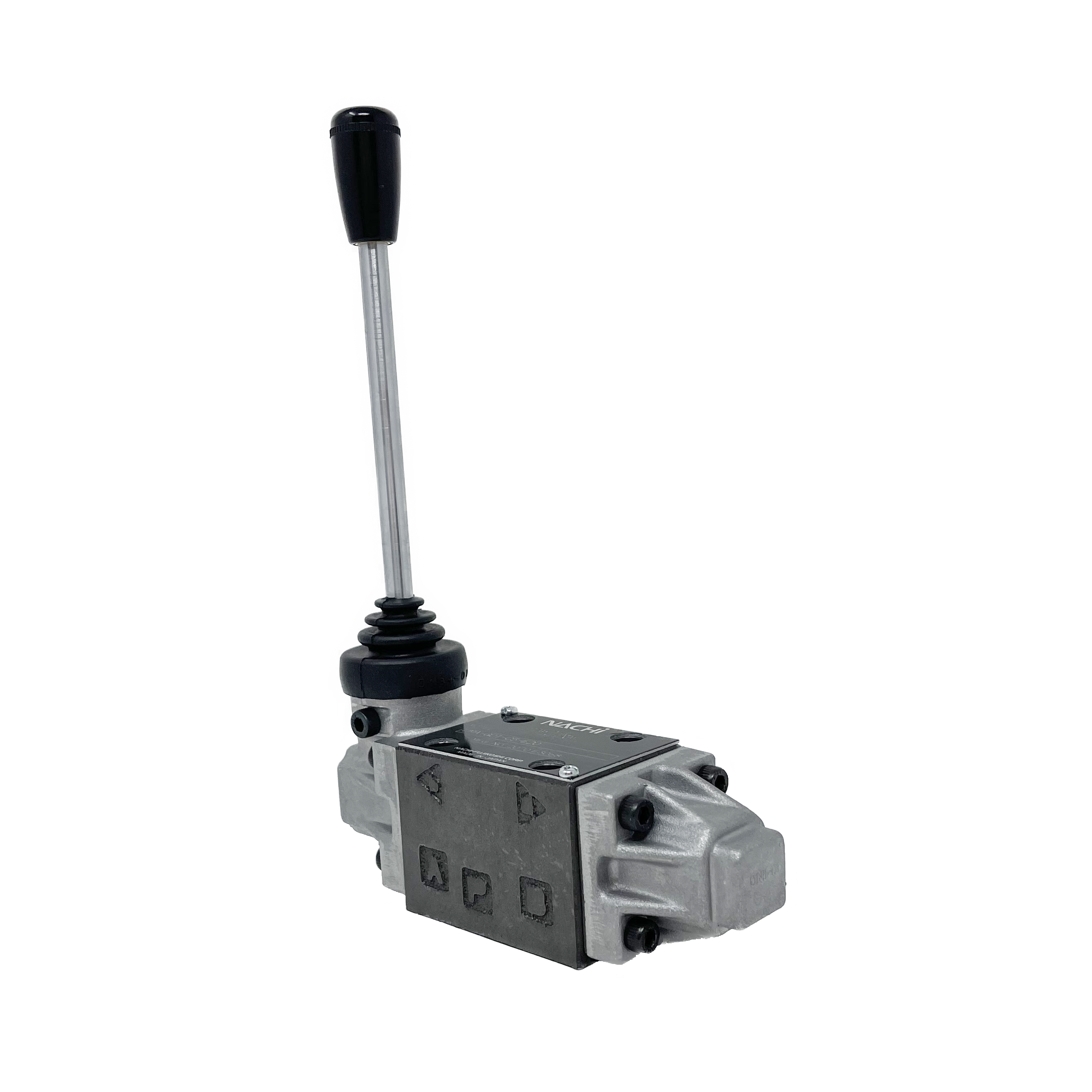

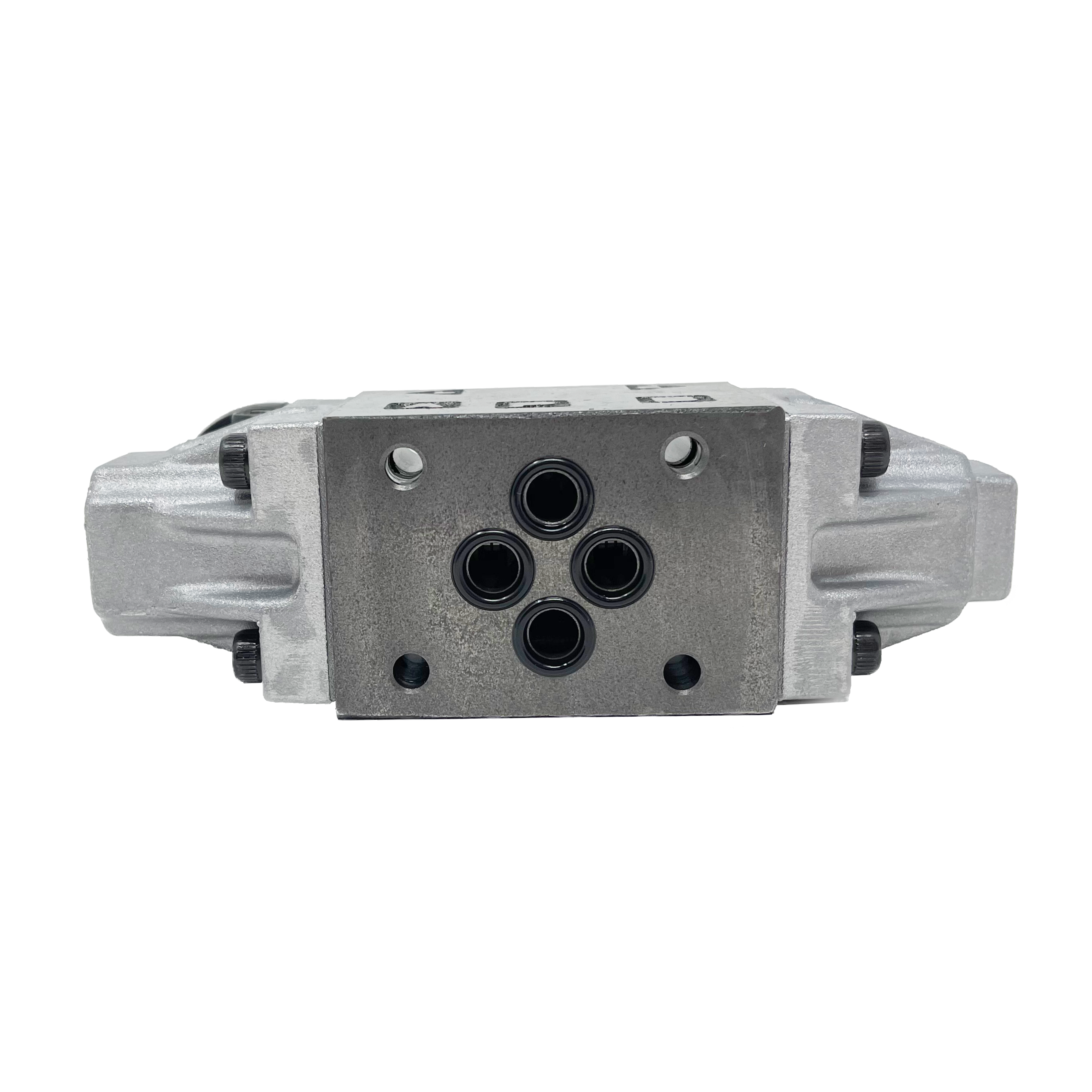

DMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, Detented
DMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, Detented
DMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, Detented
DMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, Detented
DMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, Detented
Roll over image to zoom in Click on image to zoom
DMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, DetentedDMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, DetentedDMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, DetentedDMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, DetentedDMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, Detented

DMA-G01-F6-E20 : Nachi Manual Lever Valve, 4-Way, D03 (NG6), 10.5GPM, 5075psi, P Blocked, A&B to T in Neutral, Detented

Save $85.01
NachiSKU: DMA-G01-F6-E20
Same Day
2
41
Price:
$321.99 $407.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 41
Factory Location Greenwood, Indiana
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D03 (NG6)
Flow Rating 10.5
Pressure Rating 5075
Actuation Type Lever Operated
Spool Configuration Motor Spool, P Blocked, A & B to Tank in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Japan
Height 5.74
Length 1.81
Width 8.74
Weight 4.41

Description

The Nachi DMA is a standard 3-Position, 4-Way, Lever Operated Directional Valve. Since a balanced type valve is used, there is no need for drain piping. Use with backpressures up to 2320psi is possible.
